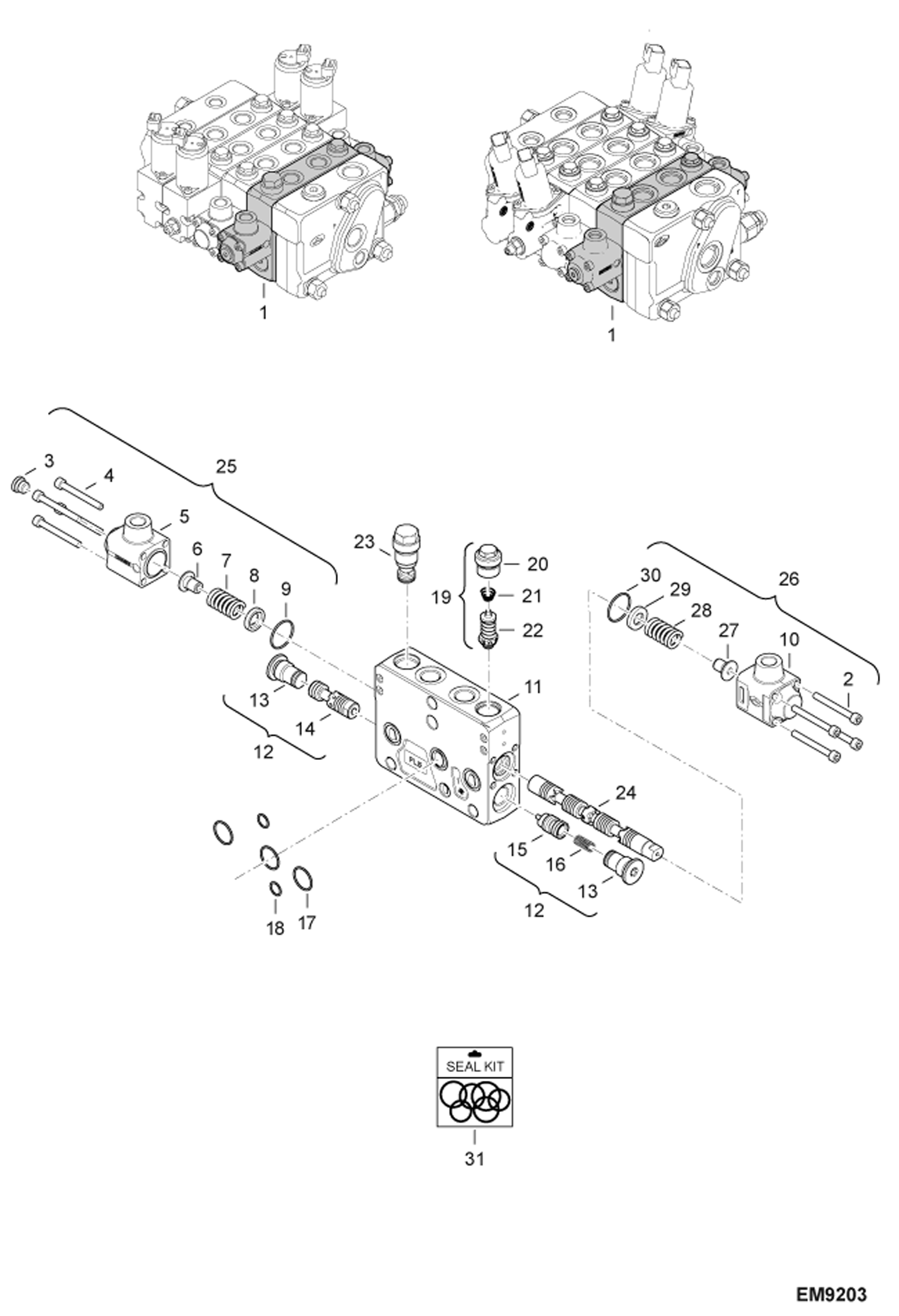

Запчасти Bobcat T2250 CONTROL VALVE SECTION (Lift) (S/N AC1911252 & Above) HYDRAULIC SYSTEM

1

7019155

KIT FULL WORKING SECTION lift - Ref 2-30

2

SCREW NLA - Order Ref. 26

3

PLUG NLA - Order Ref. 25

4

SCREW NLA - Order Ref. 25

5

BODY, CAP NLA - Order Ref. 25

6

BUSHING NLA - Order Ref. 25

7

SPRING NLA - Order Ref. 25

8

BUSHING NLA - Order Ref. 25

9

O-RING NLA - Order Ref. 31

10

BODY, CAP NAP - Order Ref. 26

11

7011908

KIT WORKING SECTION W/Ref. 12-18

12

7011909

KIT COMPENSATOR Ref. 13-16

13

PLUG NLA - Order Ref. 12

14

SPOOL NLA - Order Ref. 12

15

SPOOL NLA - Order Ref. 12

16

SPRING NLA - Order Ref. 12

17

O-RING NLA - Order Ref. 31

18

O-RING NLA - Order Ref. 31

19

6693136

KIT Ref. 20-22

20

VALVE NLA - Order Ref. 19

21

SPRING NLA - Order Ref. 19

22

VALVE NLA - Order Ref. 19

23

VALVE NLA - Order Ref. 19

24

6924972

SPOOL

25

7031596

KIT COMMAND Ref. 3-9

26

7011911

KIT COMMAND CYLINDER ALONE Ref. 2, 10 & 27-30

27

BUSING NLA - Order Ref. 26

28

SPRING NLA - Order Ref. 26

29

BUSHING NLA - Order Ref. 26

30

O-RING NLA - Order Ref. 31

31

7031590

KIT SEAL WORKING SECTION Ref. 9 & 17-18
