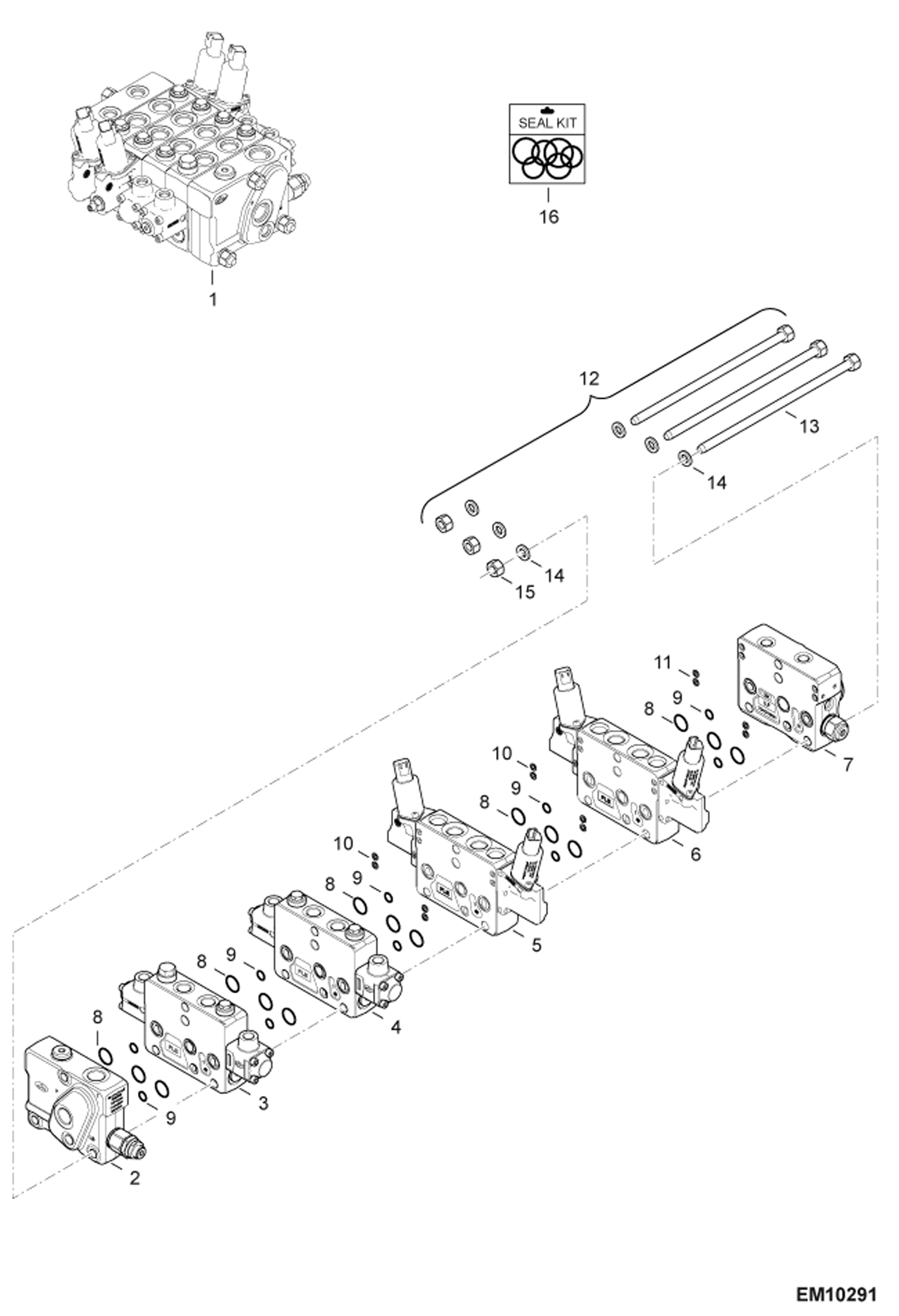

Запчасти Bobcat T2250 CONTROL VALVE S/N AC1911252-15364 HYDRAULIC SYSTEM

1

6936164

DISTRIBUTEUR DPX100 Ref. 2-15

2

7019153

KIT FULL INLET SECTION inlet

3

7019155

KIT FULL WORKING SECTION lift

4

7019156

KIT FULL WORKING SECTION tilt

5

7031592

SECTION WORKING telscope

6

7031594

SECTION WORKING auxiliary

7

7011903

KIT OUTLET SECTION outlet

8

O-RING NLA - Order Ref. 16

9

O-RING NLA - Order Ref. 16

10

O-RING NLA - Order Ref. 16

11

O-RING NLA - Order Ref. 16

12

6921049

TIE ROD KIT Ref. 13-15

13

BOLT NLA - Order Ref. 12

14

WASHER NLA - Order Ref. 12

15

NUT NLA - Order Ref. 12

16

7031598

KIT SEAL Ref. 8-11
