Запчасти Bobcat T2250 CONTROL VALVE SECTION (Telescope Section) (S/N AC1911001 - 11251) HYDRAULIC SYSTEM

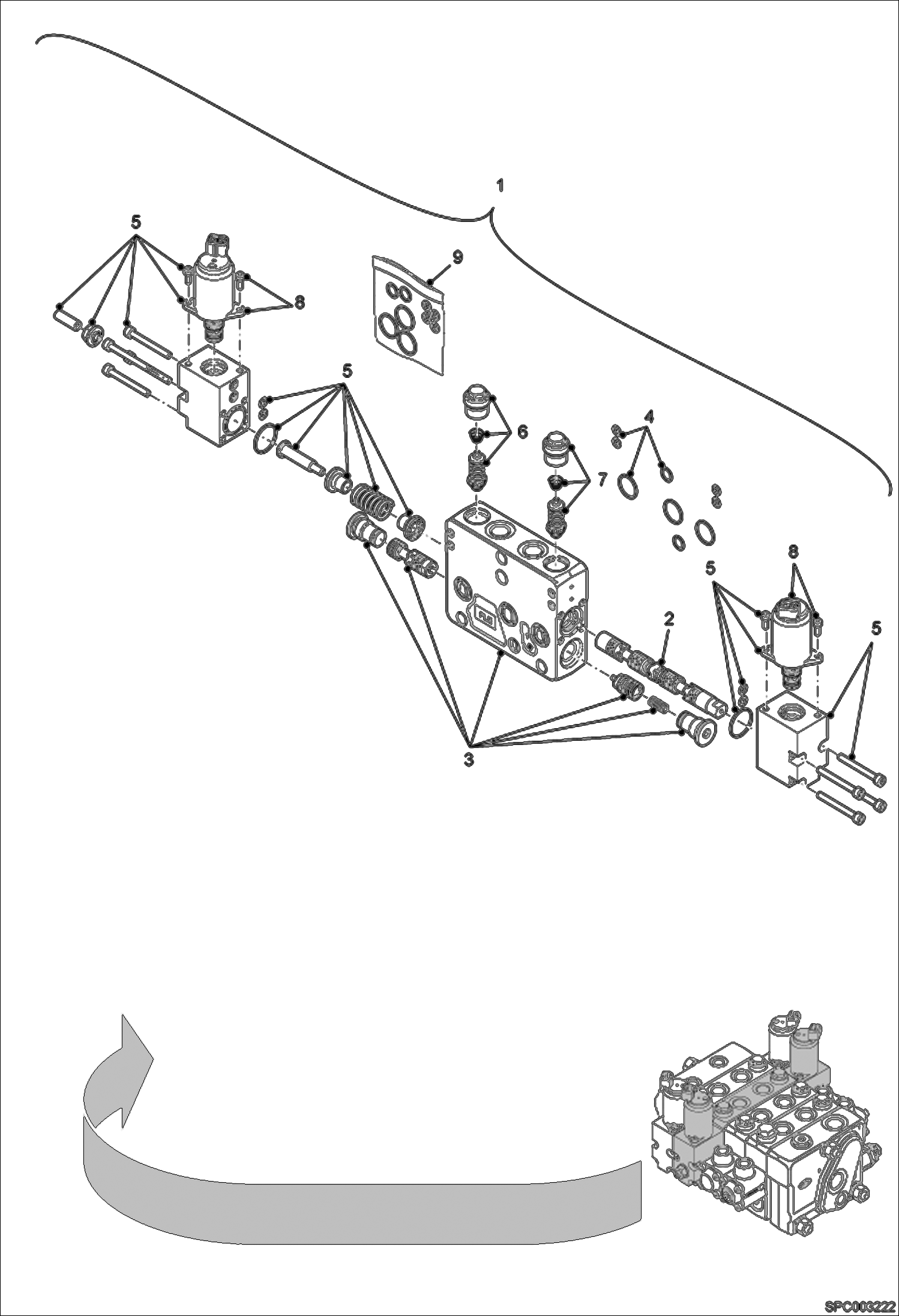

Схема запчастей Bobcat T2250 - CONTROL VALVE SECTION (Telescope Section) (S/N AC1911001 - 11251) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6924976

TELESCOPE SECTION ASSY telescope section

2

6924973

SPOOL

3

6921057

WORKING SECTION KIT

4

6924967

SET OF SEALS (TELESCOPE SECTION)

5

6921047

SPOOL COMMAND WITH COIL

6

6685300

VALVE Was 6921055 - B, D

7

6685301

VALVE Was 6924979 - B

8

6924971

SOLENOID

9

6921509

SET OF SEALS

Выбрано товаров: 9
