Запчасти Bobcat T2250 CONTROL VALVE INSTALLATION (Inlet, Outlet Section) (S/N AC1911001 - 11251) HYDRAULIC SYSTEM

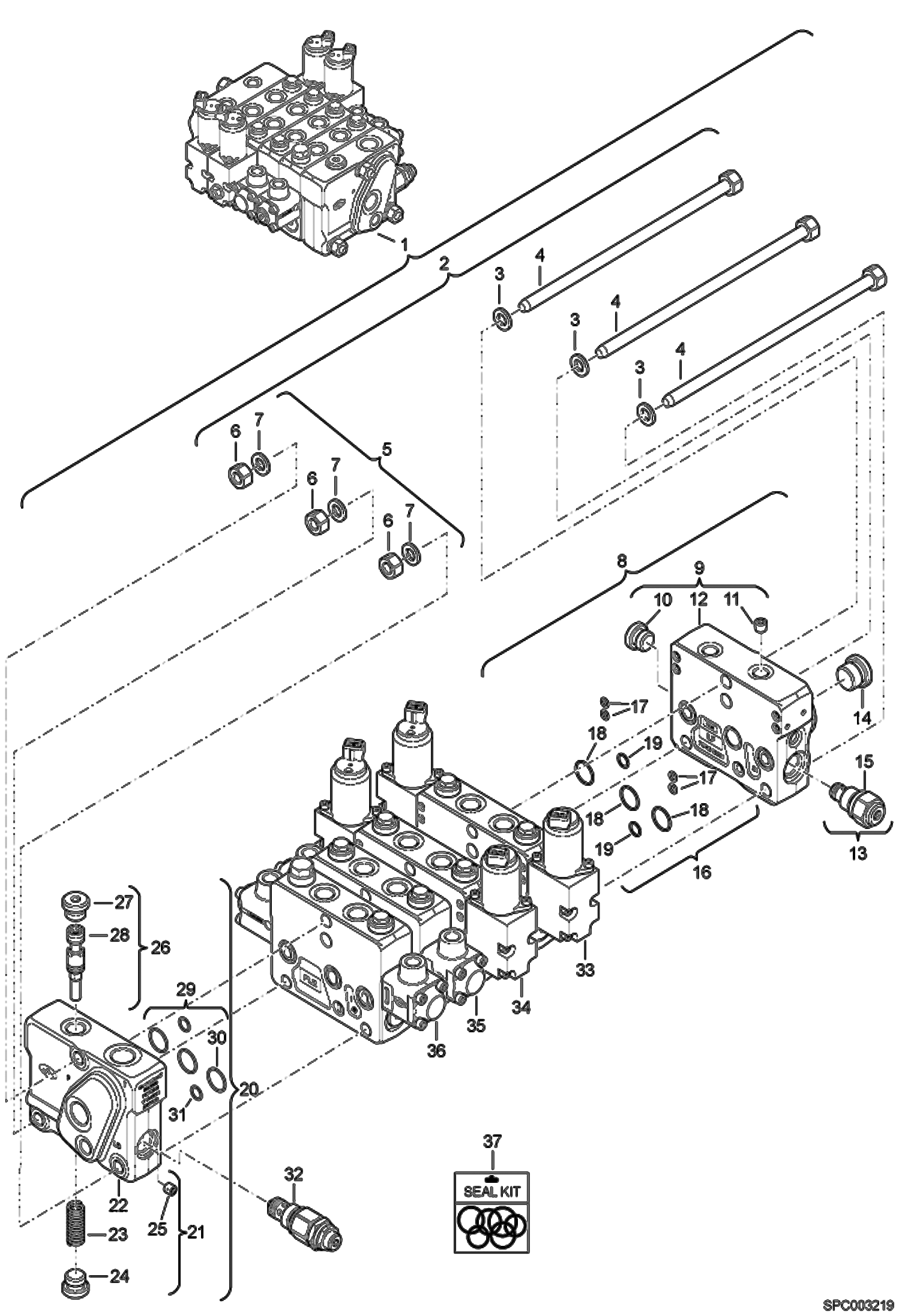

Схема запчастей Bobcat T2250 - CONTROL VALVE INSTALLATION (Inlet, Outlet Section) (S/N AC1911001 - 11251) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6923669

MAIN VALVE W/Ref. 2-36

2

6921049

TIE ROD KIT W/Ref. 3-7

3

WASHER, ELASTIC NAP - Order Ref. 2

4

ROD, TIE + NUT NAP - Order Ref. 2

5

KIT W/Ref. 6-7, NAP - Order Ref. 2

6

NUT NAP - Order Ref. 2

7

WASHER, ELASTIC NAP - Order Ref. 2

8

6924963

OUTLET SECTION ASSY outlet - W/Ref. 9-19

9

6924964

OUTLET SECTION W/Ref. 10-12

10

PLUG NAP - Order Ref. 9

11

PLUG NAP - Order Ref. 9

12

ELEMENT NAP - Order Ref. 9

13

KIT W/Ref. 14-15, NAP - Order Ref. 8

14

PLUG NAP - Order Ref. 13

15

VALVE, FLOW REGULATOR NAP - Order Ref. 13

16

6924970

SET OF SEALS (OUTLET SECTION) W/Ref. 17-19

17

O-RING NAP - Order Ref. 16

18

O-RING NAP - Order Ref. 16

19

O-RING NAP - Order Ref. 16

20

6924961

INLET SECTION ASSY inlet - W/Ref. 21-31

21

6921039

INLET SECTION W/Ref. 22-25

22

ELEMENT NAP - Order Ref. 21

23

SPRING, COMPENSATOR NAP - Order Ref. 21

24

PLUG NAP - Order Ref. 21

25

THROAT NAP - Order Ref. 21

26

KIT W/Ref. 27-28, NAP - Order Ref. 20

27

PLUG

28

SPOOL, COMPENSATOR

29

6924969

SET OF SEALS (INLET SECTION) W/Ref. 30-31

30

O-RING NAP - Order Ref. 29

31

O-RING NAP - Order Ref. 29

32

6921050

VALVE

33

WORKING SECTION See Illustration CONTROL VALVE SECTION/ SPC003223 NAP - order components

34

WORKING SECTION See Illustration CONTROL VALVE SECTION/ SPC003222 NAP - order components

35

WORKING SECTION See Illustration CONTROL VALVE SECTION/ SPC003221 NAP - order components

36

WORKING SECTION See Illustration CONTROL VALVE SECTION/ SPC003220 NAP - order components

37

6921509

SET OF SEALS
