Запчасти Bobcat T2250 HYDRAULIC CIRCUITRY (Control Valve) (S/N AC1911001 - 11251) HYDRAULIC SYSTEM

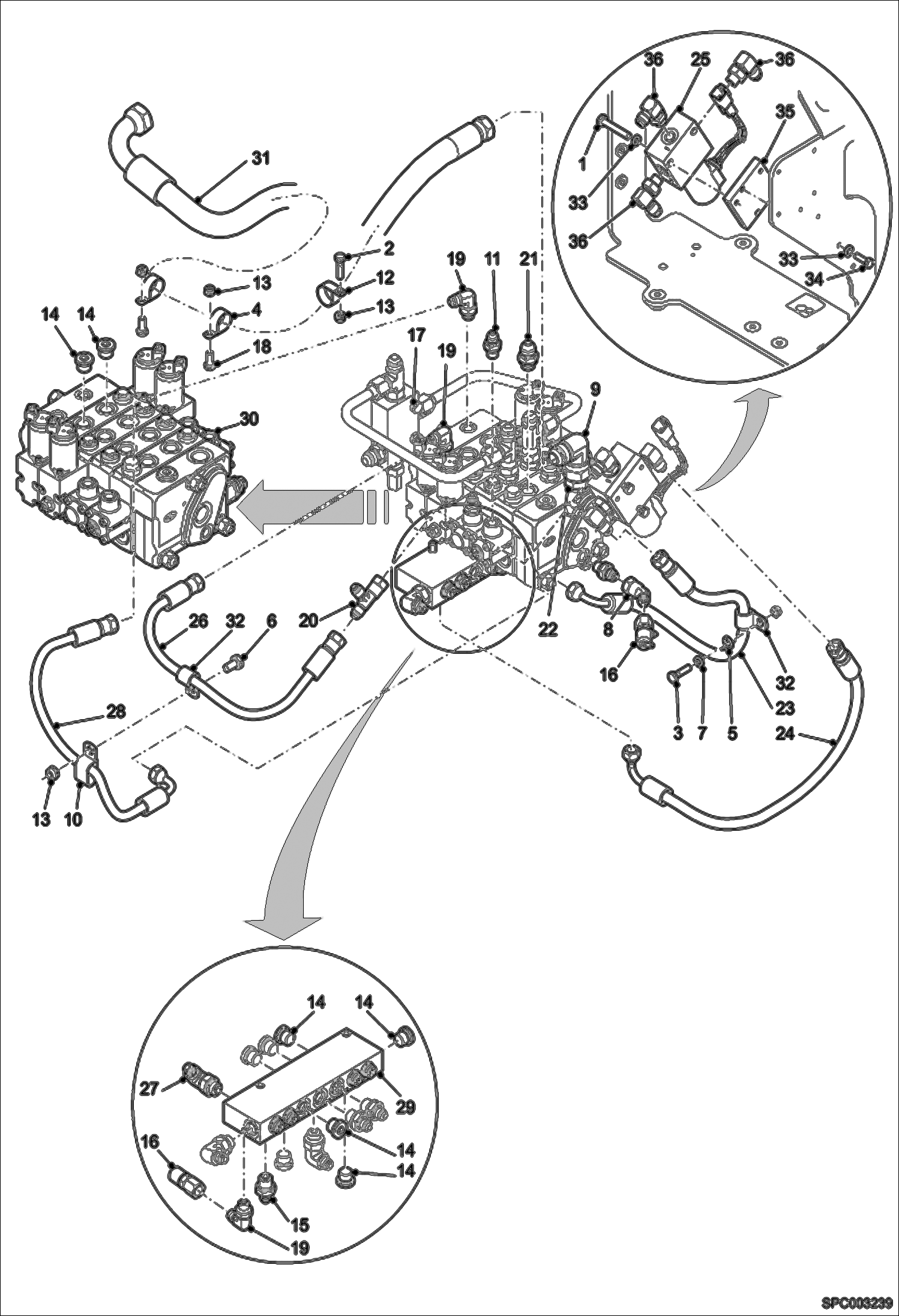

Схема запчастей Bobcat T2250 - HYDRAULIC CIRCUITRY (Control Valve) (S/N AC1911001 - 11251) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

000326-25M

SCREW

2

01598.2

Screw

3

01603.0

Screw

4

30H82

CLAMP INSULATED Was 30H79 - B

5

01698.0

Washer

6

1CM816

BOLT Was 01595.8 - A

7

01720.2

Washer

8

007371-46V

ELBOW UNION

9

008372-14Q

ELBOW

10

31H31

CLIP

11

022375-31Z

UNION

12

30H82

CLAMP INSULATED

13

01681.6

Nut Was 51851.4 - B

14

56029.2

Plug

15

77013.1

Adapter

16

82170.2

Adapter

17

89519.3

Washer

18

1CM820

BOLT Was 01596.6 - B

19

100370-18C

ELBOW PIECE

20

100372-06G

UNION

21

100375-38S

UNION

22

100375-67Z

UNION

23

6909434

HOSE , TJ90 9/16 6,4 TJ 9/16 L 520

24

6909434

HOSE , TJ90 9/16 6,4 TJ 9/16 L 520

25

6925159

VALVE Was 6910208 - B

26

6911106

HOSE

27

6918652

ELBOW UNION

28

6920763

HOSE

29

6921314

HYDARULIC BLOK

30

6923669

MAIN VALVE Was 6921438 - B

31

6921908

HOSE

32

30H38

CLIP

33

94574.1

Washer

34

01590.9

Screw

35

6925408

SPACER

36

17KB0606

FITTING

Выбрано товаров: 36
