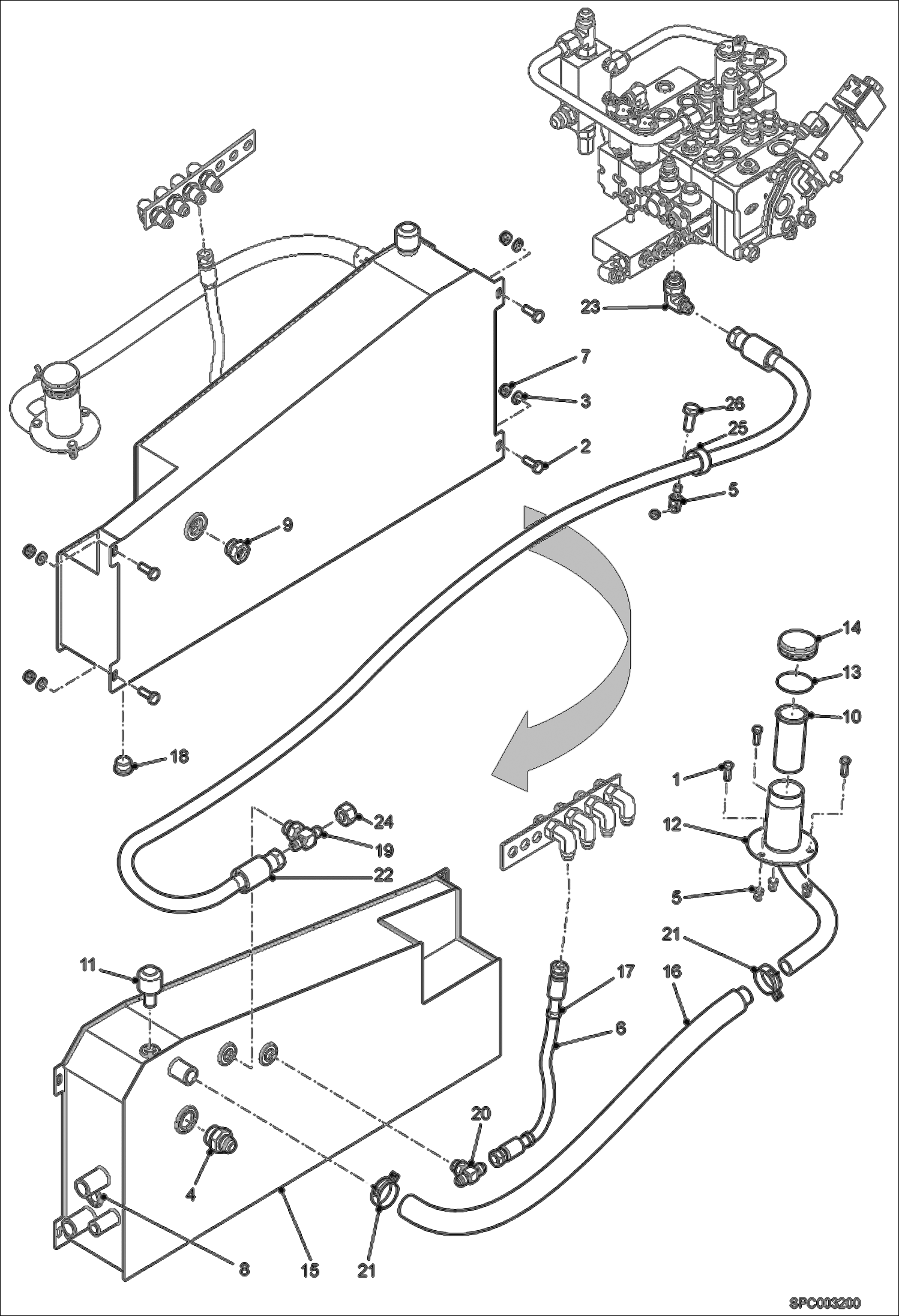

Запчасти Bobcat T2250 HYDRAULIC CIRCUITRY (Oil Tank) (S/N AC1911001 - 11251) HYDRAULIC SYSTEM

1

4CM825

BOLT Was 01597.4 - B

2

01606.3

Screw Was 01605.5

3

01698.0

Washer

4

014375-96E

UNION

5

44334.1

Nut

6

70331.4

Hose

7

100345-09A

NUT

8

24K5

PLUG Was 6727869

9

6665915

GAUGE

10

6913570

STRAINER

11

6917778

BREATHER

12

6920380

INLET OIL

13

6920384

GASKET

14

6920385

CAP

15

6925624

HYDRAULIC TANK NG34 Was 6920503

16

6920860

HOSE

17

IDENTIFICATION, GREEN NLA Was 6922049 - A

18

6922310

PLUG

19

19KB0608

UNION Was 19KB608 - D

20

19KB0808

Fitting Hydraulic Branch Tee Was 19KB808 - D

21

5HM42

HOSECLAMP

22

6921340

HOSE

23

6918652

ELBOW UNION

24

100374-18M

PLUG

25

30H82

CLAMP INSULATED

26

01605.5

Screw
