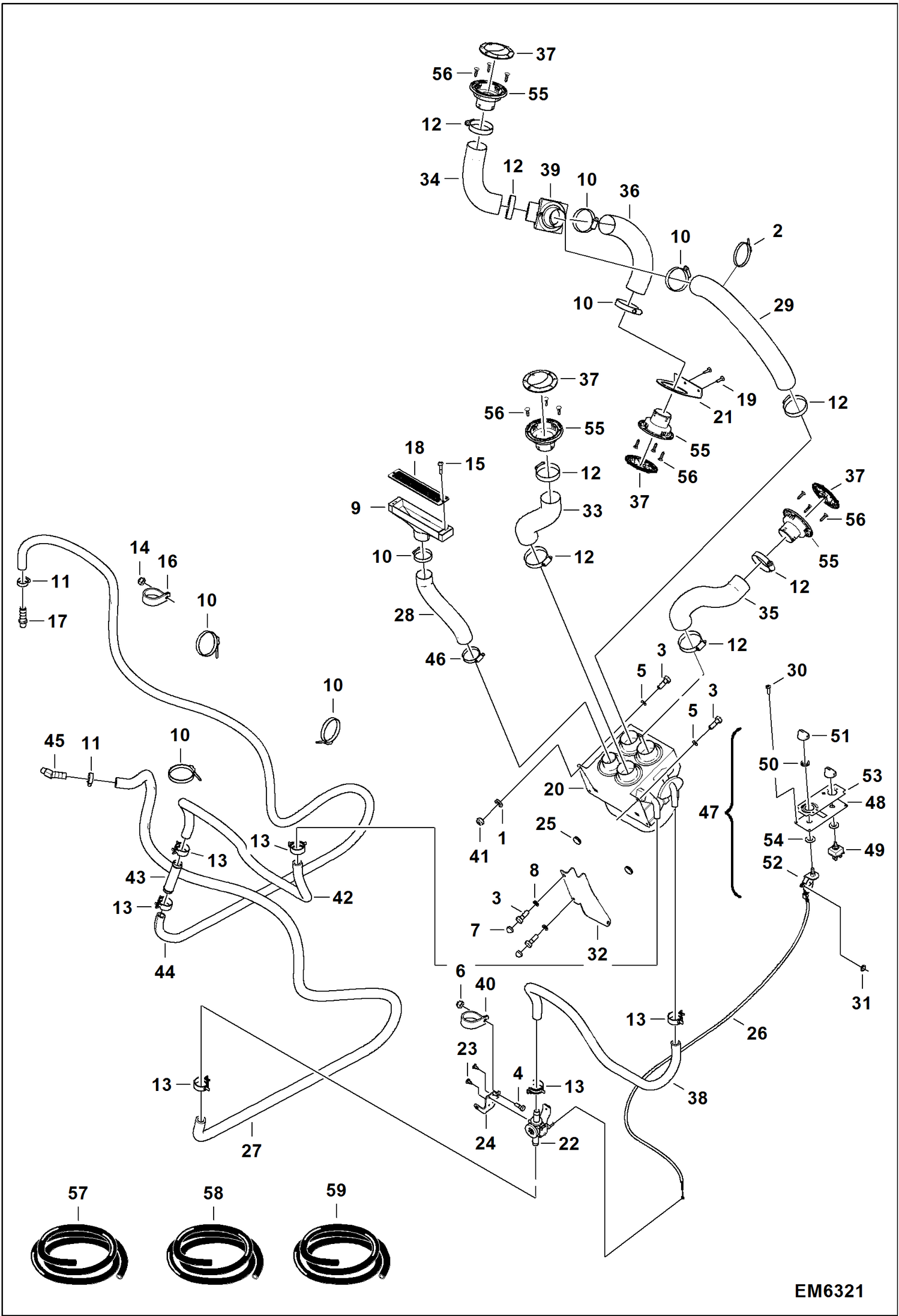

Запчасти Bobcat T2250 HEATING/VENTILATION (S/N AC1913000 & Above) MAIN FRAME

1

000350-01U

WASHER

2

7194074

TIE, CABLE Was 001369-22D - A

3

01590.9

Screw

4

1CM816

BOLT Was 01595.8 - A

5

01717.8

Washer

6

53DM8

NUT Was 51851.4 - A

7

63332.1

Cap

8

94574.1

Washer

9

7217216

LOUVER Was 97208.3 - A

10

6624289

STRAP, TIE

11

100369-39Q

COLLAR

12

42HS30

CLAMP, HOSE Was 100369-80K - A

13

5HM22

CLAMP

14

01681.6

Nut

15

7235000

SCREW Was 6911846 - A

16

30H82

CLAMP INSULATED

17

6924350

CONNECTOR, HOSE STR

18

7217218

LOUVER Was 6924354 - A

19

7228975

SCREW Was 6925206 - A

20

7217346

HEATER See Illustration HEATING/VENTILATION FAN/ EM8370 Was 6927039 - A

21

6932910

SUPPORT, LOUVER Was 6927526 - B

22

7217229

HEATER CONTROL VALVE Was 7010686 - A

23

58G806

SCREW

24

6927707

BRACKET HEATER

25

7233444

GROMMET Was 6927792 - A

26

7217231

CABLE Was 6927819 - A

27

HOSE NAP - Order 2,55 m of 6910694 Was 6927783 - D

28

HOSE, AIR NAP - 250 mm (9.85'') long - Order Ref. 58

29

HOSE, AIR NAP - 450 mm (17.72'') long - Order Ref. 57

30

6927943

SCREW

31

7229422

WASHER Was 6928216 - A

32

6927947

BRACKET

33

HOSE, AIR NAP - 250 mm (9.85'') long - Order Ref. 57

34

HOSE, AIR NAP - 250 mm (9.85'') long - Order Ref. 57

35

HOSE, AIR NAP - 350 mm (13.78'') long - Order Ref. 57

36

HOSE, AIR NAP - 350 mm (13.78'') long - Order Ref. 57

37

7217217

LOUVER Was 6932754 - A

38

HOSE, HEATING NAP - 790 mm (31.1'') long - Order Ref. 59 Was 6927948 - D

39

7217354

FITTING, TEE Was 6932533 - A

40

30H49

CLAMP

41

100345-06W

NUT

42

HOSE, AIR NAP - 2.78 m (109.4'') long - Order Ref. 59

43

7222991

PIPE Was 6932230 - A

44

HOSE NAP - Order 2,78 m of 6910694 Was 6932231 - D

45

6924351

CONNECTOR, HOSE 45

46

42HS20

CLAMP, HOSE Was 01280.7 - A

47

7217350

PANEL, CONTROL W/Ref. 48-54 Was 6927706 - A

48

7015437

CONTROL PLATE

49

6675176

SWITCH

50

7015436

JAM NUT

51

6675177

KNOB

52

6676622

CONTROL

53

7015435

OVERPLAY

54

7010693

WASHER

55

7217215

LOUVER Was 6932755 - A

56

57G606

SCREW

57

7231136

HOSE AIR D50 PVC /METER bulk - sold per foot - Was 6927756 - A

58

7231137

HOSE AIR D40 PVC /METER bulk - sold per foot - Was 6927757 - A

59

6910694

HOSE, BULK/METER bulk - sold per foot
