Запчасти Bobcat T2250 BOB-TACH MANUAL LOCK MAIN FRAME

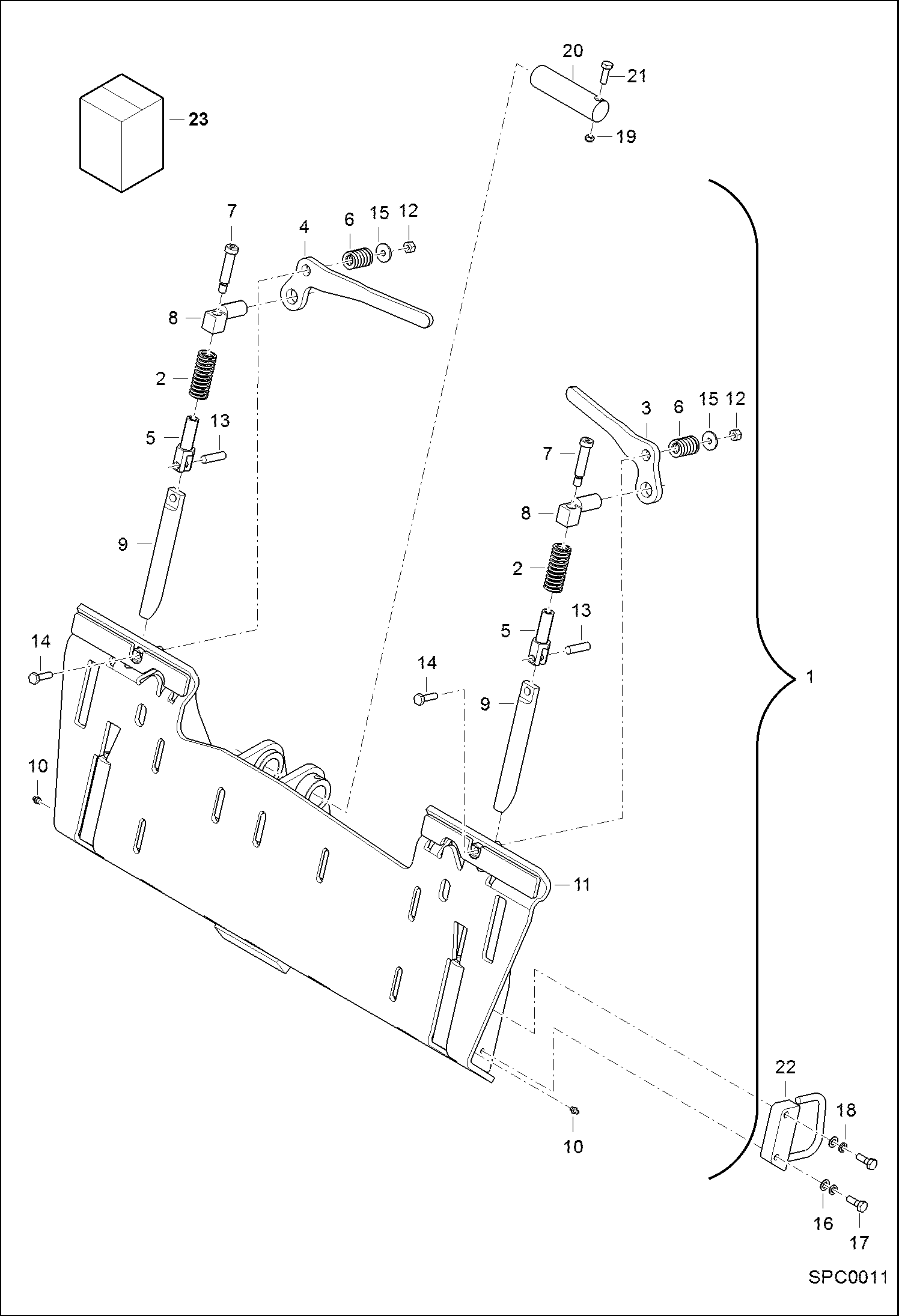

Схема запчастей Bobcat T2250 - BOB-TACH MANUAL LOCK MAIN FRAME

Артикул

Название

Примечание

Количество

1

7154883

BOBTACH GROUP W/Ref. 2-15

2

6578253

SPRING, COMPRESSION

3

6702903

LEVER, BOB-TACH LH

4

6702904

LEVER, BOB-TACH RH

5

6704248

PIVOT, WEDGE

6

6713040

SPRING

7

6728473

BOLT, SHOULDER

8

6731119

PIVOT, WEDGE

9

6737191

WEDGE

10

01775.6

Grease Nipple Was 7154951 - C

11

BOB-TACH, W/A NSS - Order Ref. 1 Was 7154958 - D

12

7166433

LOCK NUT Was 100345-09A - B

13

14J5032

PIN, STRAIGHT

14

7CM10100

SCREW HEX Was 65397.2 - B

15

619021

WASHER, 5

16

01698.0

Washer

17

27833.3

SCREW

18

7225260

WASHER Was 89516.9 - A

19

100345-09A

NUT

20

6920717

SPINDLE

21

01523.0

SCREW

22

6923816

D RING W/A

Выбрано товаров: 22
