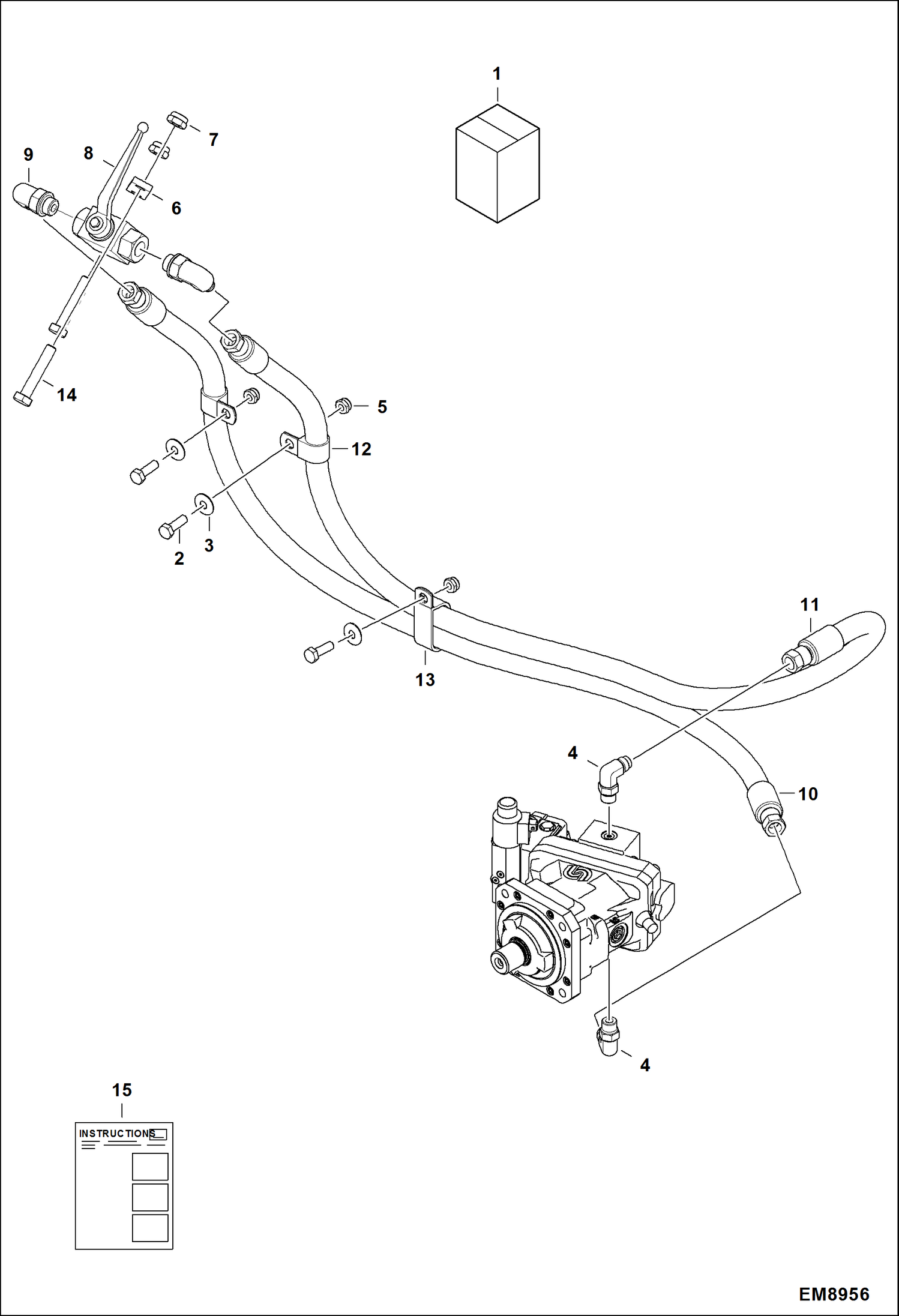

Запчасти Bobcat T2250 HYDROSTATIC CIRCUITRY (Transmission Lock Override Kit) ACCESSORIES & OPTIONS

1

6924737

KIT, TRANSMISSION LOCK OVERRIDE Ref. 2-15

2

4CM825

BOLT Was 01597.4 - B

3

000350-02V

WASHER

4

010370-38Q

UNION

5

53DM8

NUT Was 51851.4 - A

6

77014.9

Plate

7

100345-09A

NUT

8

100378-03F

SHUTOFF auxiliary pressure release

9

6918652

ELBOW UNION

10

6922318

HOSE

11

6922318

HOSE

12

30H46

CLIP

13

31H46

CLAMP

14

01519.8

Screw

15

6986883

INSTRUCTION
