Запчасти Bobcat T2250 HYDRAULIC CIRCUITRY (Rear Hydraulic Hook) ACCESSORIES & OPTIONS

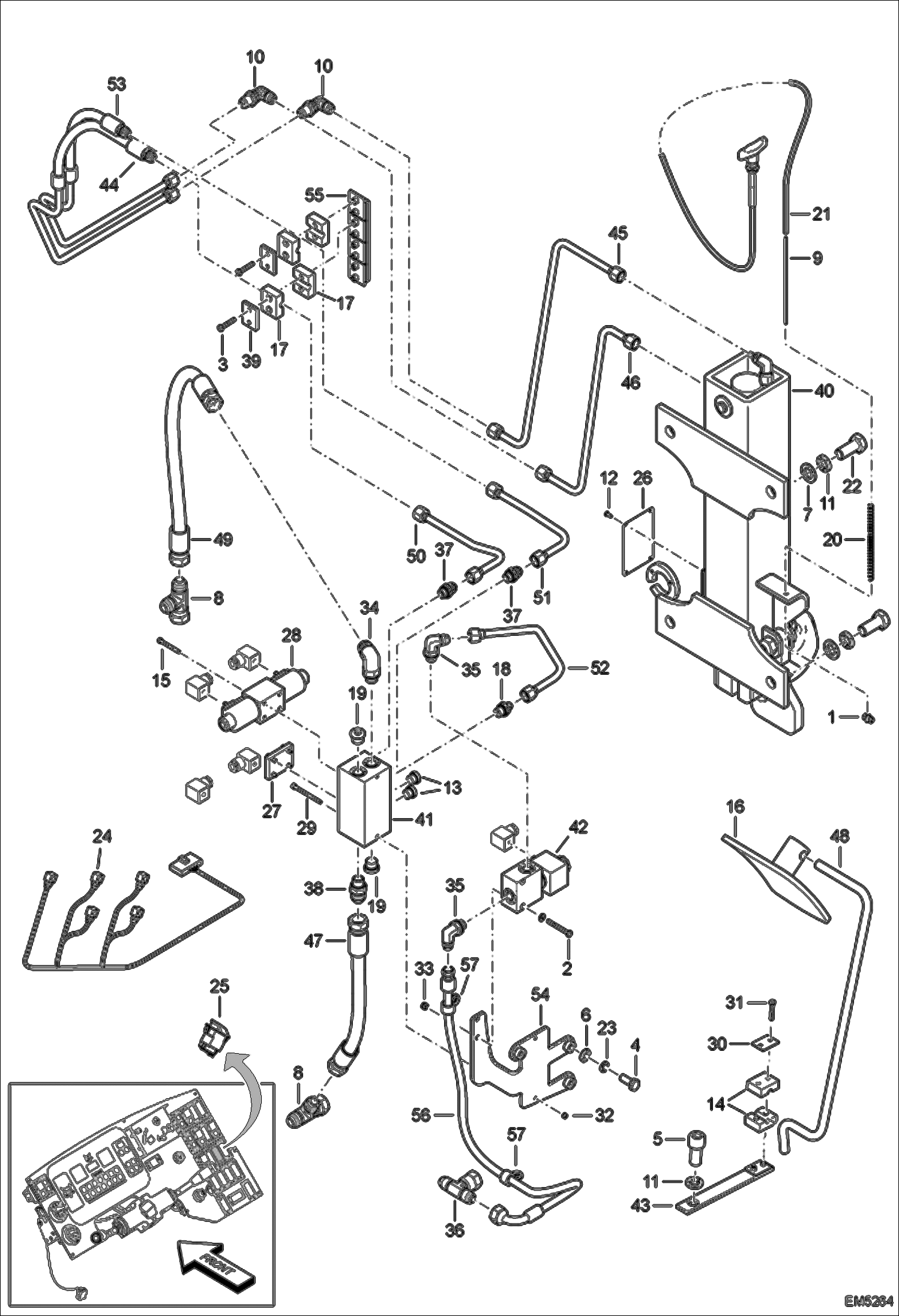

Схема запчастей Bobcat T2250 - HYDRAULIC CIRCUITRY (Rear Hydraulic Hook) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7231142

STOP, CABLE Was 000368-80M - A

2

001338-08T

SCREW Was 000326-35X - B

3

01593.3

Screw Was 100338-23F - B

4

01612.1

Screw

5

01620.4

Screw

6

01699.8

Washer

7

01703.8

RONDELLE

8

008372-34M

UNION

9

7231579

STOP Was 009368-06S - A

10

010370-87T

ELBOW PIECE

11

15323.9

Washer

12

43824.2

Rivet

13

56029.2

Plug

14

7179623

SLEEVE Was 61358.8 - A

15

62153.2

SCREW

16

63860.1

Mirror

17

70687.9

COLLAR Was 100369-18T - B

18

77013.1

Adapter

19

78743.2

Drain plug

20

79285.3

Spring

21

84468.8

Cable

22

84630.3

Screw

23

89517.7

Washer

24

96589.7

Wire harness

25

96598.8

Switch (proportional)

26

PLATE, CE NAP Was 98167.0 - D

27

98353.6

Plate

28

98360.1

Union

29

98897.2

VIS Was 68566.9 - B

30

100228-57K

COVER

31

100338-23F

SCREW

32

100345-05V

NUT

33

100345-06W

NUT

34

100370-05N

ELBOW UNION

35

100370-18C

ELBOW PIECE

36

100372-23A

UNION

37

100375-38S

UNION

38

100375-67Z

UNION

39

101228-70U

PLATE, PROTECTION Was 100212-53R - B

40

6910389

HOOK ASMBLY

41

6911079

HYDRAULIC BLOCK

42

6911845

SOLENOID 2-2

43

6918252

SUPPORT

44

6920365

HOSE - PIPE

45

6920367

PIPE

46

6920368

PIPE

47

6920374

HOSE

48

6921672

PIPE, HYDRAULIC

49

6923430

HOSE

50

6926447

TUBELINE, HYD Was 6921674 - B

51

6926448

TUBELINE, HYD Was 6921675 - B

52

6926451

TUBELINE, HYD Was 6921397 - B

53

6926455

HOSE, HYD Was 6920366 - B

54

6926475

HOLDER, REAR OPTION Was 6920595 - B

55

6926476

BRACKET, CLAMP Was 100281-55T - B

56

6926577

HOSE, HYD Was 6913657 - B

57

30H60

CLIP

Выбрано товаров: 57
