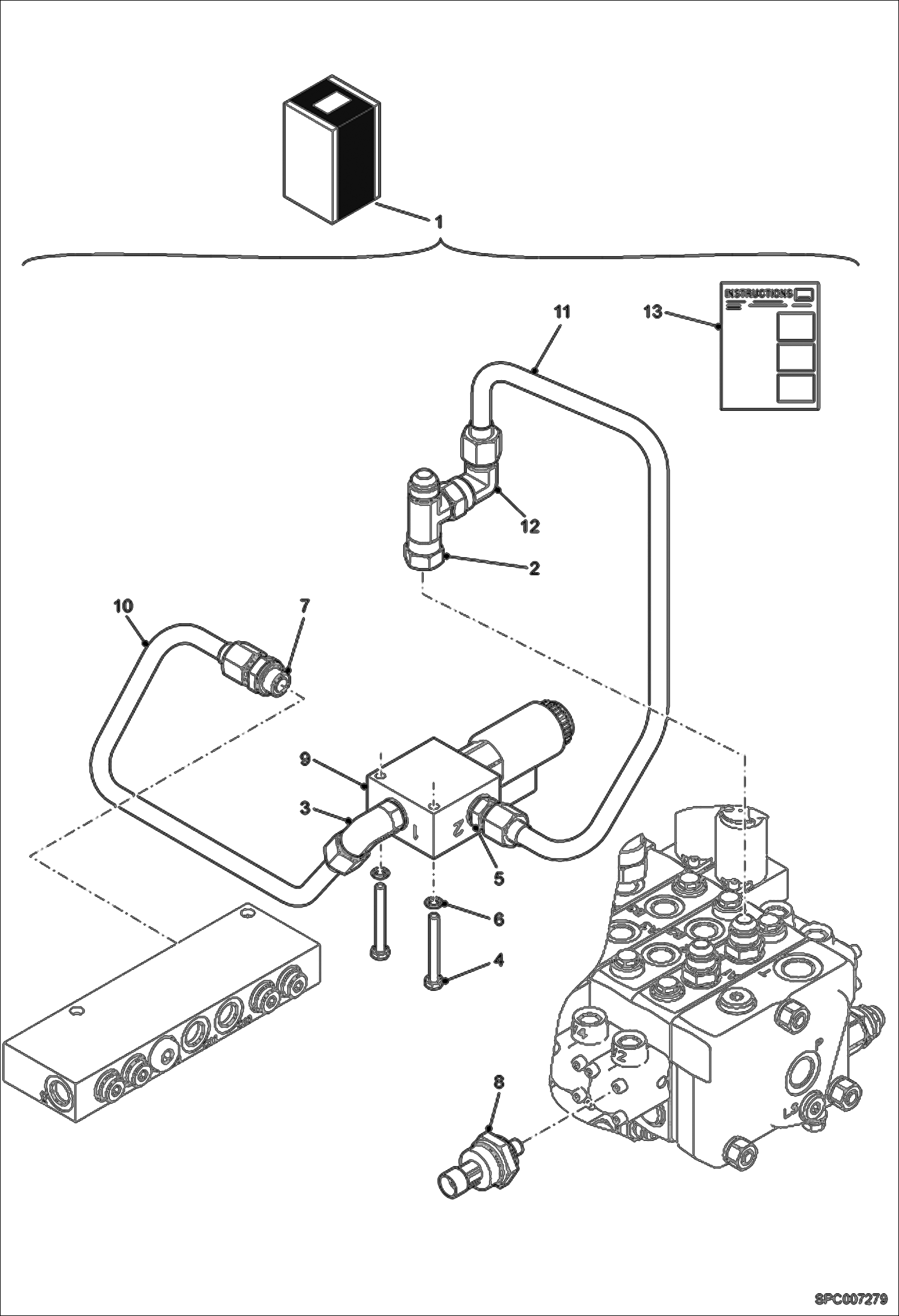

Запчасти Bobcat T2250 HYDRAULIC CIRCUITRY (Boom Float Kit) ACCESSORIES & OPTIONS

1

6924739

KIT W/Ref. 2-13

2

008372-02C

UNION

3

015370-13R

UNION

4

1CM650

SCREW Was 48829.6 - A

5

65723.9

Union

6

94574.1

Washer

7

100375-38S

UNION

8

6692934

PRESSURE SWITCH

9

6917734

BLOCK VALVE

10

6922313

PIPE

11

6922407

PIPE

12

008372-01B

ELBOW PIECE

13

6986886

INSTRUCTION
