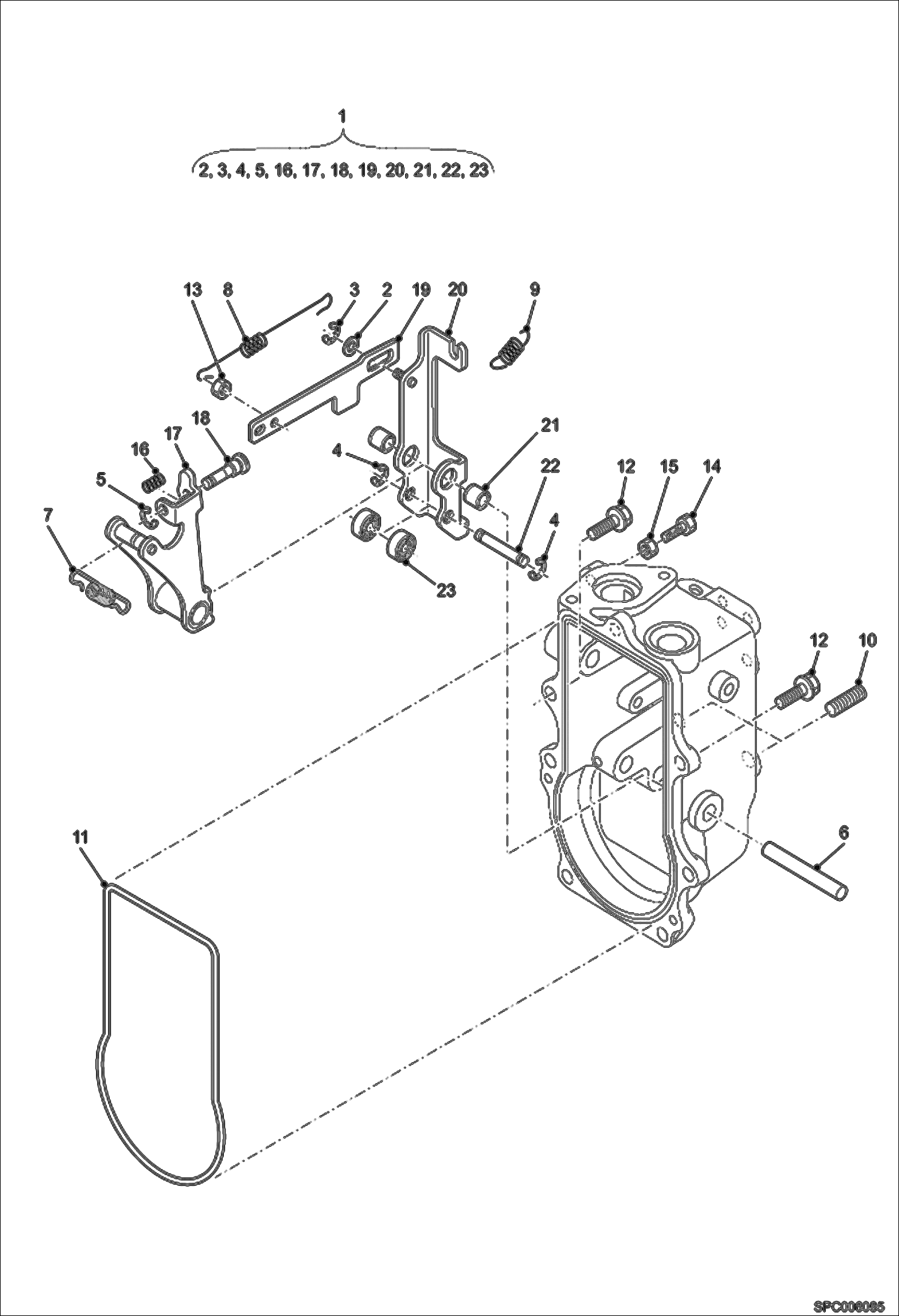

Запчасти Bobcat T2250 FORK LEVER (GOVERNOR) POWER UNIT

1

6685951

LEVER W/Ref. 2-5 & 16-23

2

6680820

WASHER

3

6680821

SNAP RING external

4

6680822

SNAP RING external

5

6680823

SNAP RING external

6

6689318

SHAFT, FORK LEVER

7

6680825

SPRING

8

6680826

SPRING

9

6680827

SPRING

10

6680828

STUD

11

6680829

GASKET

12

6680830

BOLT

13

6685952

NUT

14

6652712

STOPPER Was 6680834 - A

15

1DM6

NUT Was 6969802 - A

16

SPRING NAP - Order Ref. 1

17

BRACKET NAP - Order Ref. 1

18

PIN NAP - Order Ref. 1

19

BRACKET NAP - Order Ref. 1

20

BRACKET NAP - Order Ref. 1

21

BEARING NAP - Order Ref. 1

22

SPINDLE NAP - Order Ref. 1

23

BEARING NAP - Order Ref. 1
