HYDRAULIC INSTALLATION - 4 IN 1 SHOVEL

Запчасти Bobcat WL440 HYDRAULIC INSTALLATION - 4 IN 1 SHOVEL HYDRAULIC SYSTEM

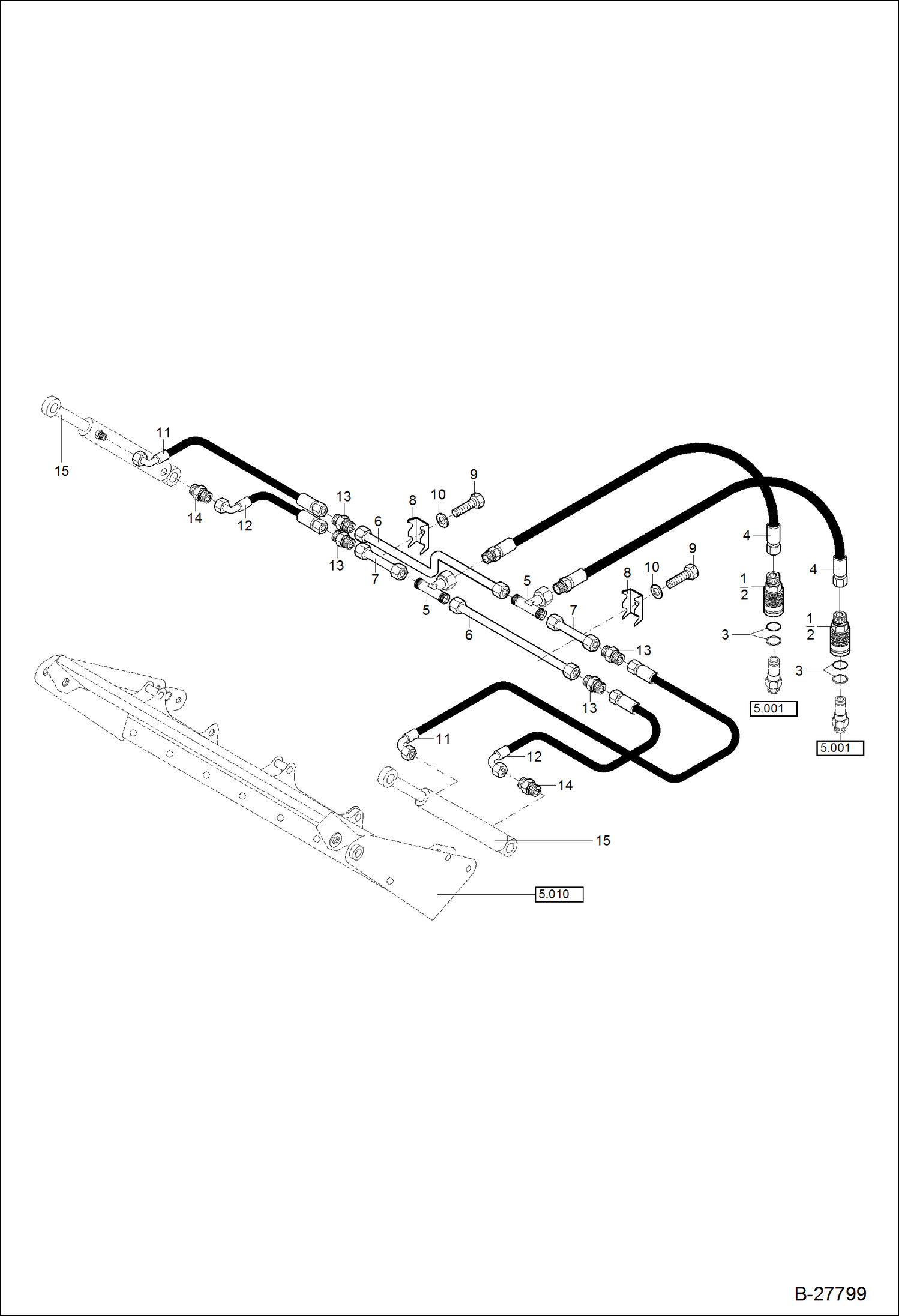

Схема запчастей Bobcat WL440 - HYDRAULIC INSTALLATION - 4 IN 1 SHOVEL HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5000080003

COUPLING SOCKET W/Ref. 3

2

5000080004

DUST CAP

3

5000080006

SEAL KIT

4

4260047382

HOSE

5

1919000585

FITTING

6

0323405005

TUBING

7

0360305007

TUBE

8

0271409049

PIPE CLIP

9

1008707618

BOLT M 8X30

10

1290707018

WASHER 8,4

11

4260045374

HOSE

12

4260077374

HOSE

13

1915000419

FITTING

14

1915000139

FITTING

15

CYLINDER, 4 IN 1 SHOVEL See Illustration HYDRAULIC CYLINDER - 4 IN 1 SHOVEL Z 70/35/ B27811
