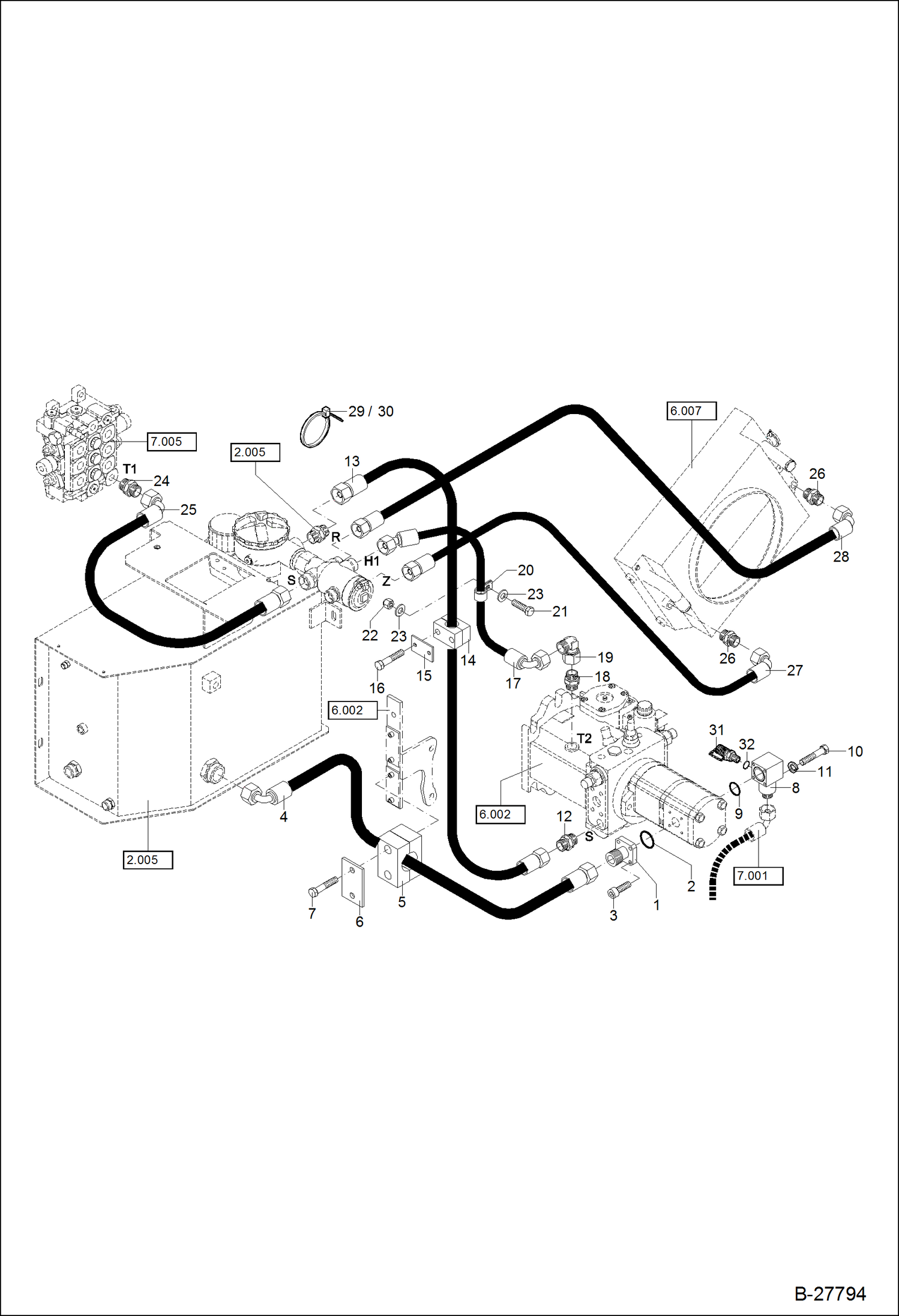

Запчасти Bobcat WL440 HYDRAULIC INSTALLATION-LOADING EQUIPMENT 2 HYDRAULIC SYSTEM

1

5260310277

FLANGE CONNECTION

2

1970956525

O-RING 32X2,5

3

1045707318

BOLT M 8X25

4

4132136217

HOSE

5

5660199644

HOSE CLIP

6

5660200160

COVER PLATE

7

1007707714

BOLT M 6X70

8

5260310275

FLANGE CONNECTION W/Ref. 31

9

1970956625

O-RING 26X2,5X31

10

1007707414

BOLT M 6X55

11

1321707014

SPRING WASHER B 6

12

1915060568

FITTING

13

4125135507

HOSE

14

5660199805

HOSE CLIP

15

5660200150

COVER M 6X60 S=3

16

1007707514

BOLT M 6X60

17

4120101406

HOSE

18

1915060667

FITTING

19

1924060156

ELBOW FITTING

20

5000210410

HOSE CLIP

21

1008707018

BOLT M 8X20

22

1212251011

NUT M 8

23

1343707057

WASHER 8,4

24

5260310273

FITTING

25

4125088156

HOSE

26

1915060567

FITTING

27

4120129156

HOSE

28

4120100156

HOSE

29

5653093560

BINDER 4,8X200

30

5350650280

BINDER 7,8X290

31

5066234000

TEST FITTING W/Ref. 32

32

1912000676

SEAL RING
