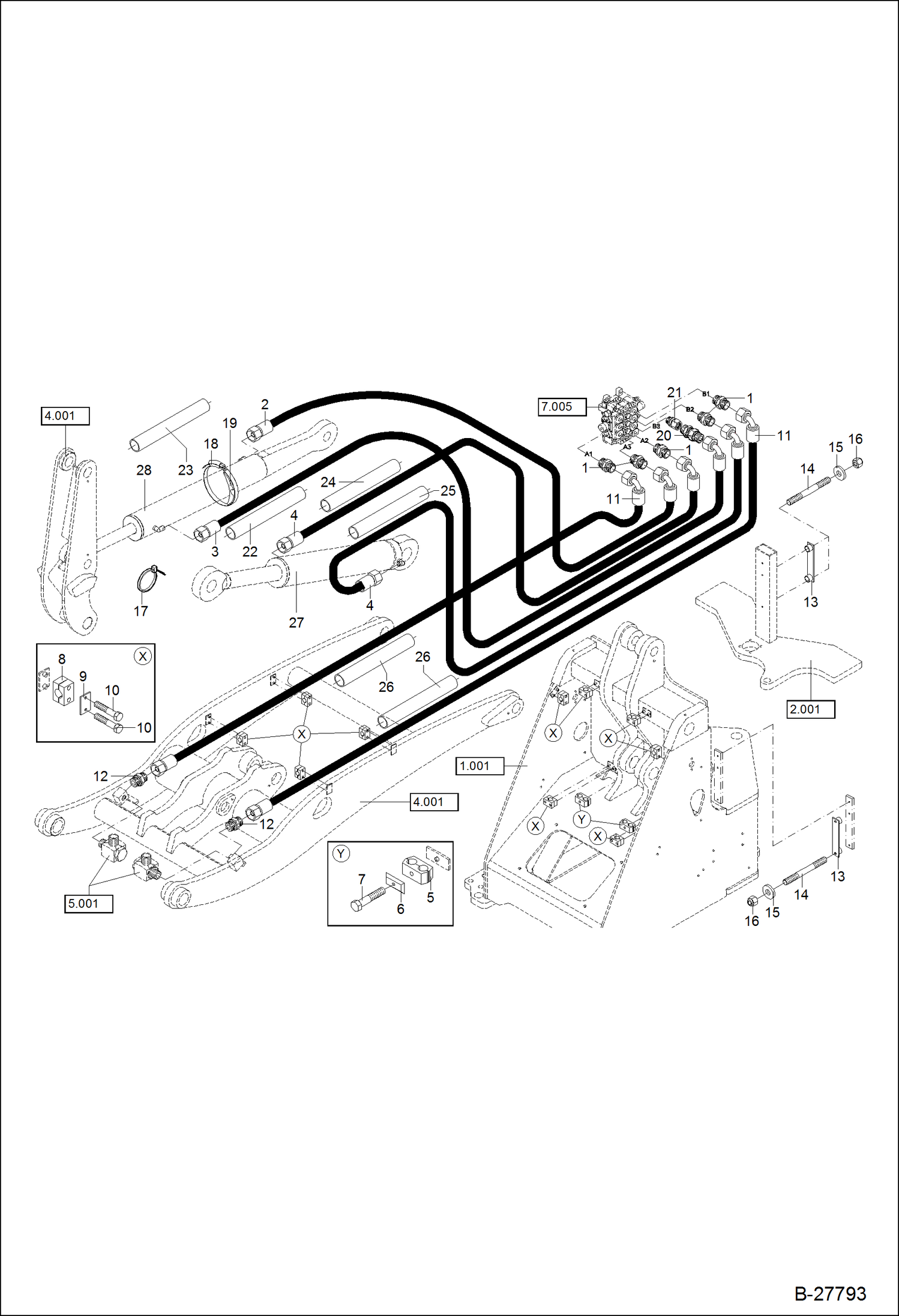

Запчасти Bobcat WL440 HYDRAULIC INSTALLATION - LOADING EQUIPMENT 1 HYDRAULIC SYSTEM

1

1915000140

FITTING

2

4262330375

HOSE

3

4262400375

HOSE

4

4262290375

HOSE

5

5660199783

CLIP

6

5660200230

COVER PLATE

7

1007707319

BOLT M 8X45

8

5660199787

HOSE CLIP

9

5660200130

COVER

10

1007707014

BOLT M 6X40

11

4262430375

HOSE

12

1915000754

FITTING

13

6337004001

HOSE CLIP

14

1123311519

STUD M 8X50

15

1343707057

WASHER 8,4

16

1212251011

NUT M 8

17

5350650280

BINDER 7,8X290

18

5660095400

HOSE CLIP 110-130

19

0110012050

RUBBER LAYER

20

0337012204

THROTTLE

21

1938000835

FITTING

22

0453715091

PROTECTION, HOSE 1160

23

0453715092

PROTECTION, HOSE 700

24

0453715093

PROTECTION, HOSE 900

25

0453715094

PROTECTION, HOSE 760

26

0453715095

PROTECTION, HOSE 820

27

CYLINDER, LIFTING FRAME See Illustration HYDRAULIC CYLINDER - LIFTING FRAME Z 115/70/ B27808

28

CYLINDER, DUMPING See Illustration HYDRAULIC CYLINDER - DUMPING Z 105/50/ B27809
