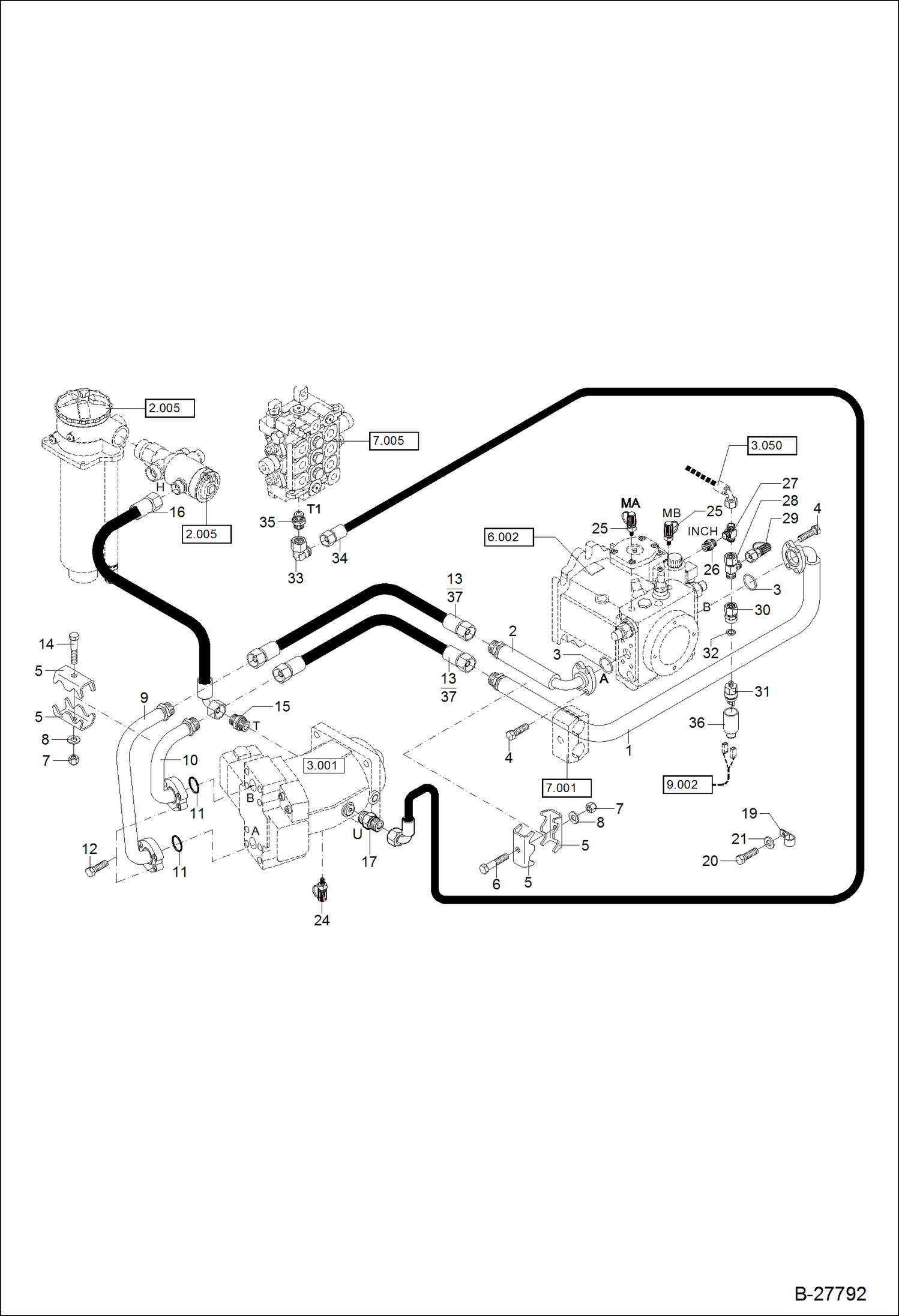

Запчасти Bobcat WL440 HYDRAULIC INSTALLATION - DRIVE S/N & Above HYDRAULIC SYSTEM

1

5260310352

ELBOW

2

5260310269

ELBOW

2

INSTRUCTION NSS - Order 5260310269 - Was 5260310269-D - A

3

1971956318

O-RING 25,00X3,53

4

1008707124

BOLT M 10X30

5

0202627060

PIPE CLIP

6

1007707824

BOLT M 10X60

7

1212251013

NUT M 10

8

1290707020

WASHER 10,5

9

5260310195

INTERMEDIATE PIECE

10

5260310197

INTERMEDIATE PIECE

11

1971956322

O-RING 32,92X3,53

12

1045707098

BOLT M 12X40

13

4470101493

HOSE, 20 KM/H VERSION

14

1007707125

BOLT M 10X75

15

1939060112

FITTING

16

4120112156

HOSE

17

1939060118

FITTING

19

5000136700

HOSE CLIP

20

1008707018

BOLT M 8X20

21

1343707057

WASHER 8,4

24

5066253810

CONNECTION, METER M 14X1,5

25

5066253605

METER CONNECTION M 12X1,5

26

1915000761

FITTING

27

1919060151

FITTING

28

1919060351

FITTING

29

5066234200

METER CONNECTION

30

1943000101

CONNECTION

31

7031402

SWITCH, PRESS Was 5050143173 - A

32

1636815354

SEAL RING 13X18X1,5

33

1924060154

ELBOW FITTING

34

4112091351

HOSE

35

1915060264

FITTING

36

5472661555

GUARD CAP

37

4470110493

HOSE, 36 KM/H VERSION
