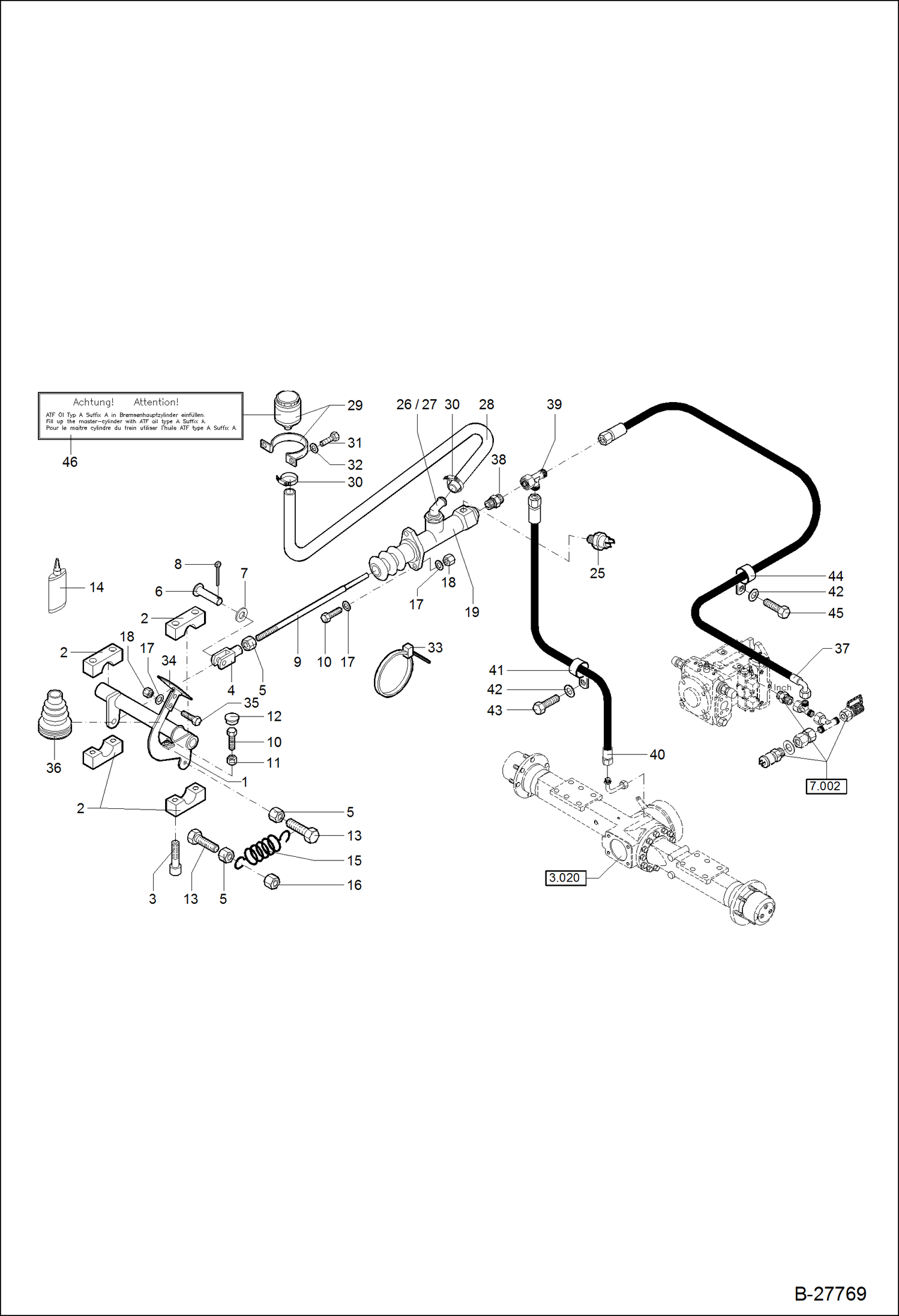

Запчасти Bobcat WL440 SERVICE BRAKE - 36 KM/H FAST TRAVEL VERSION DRIVE TRAIN

1

6451028002

BRAKE PEDAL

2

5660199790

BEARING SECTION (1PAAR)

3

1045707824

BOLT M 10X60

4

1796707008

CLEVIS

5

1210707013

NUT M 10

6

1360707126

PIN

7

1290707020

WASHER 10,5

8

1395707917

COTTER PIN

9

0451028006

ROD, THREADED

10

1008707618

BOLT M 8X30

11

1210707011

NUT M 8

12

1980930615

PROTECTION PLUG

13

1007707424

BOLT M 10X40

14

MCS001035A

GLUE

15

5064162330

SPRING

16

1212251013

NUT M 10

17

1290707018

WASHER 8,4

18

1212251011

NUT M 8

19

5650656598

MAIN CYLINDER

25

5050650826

SWITCH, PRESSURE AK 7807

26

5650046505

FITTING

27

1636815359

SEAL RING

28

0461528002

HOSE

29

5650638854

EXPANSION TANK

30

5603320362

PIPE CLIP

31

1008707912

BOLT M 6X16

32

1307707014

WASHER 6,4

33

5350650392

BINDER

34

6336028107

BRACKET FOOT PEDAL

35

1008707318

BOLT M 8X25

36

5255042380

BELLOWS

37

4256235371

HOSE

38

0334028010

FITTING

39

1919000689

FITTING

40

4506263466

HOSE

41

5000095200

HOSE CLIP

42

1343707057

WASHER 8,4

43

1008707817

BOLT M 8X16

44

5000136820

HOSE CLIP

45

1008707018

BOLT M 8X20

46

0398120020

MARKING PLATE ATF OEL
