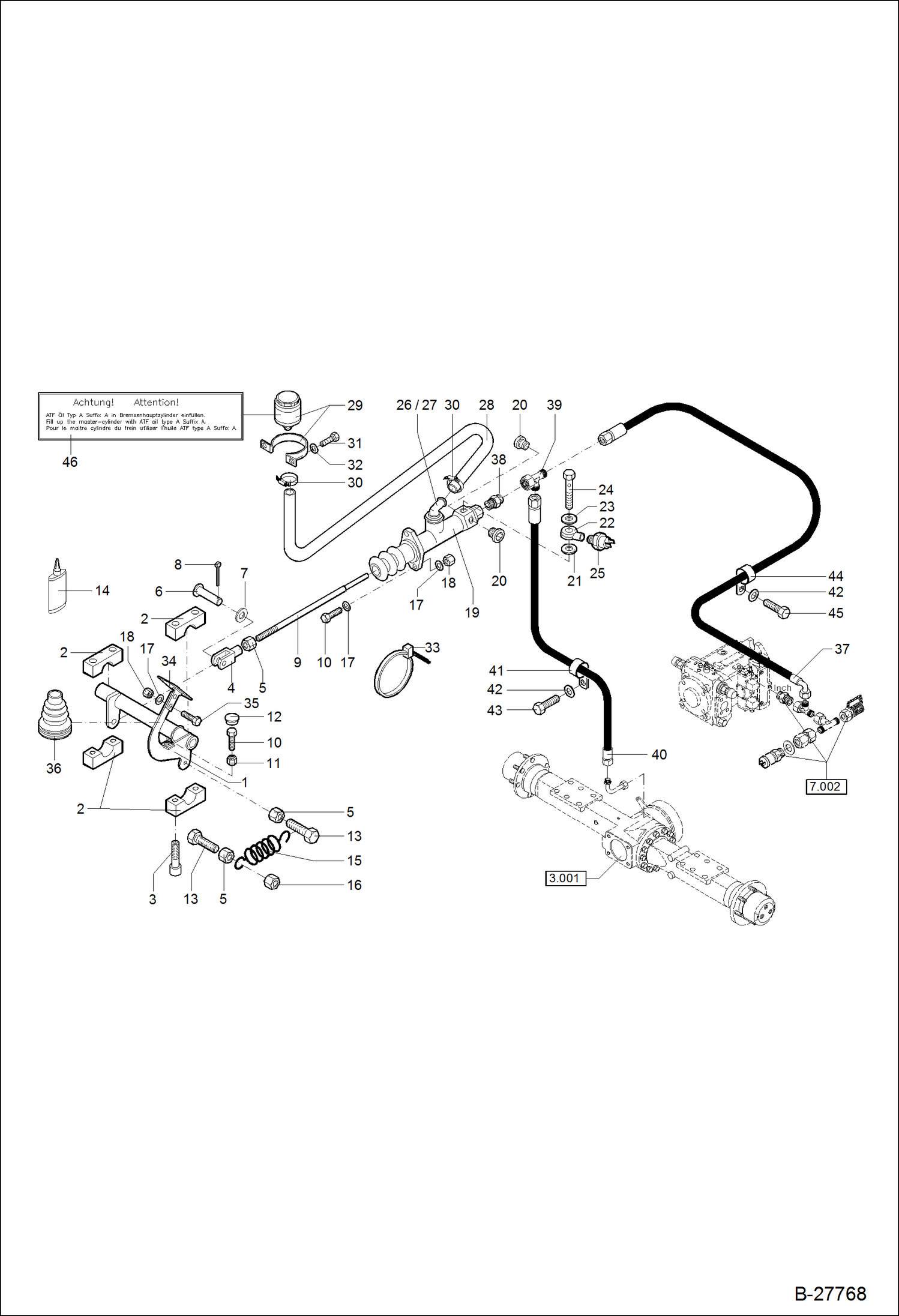

Запчасти Bobcat WL440 SERVICE BRAKE DRIVE TRAIN

1

6451028002

BRAKE PEDAL

2

5660199790

BEARING SECTION (1PAAR)

3

1045707824

BOLT M 10X60

4

1796707008

CLEVIS

5

1210707013

NUT M 10

6

1360707126

PIN

7

1290707020

WASHER 10,5

8

1395707917

COTTER PIN

9

0451028006

ROD, THREADED

10

1008707618

BOLT M 8X30

11

1210707011

NUT M 8

12

1980930615

PROTECTION PLUG

13

1007707424

BOLT M 10X40

14

MCS001035A

GLUE

15

5064162330

SPRING

16

1212251013

NUT M 10

17

1290707018

WASHER 8,4

18

1212251011

NUT M 8

19

5650638860

MAIN CYLINDER

20

5650057250

PLUG

21

1636815352

SEAL RING

22

5650237200

BANJO FITTING

23

1636815453

SEAL RING

24

5650024900

BANJO BOLT

25

5050650826

SWITCH, PRESSURE AK 7807

26

5650046505

FITTING

27

1636815359

SEAL RING

28

0461528002

HOSE

29

5650638854

EXPANSION TANK

30

5603320362

PIPE CLIP

31

1008707912

BOLT M 6X16

32

1307707014

WASHER 6,4

33

5350650392

BINDER

34

6336028107

BRACKET FOOT PEDAL

35

1008707318

BOLT M 8X25

36

5255042380

BELLOWS

37

4256235371

HOSE

38

1915000641

FITTING

39

1919000689

FITTING

40

4506263466

HOSE

41

5000095200

HOSE CLIP

42

1343707057

WASHER 8,4

43

1008707817

BOLT M 8X16

44

5000136820

HOSE CLIP

45

1008707018

BOLT M 8X20

46

0398120020

MARKING PLATE ATF OEL
