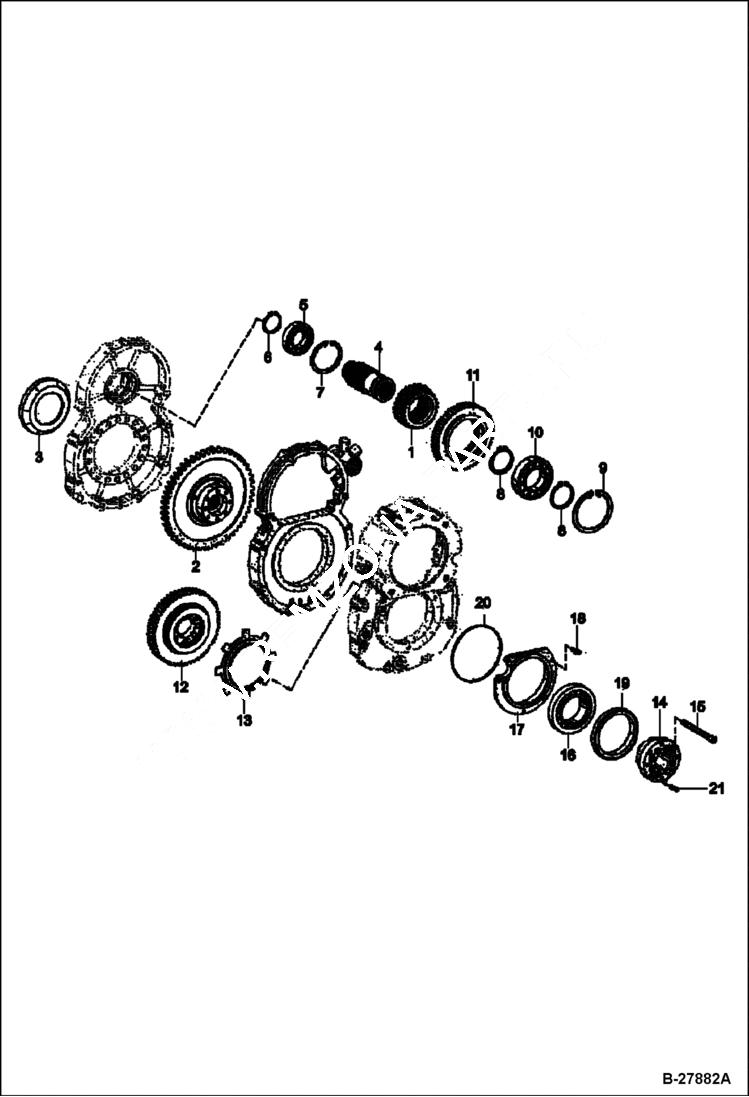

Запчасти Bobcat WL440 REDUCTION GEARS (Fast Travel) (Replacement Axle - 5904661696) DRIVE TRAIN

1

5904648660

SPROCKET

2

5904648650

SPROCKET

3

5904648652

BAFFLE, OIL

4

5904658823

SHAFT, DRIVE

5

5904658596

BEARING BALL Was 5904658598 - A

6

1455622250

CIRCLIP

7

1456622369

CIRCLIP

8

5904657976

CIRCLIP

9

5904648662

CIRCLIP

10

5904648663

BEARING, ROLLER

11

5904648664

SPROCKET

12

5904648656

SPROCKET

13

5904658599

WASHER

14

5904648657

FLANGE

15

5904648658

BOLT M10X90

16

5904658629

BALL BEARING Was 5904648659 - A

17

5904658442

COVER

18

1045907018

BOLT M8X20

19

5904658443

O-RING

20

5904658431

SEAL, SHAFT

21

5904658605

STUD
