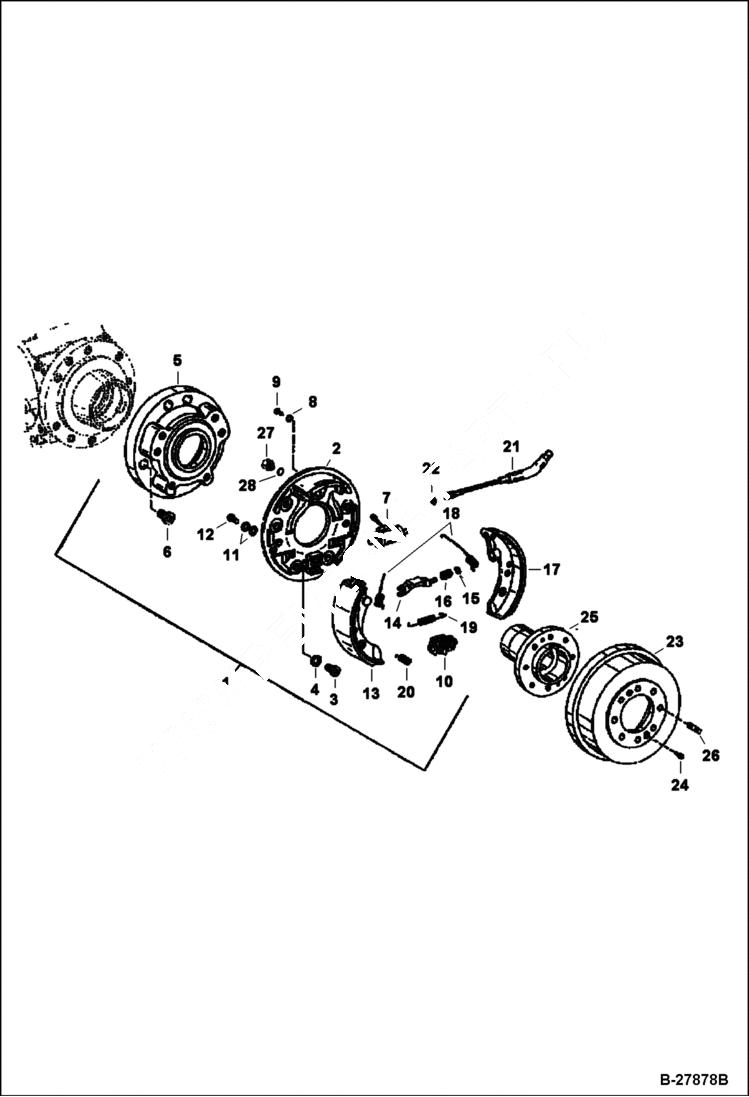

Запчасти Bobcat WL440 BRAKE DRIVE TRAIN

1

5904658829

BRAKE ASSY

2

5904658638

PLATE, BRAKE

3

1045907030

BOLT

4

5904658637

WASHER

5

5904661496

PLATE, BRAKE ANCHOR

6

1045707136

BOLT

7

5904658328

CYLINDER, BRAKE

8

1323707014

WASHER, SPRING

9

1008707213

BOLT

10

5427656701

ADJUSTER,BRAKE Was 5904658329 - A

11

5904658467

WASHER, LOCK

12

1008707124

BOLT

13

5904658332

SHOE, BRAKE

14

5904658510

TAPPET

15

1290707020

WASHER

16

5427656716

SPRING Was 5904658513 - A

17

5904658327

SHOE, BRAKE

18

5904658511

SPRING

19

5904658512

SPRING

20

5904658830

SPRING

21

5904658831

CABLE, BRAKE EMERGENCY

22

5904658466

WASHER, SPRING

23

5904658331

DRUM, BRAKE

24

1045707113

BOLT

25

5904658260

FLANGE, INPUT

26

5904658696

SEAL

27

5904658468

FITTING

28

5904658812

RING, SEAL
