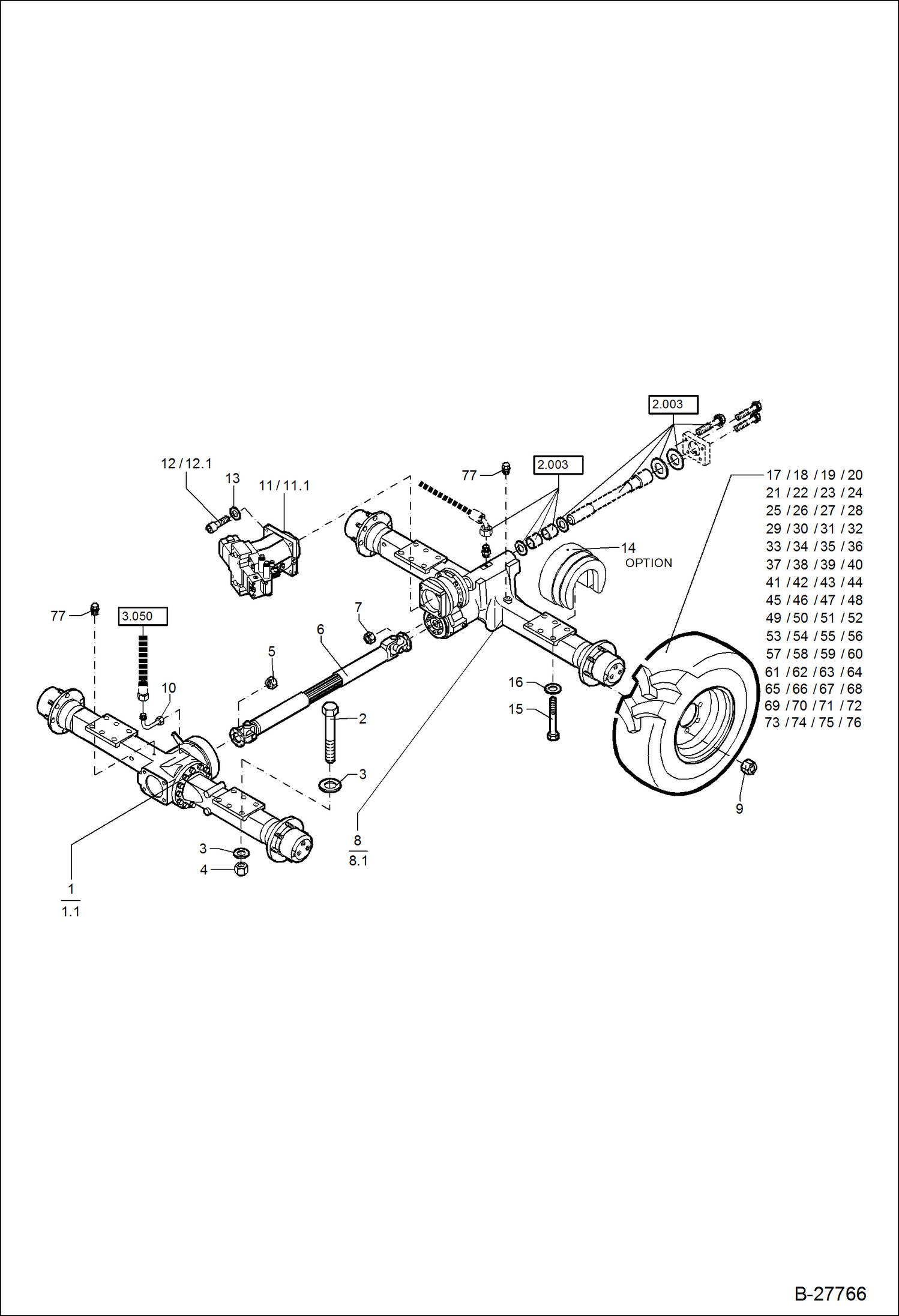

Запчасти Bobcat WL440 AXLE, TIRES (Standard) DRIVE TRAIN

1

AXLE, FRONT See Illustration FRONT AXLE/ NA2011 See Illustration DIFFERENTIAL GEARS/ B27869D See Illustration BRAKE/ B27878B See Illustration DRIVE HUBS/ B27877D See Illustration AXLE HOUSINGS/ NA2014

1

5904661686

AXLE, FRONT See Illustration FRONT AXLE/ B27867 See Illustration DIFFERENTIAL GEARS/ B27869 See Illustration BRAKE/ B27878 See Illustration AXLE HOUSINGS/ B27873 See Illustration DRIVE HUBS/ B27877 Se

2

1007707553

BOLT M 20X90

3

1290707033

WASHER 21X37X3

4

1212251018

NUT M 20

5

1214907013

NUT M 10

6

5200661108

CARDAN SHAFT

7

1214907411

NUT M 8X1

8

AXLE, REAR See Illustration REAR AXLE / NA2012 See Illustration DIFFERENTIAL GEARS/ B27869E See Illustration REDUCTION GEARS/ B27881A See Illustration DRIVE HUBS/ B27877E See Illustration REDUCTION GE

8

5904661691

AXLE, REAR See Illustration REAR AXLE/ B27868 See Illustration DIFFERENTIAL GEARS/ B27869D See Illustration DIFFERENTIAL BEARINGS/ B27871 See Illustration REDUCTION GEARS/ B27881 See Illustration DRIV

9

1270707618

NUT M 20X1,5

10

5904660751

BRAKE LINE

11

5364664190

VARIABLE MOTOR

11

5689659817

VARIABLE, MOTOR

12

1045707430

BOLT M 12X45

12

1045707230

BOLT M 12X40

13

1290707022

WASHER 13

14

0454219002

WEIGHT, AXLE REAR

15

1008707241

BOLT M 16X50

16

1343707065

WASHER 17X40X6

17

6337294000

WHEEL 16/70-20 10PR MPT - Ref. 18-20

18

5153643500

TIRE D.16/70-20 EM E91/2 TL 10PR

19

5307656027

RIM E=10 8-LOCH13X20

20

5153643505

VALVE

21

6337295000

WHEEL R 14.5-20MPT 10PR - Ref. 22-24

22

TIRE NLA - R 14.5-20 TL TG NYLON E91-20 10PR - Was 5153638700 - A

23

5307586170

RIM E=10 8-LOCH11X20

24

5153643505

VALVE

25

6337296000

WHEEL 405/70 R20 TL L - Ref. 26-28

26

5153658393

TIRE DUNLOP 405/70 R20 SP T9 TL L

27

5307656027

RIM E=10 8-LOCH13X20

28

5153643505

VALVE

29

6337296500

WHEEL 375/ 75 R20 XM 27TL - Ref. 30-32

30

5153644460

TIRE MICHELIN 375/75 R20XM27 143B TL

31

5307586170

RIM E=10 8-LOCH11X20

32

5153643505

VALVE

33

6337293000

WHEEL 12.5-20 TG3210PR - Ref. 34-36

34

TIRE NLA - 12.5-20 TG32 MPT NYTL 10PR - Was 5153632150 - A

35

5307586170

RIM E=10 8-LOCH11X20

36

5153643505

VALVE

37

6337293500

WHEEL 335/80 R20 XM27TL - Ref. 38-40

38

5153658387

TIRE MICHELIN 335/80R20XM27 141B TL

39

5307586170

RIM E=10 8-LOCH11X20

40

5153643505

VALVE

41

6337294500

WHEEL 405/70 R20 XM27TL - Ref. 42-44

42

5153658391

TIRE MICHELIN 405/70 R20XM27 143B TL

43

5307586170

RIM E=10 8-LOCH11X20

44

5153643505

VALVE

45

6337293000

WHEEL 12.5-20 10PR - Ref. 46-48

46

TIRE NLA - 12.5-20 TG32 MPT NYTL 10PR - Was 5153632150 - A

47

5307586170

RIM E=10 8-LOCH11X20

48

5153643505

VALVE

49

6337295600

WHEEL 14.5-20MPT 10PR - Ref. 50-52

50

TIRE NLA - DUNLOP 14.5-20 TL 10TR E91 DUNLOP 14.5-20 TL 10TR E91 - Was 5153661127 - A

51

5307586170

RIM E=10 8-LOCH11X20

52

5153643505

VALVE

53

6462793500

WHEEL 16/70-20EM-E91/2 - Ref. 54-56

54

5153643500

TIRE D.16/70-20 EM E91/2 TL 10PR

55

5307656027

RIM E=10 8-LOCH13X20

56

5153643505

VALVE

57

6337297000

WHEEL Ref. 58-60

58

5153661150

TIRE DUNLOP 365/80R20TL SPT9

59

5307586170

RIM E=10 8-LOCH11X20

60

5153643505

VALVE

61

6453290000

WHEEL MICHELIN 425/75 R20 XM 27TL - Ref. 62-64

62

5153654490

TIRE MICHELIN 425/75 R20XM27 155B TL

63

5307656027

RIM E=10 8-LOCH 13X20

64

5153643505

VALVE

65

6453297000

WHEEL 405/70 R20 XZSL - Ref. 66-68

66

5153658420

TIRE 405/70 R20 XZSL

67

5307656027

RIM E=10 8-LOCH 13X20

68

5153632954

VALVE

69

6453295600

WHEEL 405/70 R20 PG 75R - Ref. 70-73

70

5153661363

TIRE 405/70 R20 PG75R

71

5307656027

RIM E=10 8-LOCH 13X20

72

5153643505

VALVE

73

6453298500

WHEEL 405/70 R20 EM 01 - Ref. 74-76

74

5153665020

TIRE 405/70 R20 EM 01

75

5307656027

RIM E=10 8-LOCH 13X20

76

5153643505

VALVE

77

5904658832

VALVE, BLEEDING
