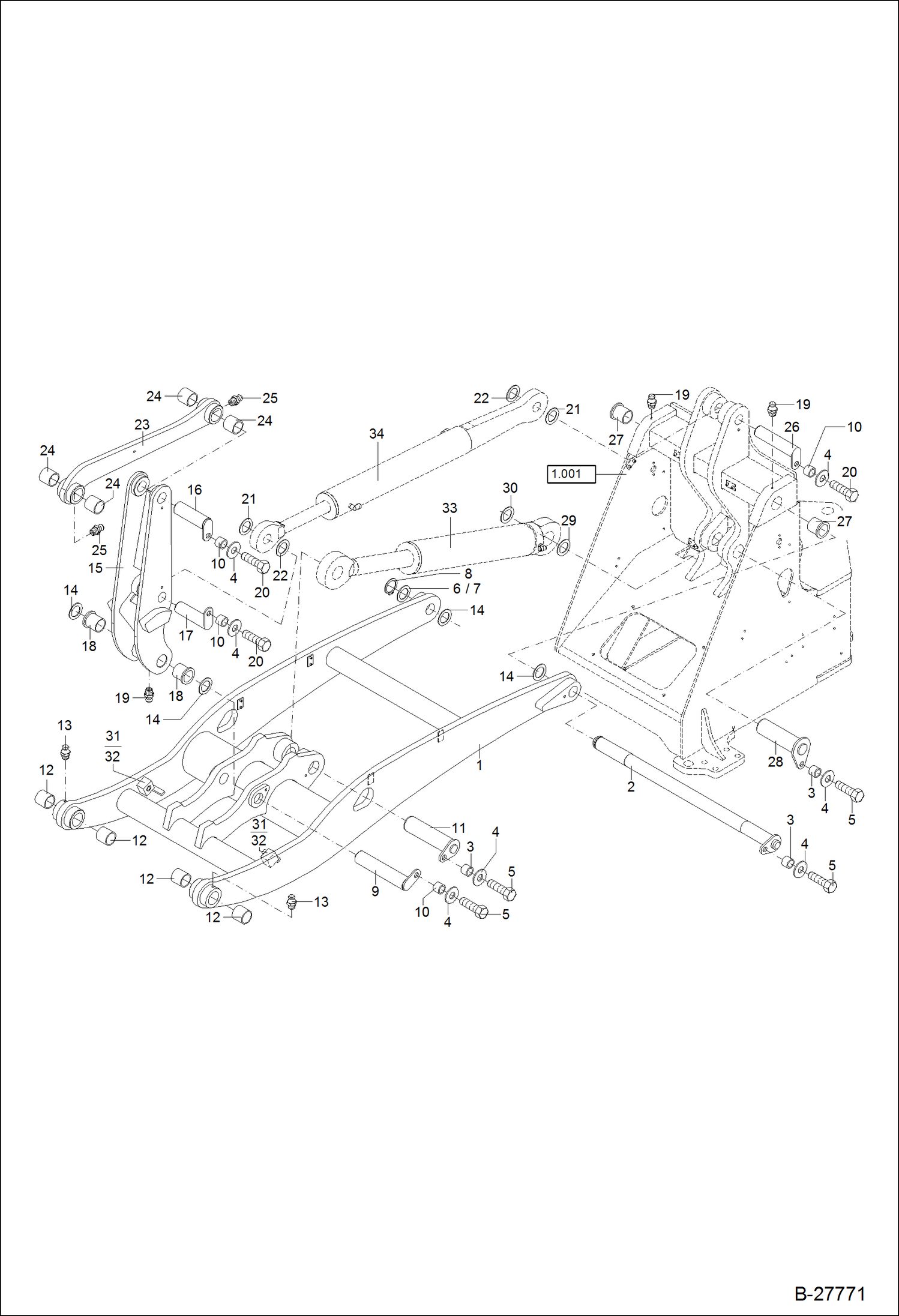

Запчасти Bobcat WL440 LOADING EQUIPMENT MAIN FRAME

1

6453020001

LIFTING FRAME W/Ref. 31 & 32

2

0337021004

PIN 50X954

3

0156029033

SPACER 20X3,5X11

4

1343707061

WASHER 13

5

1008707829

BOLT M 12X30

6

1309412926

SHIM 50X75X2

7

1309412608

SHIM 50X62X0,5

8

1455622750

SNAP RING 50X3

9

0397521011

PIN

10

0333023033

SPACER BUSHING 20X3,5X7

11

0155129040

PIN

12

5557313800

BUSHING

13

1607003008

GREASE NIPPLE M 8X1

14

1309412815

SHIM 50X75X1

15

6453023001

TILTING LEVER

16

0334023028

PIN

17

0397523008

PIN

18

5809625560

BUSHING

19

1607003010

GREASE NIPPLE M 10X1

20

1008707529

BOLT M 12X25

21

1309412012

SHIM 45X55X1

22

1309412224

SHIM 45X55X

23

6337024001

LINKAGE

24

5557200900

BUSHING 50X60X35

25

1607003006

GREASE NIPPLE M 6X1

26

0337002005

PIN 45X195

27

0337002008

BUSHING 50X60X55

28

0175106030

PIN 60X218

29

1309412013

SHIM 60X75X1

30

1309412825

SHIM 60X75X2

31

6332806107

DISTRIBUTOR

32

0460520019

PROTECTION

33

CYLINDER, LIFTING FRAME See Illustration HYDRAULIC CYLINDER - LIFTING FRAME Z 115/70/ B27808

34

CYLINDER, DUMPING See Illustration HYDRAULIC CYLINDER - DUMPING Z 105/50/ B27809
