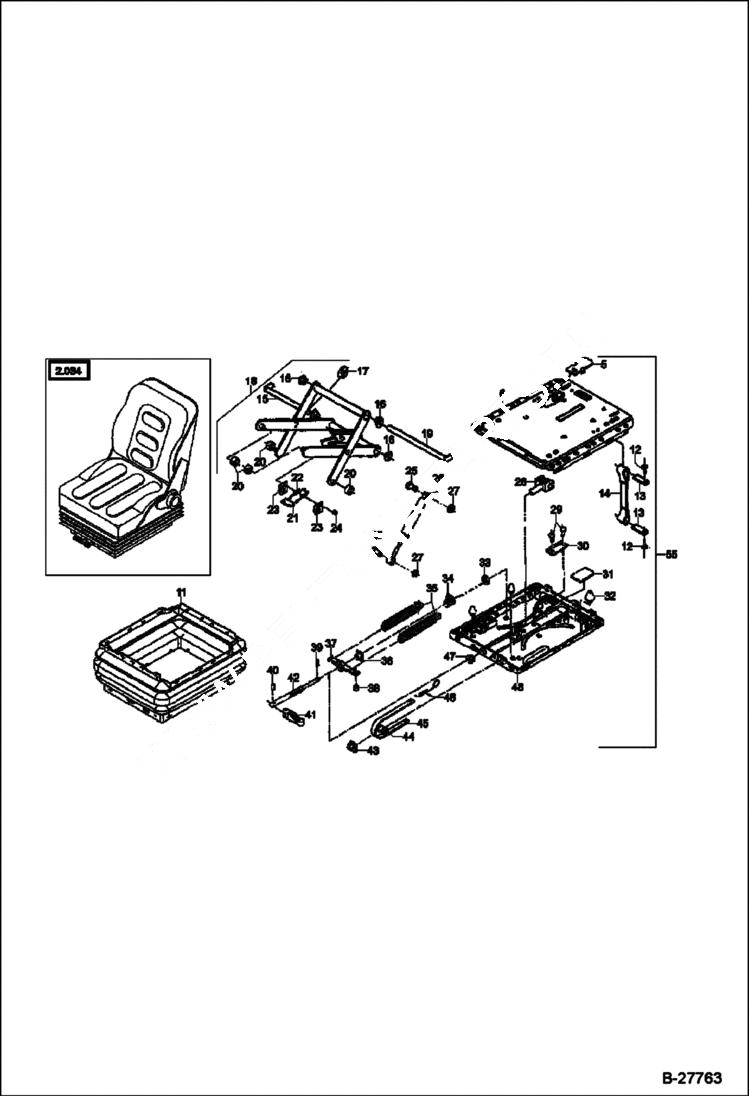

Запчасти Bobcat WL440 OPERATOR SEAT - SUSPENSION - CANOPY MAIN FRAME

5

5305670115

COVER

6

5305670196

SEAT PAN W/Ref. 5, 12 & 13

11

5305670197

BELLOW

12

5305670116

RIVET

13

5305670117

BRACKET

14

5305670118

BELT

15

5305661645

PIN

16

5305655444

BUSHING

17

5305639674

CIRCLIP 9,0

18

5305670072

ROCKER ARM W/Ref. 15-17 & 19-24

19

5305670010

PIN

20

5305655433

BUSHING

21

5305670015

PLATE

22

5305655439

SPRING

23

5305670017

LOCKING PLATE

24

5305670016

PIN

25

5305639675

PIN

26

5305670004

GAS-FILLED DAMPER W/Ref. 17 & 19

27

5305639674

CIRCLIP 5,0

28

5305670088

FORK CPL

29

5305670120

RIVET 4,0X10

30

5305670121

PLATE

31

5305670185

RUBBER PLATE

32

5305670123

BUFFER SET

33

5305670087

WASHER

34

5305670086

BALL BEARING

35

5305655443

SPRING

36

5305670085

NUT M 12

37

5305670124

SPRING HOLDER

38

5305670128

PLUG

39

5305670090

PIN 3X16

40

5305670091

PIN 4X28

41

5305670084

LEVER W/Ref. 40

42

5305661646

ADJUSTING SPINDLE W/Ref. 34, 36, 39, 41 & 47

43

5305670125

GUIDE

44

5305659708

ROLLER

45

5305670126

WEIGHT INDICATOR

46

5305655448

SPRING

47

5305670089

RING

48

5305670187

OPERATOR SEAT - BOT W/Ref. 28, 30-33, 35, 37, 38 & 42-46

55

5305670250

SEAT SUSPENSION Ref. 5-48 & Ref. 110 from ILL. B27762
