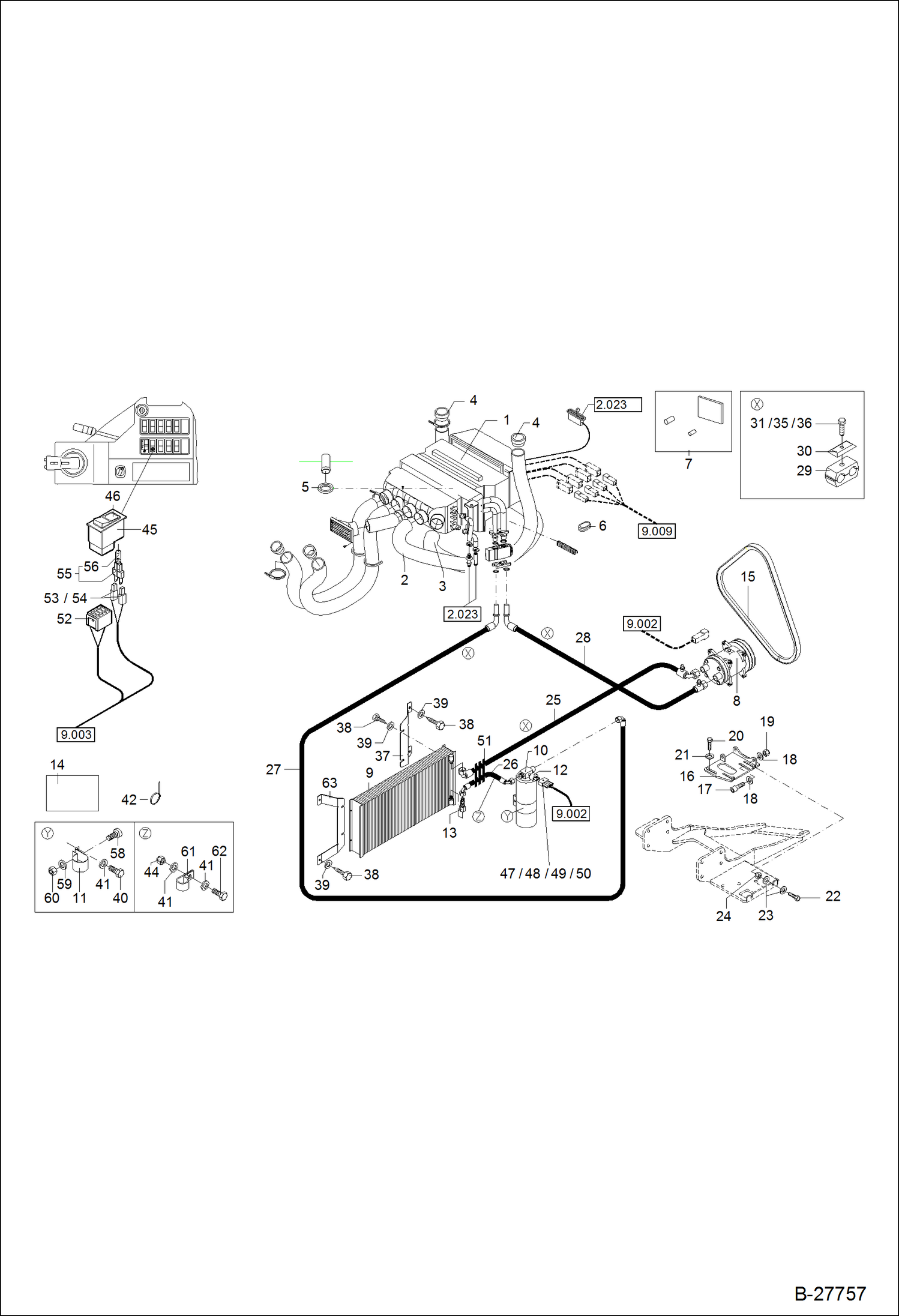

Запчасти Bobcat WL440 AIR CONDITIONER MAIN FRAME

1

5388665602

AIR, CONDITIONER

2

5388665542

HOSE 1240MM

3

5388665543

HOSE 1440MM

4

5388665478

REDUCTION PIECE

5

5388665544

SEAL RING

6

5388665545

AIR STOP

7

0451275240

MOUNTING, KIT

8

5169001018

COMPRESSOR

9

5169001017

CONDENSATOR

10

5388662731

FILTER

11

5388662855

FILTER SUPPORT

12

5388661135

PRESSURE SWITCH PRIMARY

13

5388665521

FITTING

14

5388661117

MARKING PLATE

15

1490953958

V-BELT 13X975

16

6453281004

BRACKET

17

1045707424

BOLT M 10X40

18

1290707020

WASHER 10,5

19

1212251013

NUT M 10

20

1008707124

BOLT 10X30

21

1343707059

WASHER 10,5

22

1008707919

BOLT M 8X70

23

1307707018

WASHER 8,4

24

1210707011

NUT M 8

25

5388661149

HOSE FROM COND. TO COMPR.

26

5388662932

HOSE FROM COND.TO FILTER

27

5388665400

HOSE

28

5388661147

HOSE FROM EVAPOR TO COMP.

29

5660199783

CLIP 22

30

5660200230

COVER PLATE

31

1007707319

BOLT M 8X45

35

1007707620

BOLT M 8X110

36

1007707120

BOLT M 8X80

37

0453281012

BRACKET

38

1109707742

BOLT M 5X13

39

1290707014

WASHER 6,4

40

1008707612

BOLT M 6X12

41

1343707055

WASHER 6,4

42

5653093560

BINDER 4,8X200

44

1212251009

NUT M 6

45

5050651384

SWITCH INTERRUPTER

46

5358650383

DECAL SYMBOL

47

5350249681

HOUSING (MALE)

48

5350249346

GASKET

49

5350249345

GASKET

50

5350249673

CONTACT

51

5000068300

WIRING HARNESS

52

5050650225

HOUSING

53

5350246805

TERMINAL FEMALE 6,3

54

5350249536

HOUSING 1-FACH

55

5050650226

LAMP 12V

56

1813000021

ROUND BULB 12V

58

5388662856

BOLT M5X40

59

5388662623

WASHER 5,3

60

1210707007

NUT M 5

61

5000210400

HOSE CLIP A94

63

6453281011

BRACKET
