Запчасти Bobcat WL440 4 IN 1 SHOVEL ACCESSORIES & OPTIONS

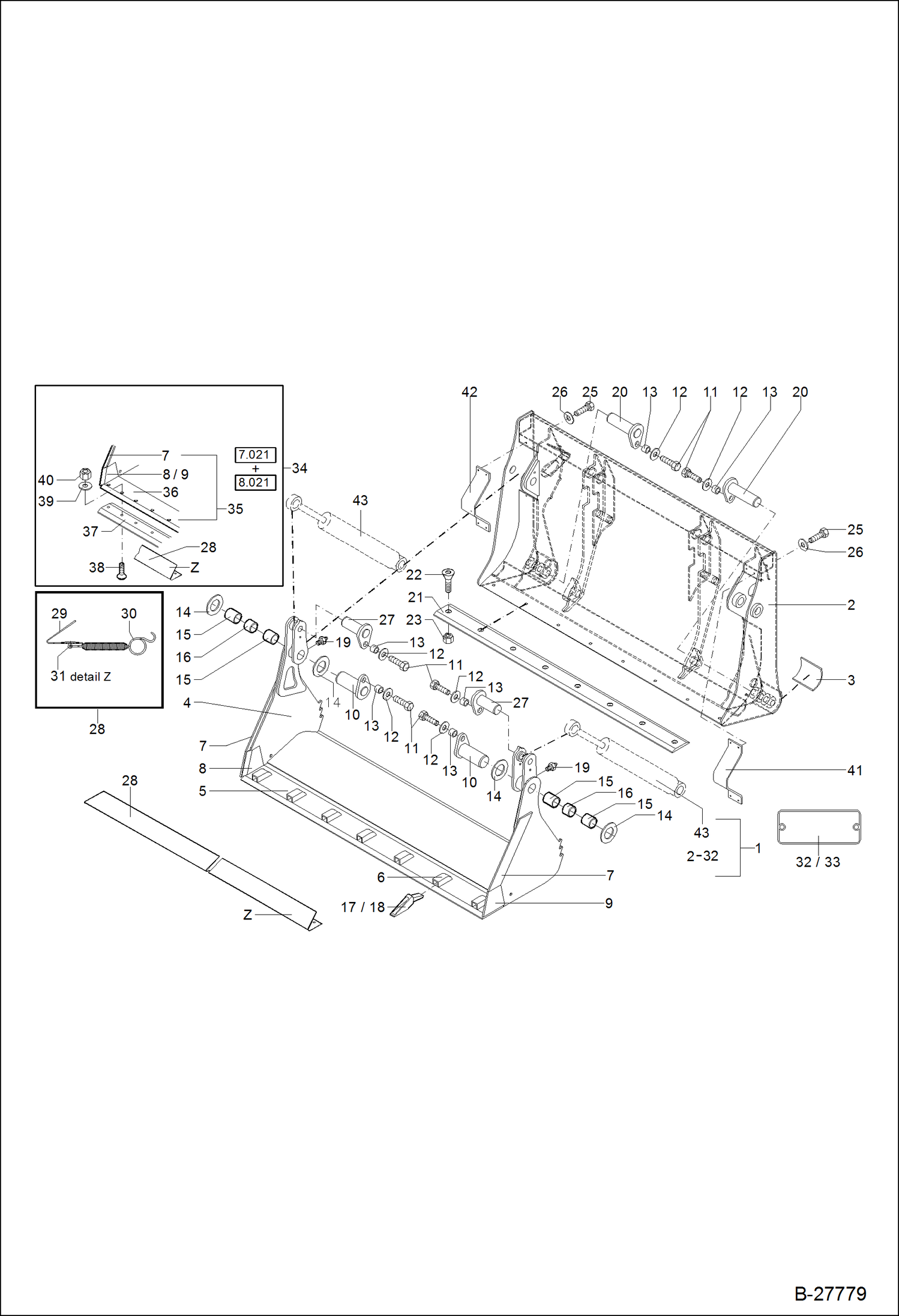

Схема запчастей Bobcat WL440 - 4 IN 1 SHOVEL ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6323200000

UNI-SHOVEL CPL. W/Ref. 2-32 & 43

2

0323201001

SHOVEL, REAR CPL. W/Ref. 3

3

6323201025

SKID SHOE

4

0323202001

SHOVEL, FRONT CPL. W/Ref. 5-9

5

6337201205

CUTTING EDGE W/Ref. 6

6

5455204900

SLEEVE

7

6323202009

SIDE BAR

8

0397201023

CUTTING EDGE RIGHT

9

0397201024

CUTTING EDGE LEFT

10

0333023030

PIN

11

1008707529

BOLT M 12X25

12

1343707061

WASHER 13

13

0333023033

SPACER BUSHING

14

1309412725

SHIM

15

0159903056

BUSHING

16

0323203007

BUSHING

17

5455204800

TOOTH

18

5455700096

TOOTH CUP Was 5455205000 - A

19

1608003010

GREASE NIPPLE

20

0157709042

PIN

21

0323203010

CUTTING EDGE

22

1062707036

BOLT M 14X40

23

1212251015

NUT M 14

25

1008707018

BOLT M 8X20

26

1343707057

WASHER 8,4

27

0366204110

PIN

28

6453201030

TOOTH PROTECTION CPL. W/Ref. 29-31

29

PROTECTOR, TOOTH NLA - Order Ref. 28

30

5249001010

SPRING

31

1395707827

COTTER PIN Was 5249001011 - A

32

PLATE, NAME NLA

33

1940000739

RIVET

34

6323390000

UNI-SHOVEL CPL. Ref. 2, 7-33, 35-40, 43 & Ref. 1-15 on ILL. B27799

35

6323302101

FRONT SHOVEL W/Ref. 7-9 & 36.1

36

0453202003

CUTTING EDGE

37

0453202002

BOLT-ON CUTTING EDGE

38

1062707236

BOLT M 14X50

39

1290707025

WASHER 15

40

1212251015

NUT M 14

41

0323003015

BRACKET

42

0323003016

BRACKET

43

CYLINDER, 4 IN 1 SHOVEL See Illustration HYDRAULIC CYLINDER - 4 IN 1 SHOVEL Z 70/35/ B27811

Выбрано товаров: 42
