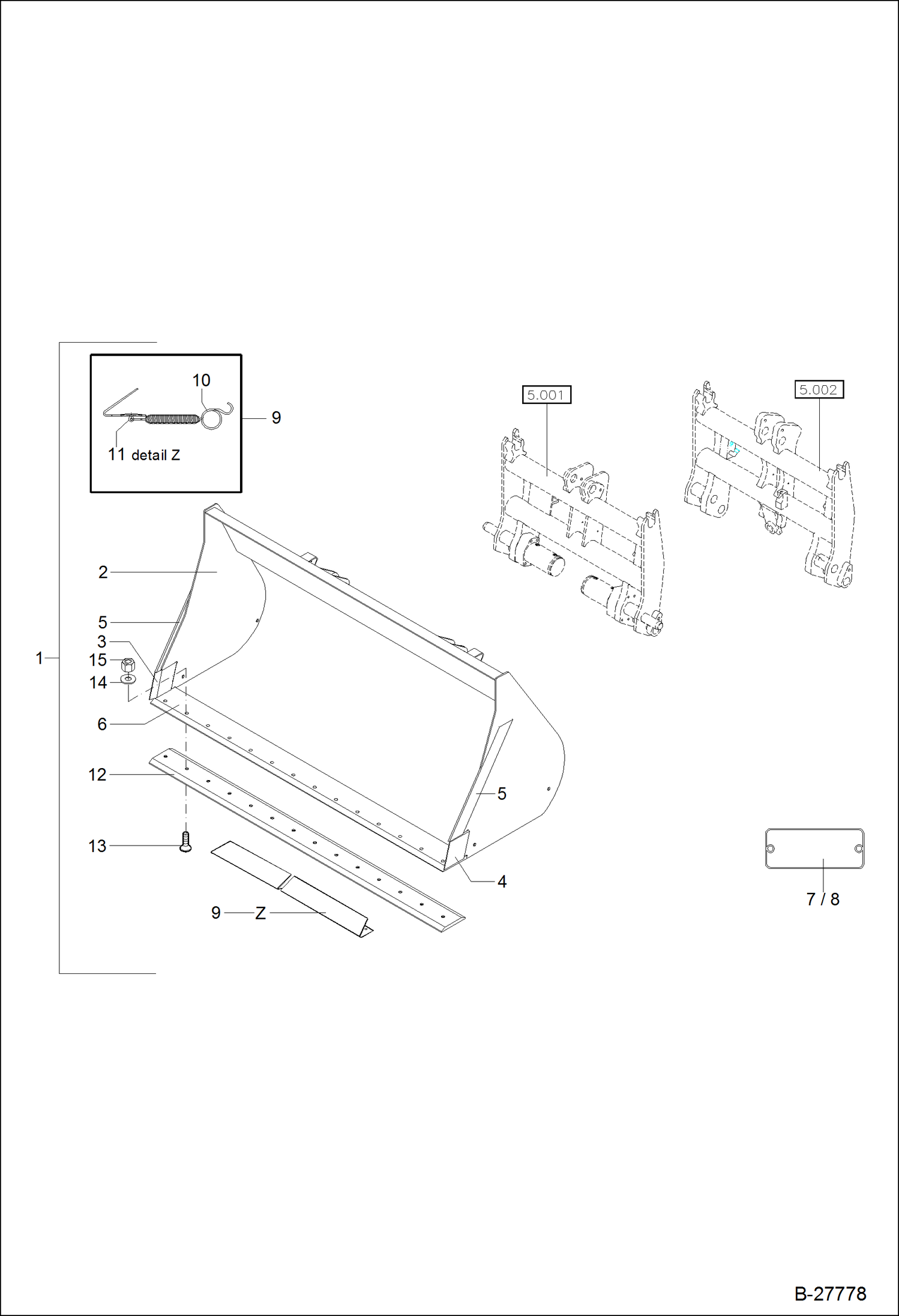

Запчасти Bobcat WL440 LIGHT MATERIAL BUCKET 1950MM 1,35CBM ACCESSORIES & OPTIONS

1

6453207000

LIGHT MATERIAL BUCKET CPL: 1950MM1,35CBM - Ref. 2-15

2

6453207001

LIGHT MATERIAL BUCKET 1950MM 1.35CBM - W/Ref. 3-6

3

0453201023

EDGE, CUTTING RIGHT

4

0453201024

EDGE, CUTTING LEFT

5

6397201004

SIDE-STRIP

6

0453202003

CUTTING EDGE

7

PLATE, NAME NLA

8

1940000739

RIVET

9

6453201030

TOOTH PROTECTION CPL. W/Ref. 10 & 11

10

5249001010

SPRING

11

1395707827

COTTER PIN Was 5249001011 - A

12

0453202002

BOLT-ON CUTTING EDGE

13

1062707236

BOLT M 14X50

14

1290707025

WASHER 15

15

1212251015

NUT M 14
