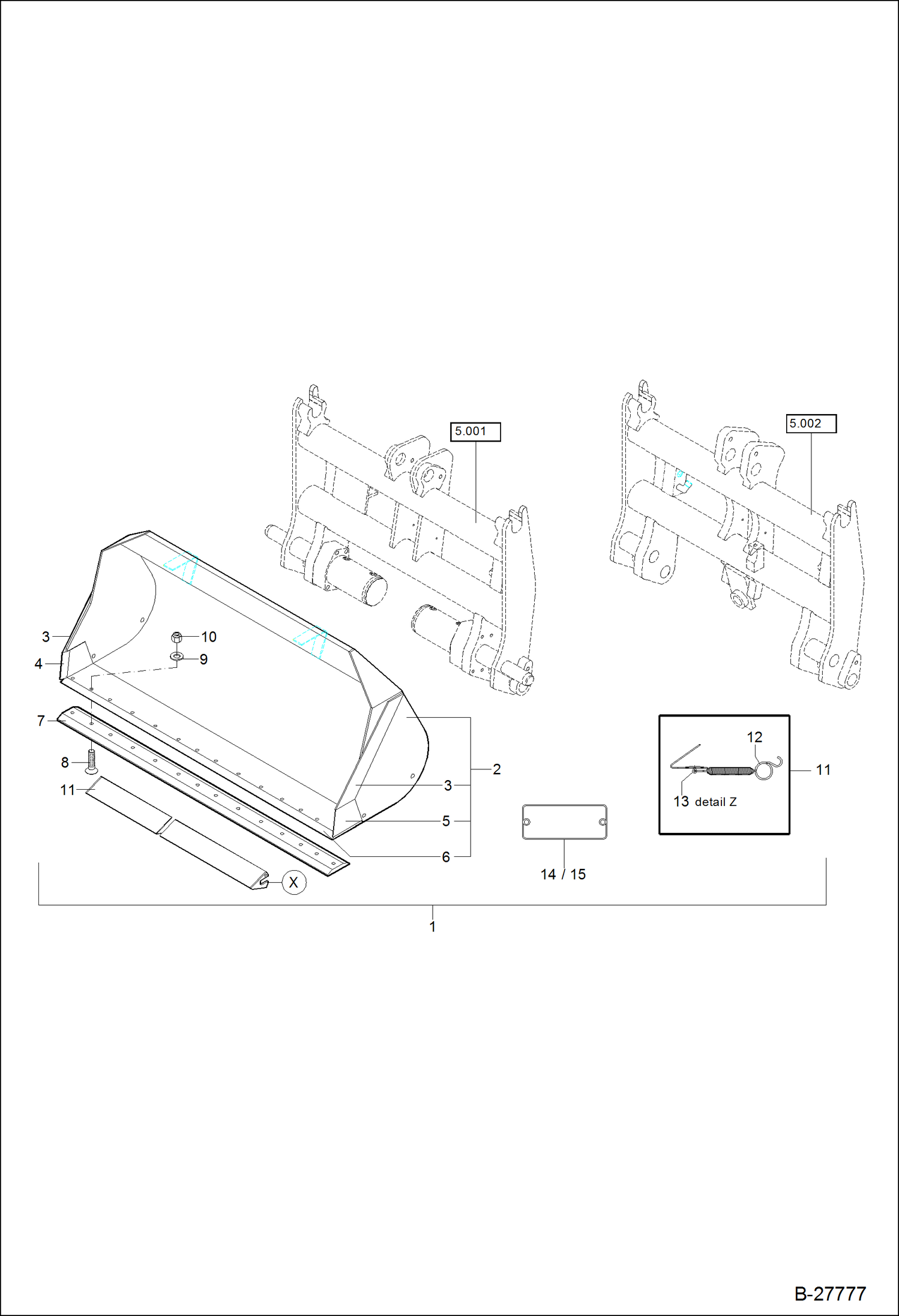

Запчасти Bobcat WL440 LIGHT MATERIAL BUCKET - 2200MM ACCESSORIES & OPTIONS

1

6463709000

LIGHT WEIGHT SHOVEL CPL Ref. 2-15

2

0463708001

LIGHT WEIGHT SHOVEL W/Ref. 3-6

3

6397701104

SIDE-STRIP

4

0397201023

CUTTING EDGE RIGHT

5

0397201024

CUTTING EDGE LEFT

6

0390302003

CUTTING EDGE

7

0464702003

ADDITIONAL BLADE SCREWBALL.

8

1062707436

BOLT M 14X60

9

1290707025

WASHER B 15

10

1212251015

NUT M 14

11

0454208030

PROTECTION, TOOTH CPL. W/Ref. 10 & 11

12

5249001010

SPRING

13

1395707827

COTTER PIN Was 5249001011 - A

14

PLATE, NAME NLA

15

1940000739

RIVET
