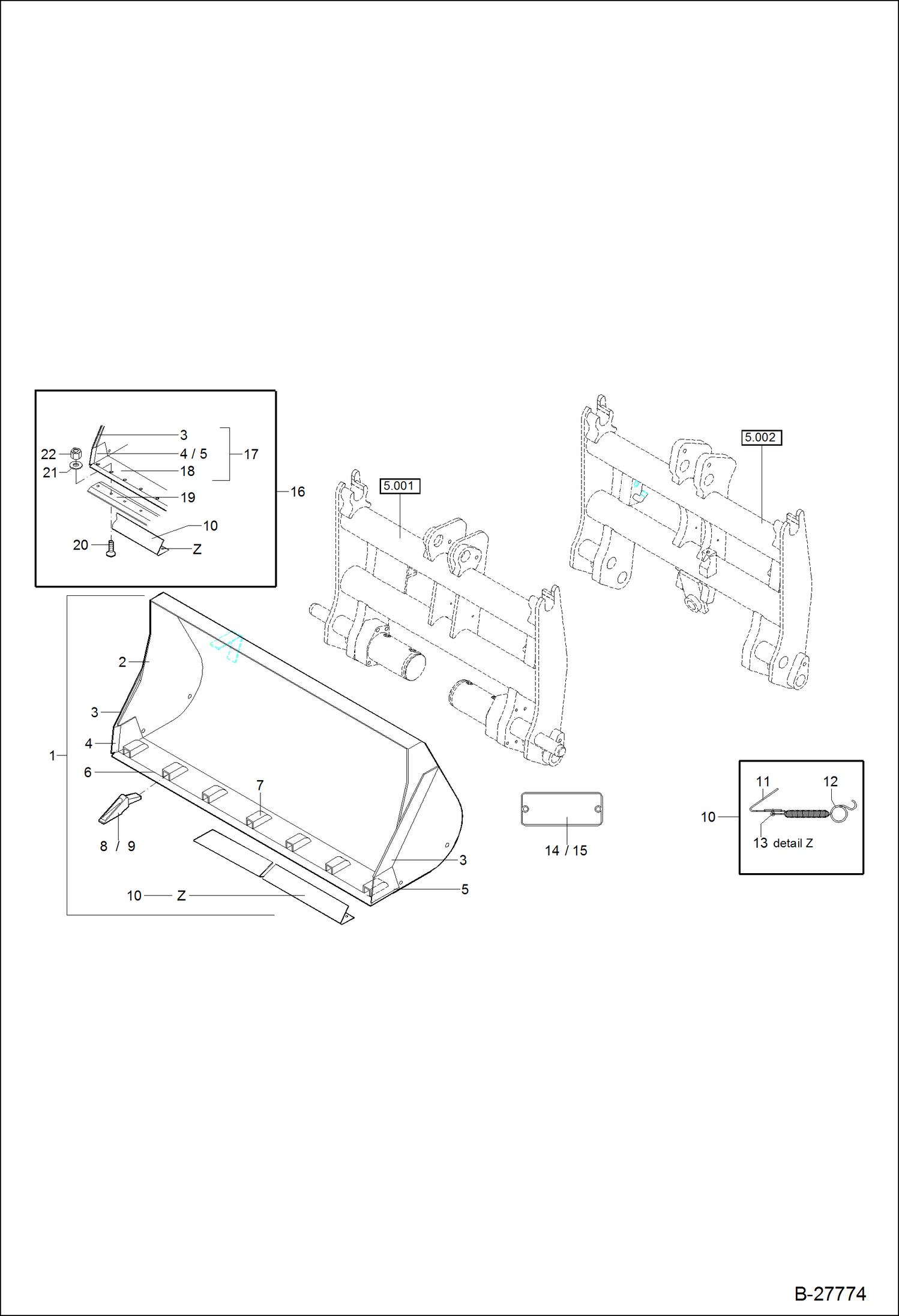

Запчасти Bobcat WL440 LOADING SHOVEL - 1950MM 0,80CBM ACCESSORIES & OPTIONS

1

6453201000

LOADING SHOVEL CPL. 1950MM - Ref. 2 & 8-15

2

0453201001

LOADING SHOVEL 1950MM - W/Ref. 3-7

3

6397201004

SIDE-STRIP

4

0453201023

EDGE, CUTTING RIGHT

5

0453201024

EDGE, CUTTING LEFT

6

6337201205

CUTTING EDGE W/Ref. 7

7

5455204900

SLEEVE

8

5455204800

TOOTH

9

5455700096

TOOTH CUP Was 5455205000 - A

10

6453201030

TOOTH PROTECTION CPL. W/Ref. 11-13

11

PROTECTOR, TOOTH NLA - Order Ref. 10

12

5249001010

SPRING

13

1395707827

COTTER PIN Was 5249001011 - A

14

PLATE, NAME NLA

15

1940000739

RIVET

16

6453202000

LOADING SHOVEL 1950MM - Ref. 10-17 & 19-22

17

0453202001

LOADING SHOVEL 1950MM - W/Ref. 3-5 & 18

18

0453202003

CUTTING EDGE

19

0453202002

BOLT-ON CUTTING EDGE

20

1062707236

BOLT M 14X50

21

1290707025

WASHER 15

22

1212251015

NUT M 14
