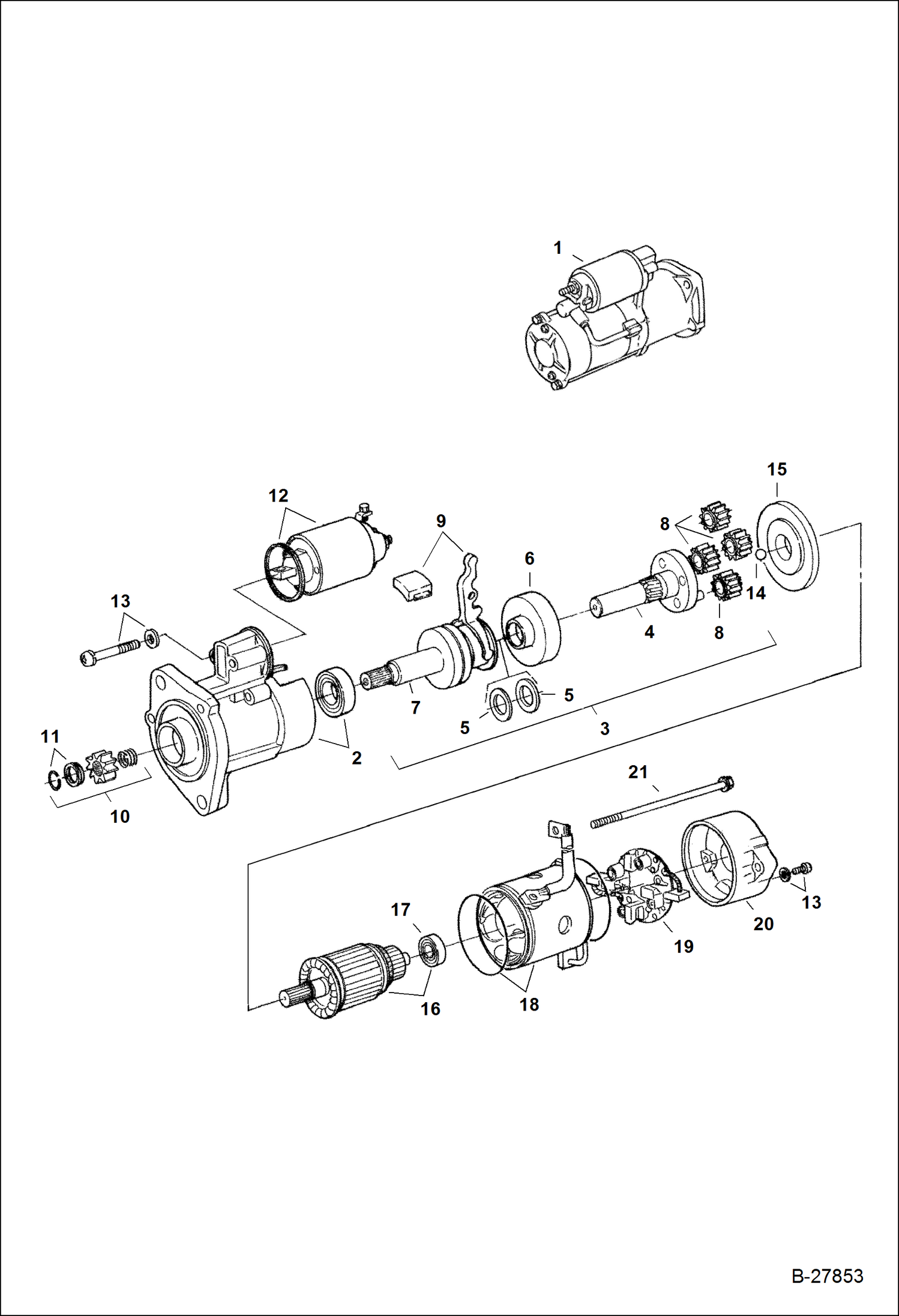

Запчасти Bobcat WL440 STARTER (Kubota) POWER UNIT

1

6689353

ASSY STARTER

2

6689354

ASSY BRACKET, FRONT

3

6689355

ASSY SHAFT, CLUTCH Ref. 4-9

4

6689360

ASSY SHAFT, GEAR

5

6689267

SET, WASHER

6

6689259

SET, INTERNAL GEAR

7

6689263

CLUTCH, OVER RUNNING

8

6689260

ASSY GEAR

9

6689356

ASSY LEVER, SET

10

6689361

SET PINION W/Ref. 11

11

6689254

SET, STOPPER

12

6689248

ASSY SWITCH, MAGNETIC

13

6689366

SET, SCREW

14

6689369

BALL

15

6689268

SET, PACKING

16

6689357

ASSY ARMATURE W/Ref. 17

17

6689258

BEARING

18

6689358

ASSY YOKE

19

6689364

ASSY HOLDER, BRUSH

19

6689365

BRUSH, SPRING

19

6689363

BRUSH

20

6689359

ASSY BRACKET, REAR

21

6689362

SET, BOLT
