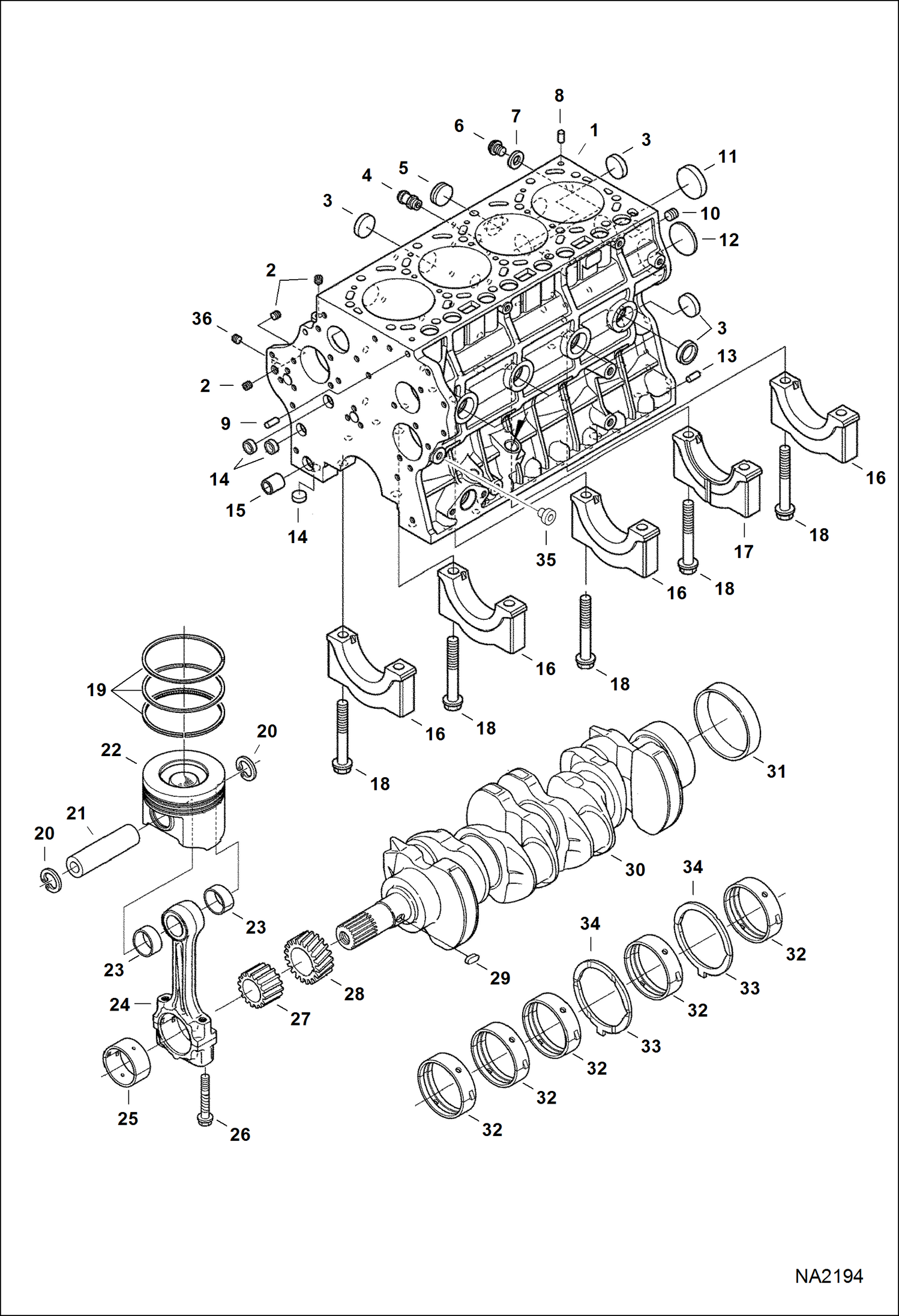

Запчасти Bobcat WL440 PISTON & CRANKSHAFT (Kubota) POWER UNIT

1

7008615

BLOCK, ENG Was 6689232 - A

2

6652574

PLUG

3

3974389

CAP, SEALING

4

6680646

ADAPTER

5

6672354

PLUG

6

6652750

PLUG Was 6969968 - A

7

3974095

MET-GASK

8

3974037

PIN

9

21JM820

PIN, STRAIGHT

10

6680636

PLUG

11

3974390

PLUG

12

6680640

PLUG

13

6685918

PIN

14

3974056

CAP

15

7017198

PIN, STRAIGHT Was 6680644 - A

16

CAP, BEARING MAIN NSS - Order Ref. 1

17

CAP, BEARING THRUST MAIN NSS - Order Ref. 1

18

6680645

BOLT

19

6680723

PISTON RINGS

19

6680724

PISTON RINGS

20

6680726

SNAP RING

21

6680725

PIN

22

6685933

PISTON std (1G557-2111)

22

6685934

PISTON +.50 mm (1G557-2112 OS50)

23

6680728

BUSHING

24

6680727

ROD

25

6680730

ROD BEARING std/blue/set

25

6680731

BEARING, ROD CONNECTING

25

6680732

ROD BEARING -0,20 mm/green/set

25

6680733

ROD BEARING -0,40mm/red/set

26

6698599

BOLT Was 6680729 - A

27

6680737

GEAR

28

6689243

GEAR, CRANKSHAFT

29

3974226

KEY

30

6689306

COMP. CRANKSHAFT

31

6680735

SLEEVE

32

6680738

MAIN BEARING std set

32

6680739

MAIN BEARING -0,20 mm set

32

6680740

MAIN BEARING -0,40 mm set

33

6680741

THRUST WASHER std

33

6680742

THRUST WASHER +0.20 mm

33

6680743

THRUST WASHER +0.40 mm

34

6680744

THRUST WASHER std

34

6680745

THRUST WASHER +0,20 mm

34

6680746

THRUST WASHER +0,40 mm

35

6698354

SWITCH, PRESS OIL ENG

36

6680667

PLUG
