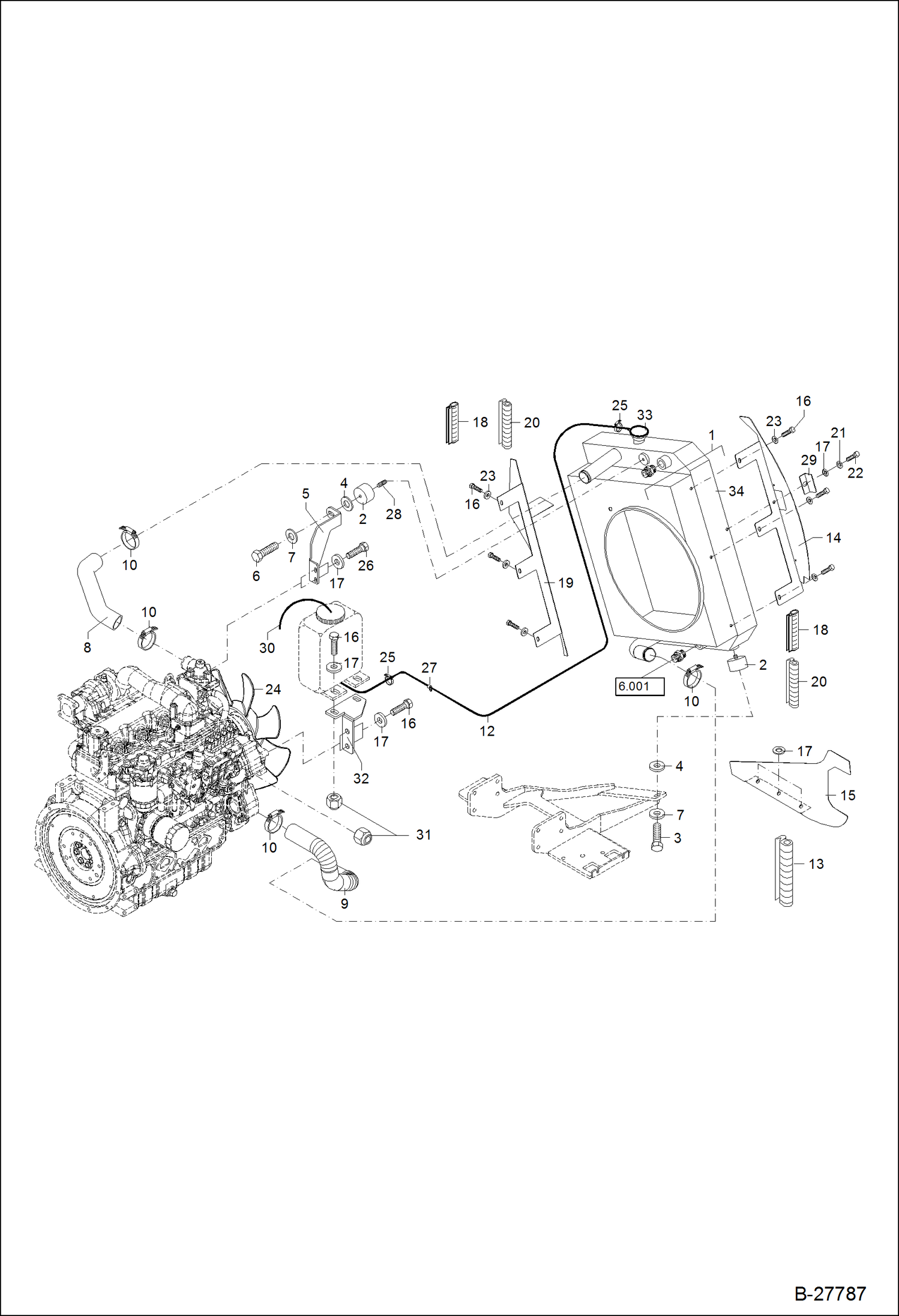

Запчасти Bobcat WL440 COMBINED OIL COOLER POWER UNIT

1

5010661070

COMBI RADIATOR COOLER

2

BEARING NLA - Was 5101290966 - A

3

1008707923

BOLT M 10X25

4

1307707020

WASHER 10,5

5

0453815042

BRACKET

6

1008707623

BOLT M 10X20

7

1343707059

WASHER 10,5X25X4

8

5803655603

HOSE

9

5803655605

HOSE

10

5660095305

HOSE CLIP

12

0465515052

HOSE

13

7023313

SEALING SECTION - A

14

0453815050

PLATE

15

0453815048

PLATE

16

1008707018

BOLT M 8X20

17

1343707057

WASHER 8,4

18

5354600030

SEALING SECTION

19

0453815045

PLATE

20

5354600028

SEALING SECTION

23

WASHER NLA - 8,1

24

5081657506

FAN

25

5603320320

HOSE CLIP

26

1008707318

BOLT M 8X25

27

5000095200

HOSE CLIP

28

1133341623

STUD M10X20

30

4035107000

HOSE

31

1212251011

NUT

32

0453815043

BRACKET

33

5010663093

VENTILATOR COVER

34

5010663091

CAP
