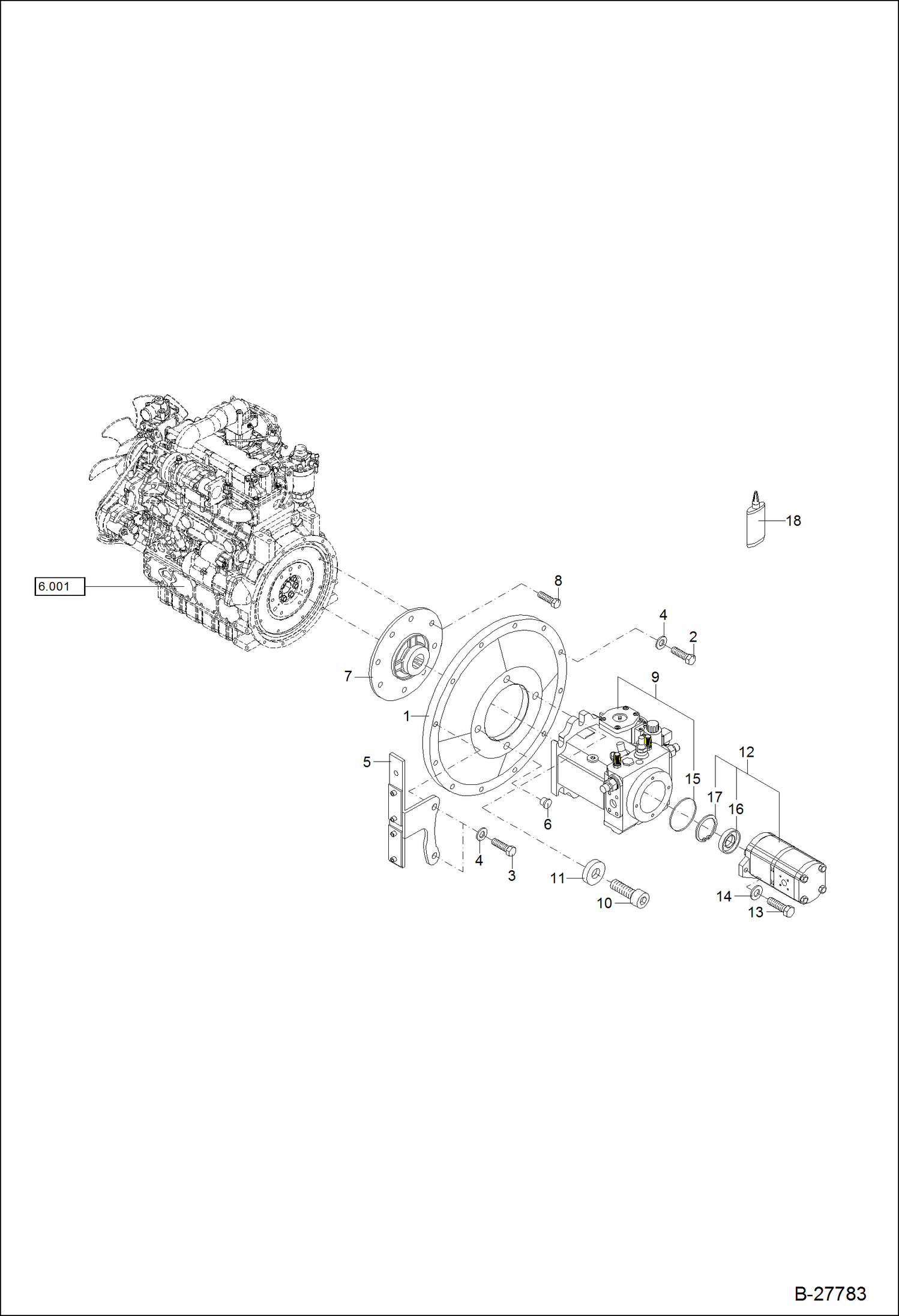

Запчасти Bobcat WL440 PUMPS MOUNTING POWER UNIT

1

5105660759

FLANGE

2

1011707247

BOLT

3

1011707347

BOLT

4

1290707020

WASHER 10,5

5

0451017005

BRACKET

7

5105660769

COUPLING

8

1011707147

BOLT

9

5364662425

VARIABLE DISPLACEMENT PUMP See Illustration HYDRAULIC PUMP/ NA2445 W/Ref. 15

10

1045707141

BOLT M 16X45

11

0396017002

WASHER 16,5X6X30

12

5100620015

GEAR TYPE PUMP W/Ref. 16 & 17

13

1008707030

BOLT M 12X35

14

1290707022

WASHER 13

15

1971956233

O-RING

16

5100659033

SHAFT SEAL

17

5100659034

CIRCLIP

18

MCS001035A

GLUE
