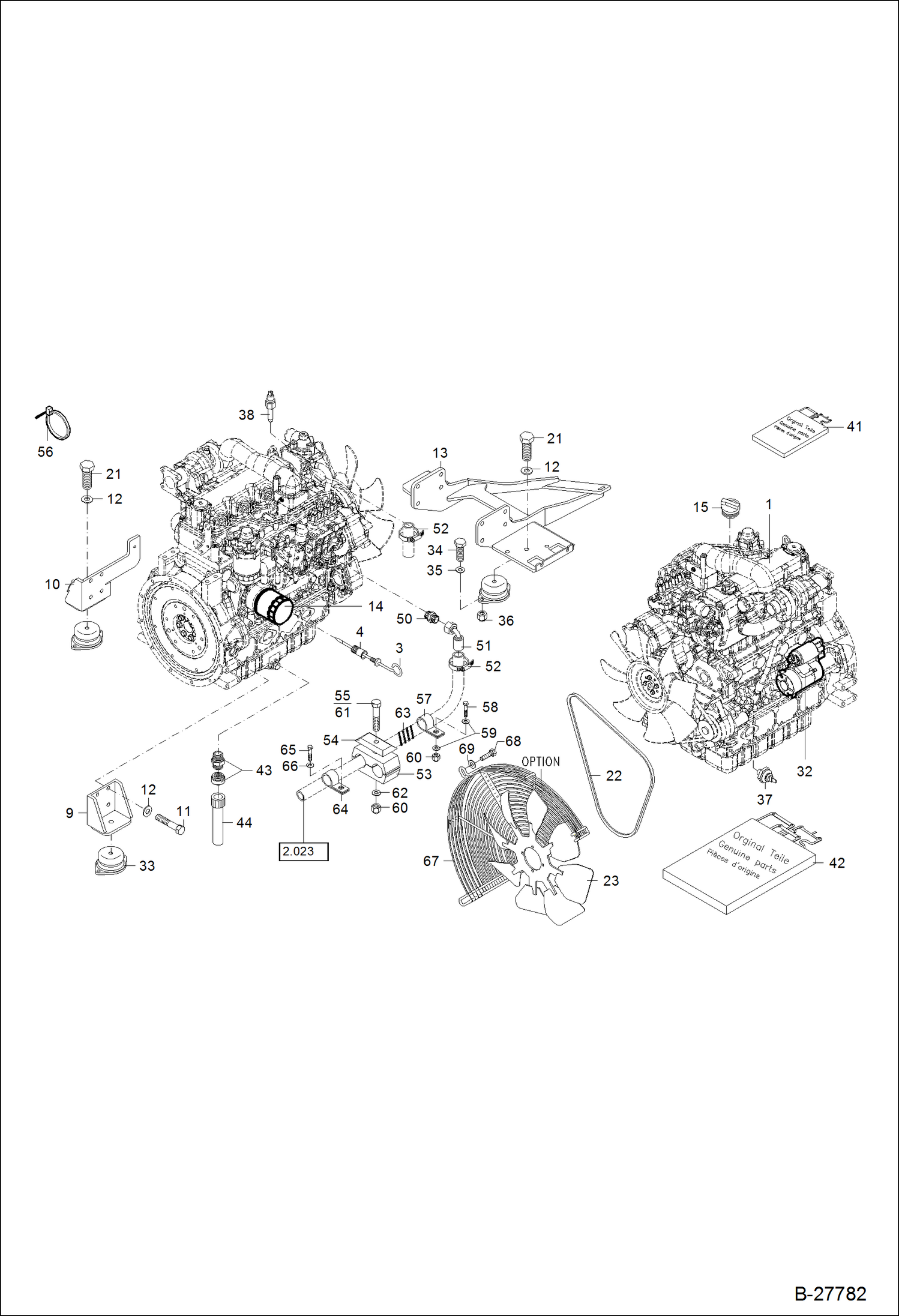

Запчасти Bobcat WL440 ENGINE ASSEMBLY POWER UNIT

1

ENGINE NLA - 5474010007

3

DIPSTICK NLA

4

GUIDE, DIPSTICK NLA

9

6453815020

ENGINE SUPPORT LEFT REAR

10

6453815025

ENGINE SUPPORT LEFT FRONT

11

1011707035

BOLT

12

1290707022

WASHER

13

0453815010

SUPPORT Was 6453815010 - A

14

FILTER, OIL ENG NLA

15

CAP, FILLER OIL NLA

21

1008707829

BOLT

22

BELT, FAN NLA

23

FAN NLA

32

STARTER NLA

33

5101290964

RUBBER BASE

34

1008707424

BOLT

35

1290707020

WASHER

36

1212251013

NUT

37

SWITCH, PRESS OIL ENG NLA

38

5411663474

TRANSMITTER, TEMP.

41

KIT, GASKET NLA

42

KIT, GASKET NLA

43

5366654593

DRAIN PLUG

44

5366654556

HOSE, DRAIN

50

1915060893

FITTING

51

5260063013

HOSE CONNECTOR

52

5603320315

CLIP

53

5660199788

HOSE CLIP

54

5660200230

COVER PLATE

55

1007707319

BOLT

56

5350650280

BINDER

57

5000210410

HOSE CLIP

58

1008707318

BOLT

59

1343707057

WASHER

60

1212251011

NUT

61

1007707919

BOLT

62

1290707018

WASHER

63

5000068300

WIRING HARNESS

64

5000210400

HOSE CLIP

65

1011707147

BOLT

66

1343707059

WASHER

67

5619001007

PROTECTION GRID

68

1008707018

BOLT

69

1343707057

WASHER
