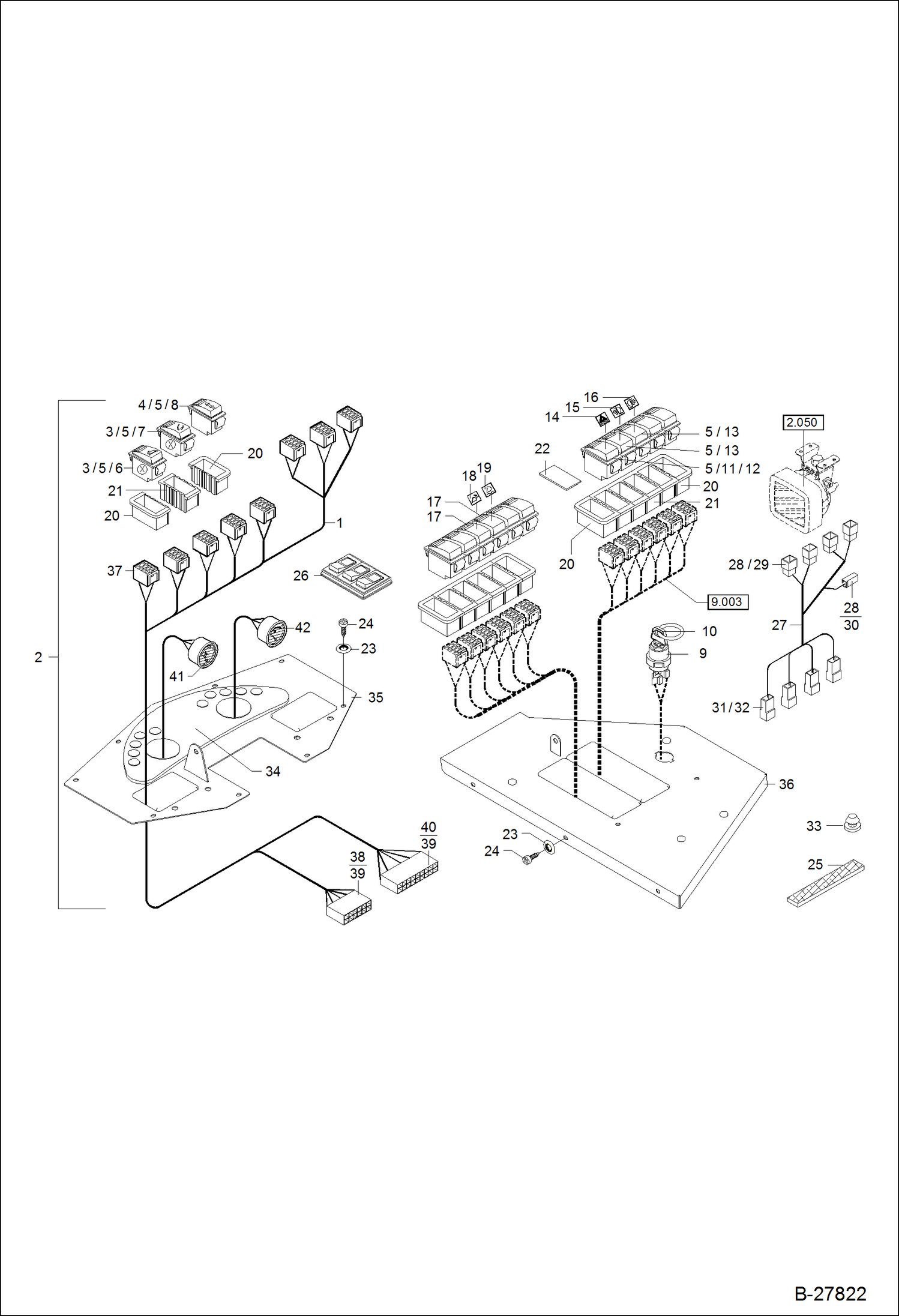

Запчасти Bobcat WL440 ELECTRIC INSTALLATION - DASH BOARD - CANOPY VERSIO ELECTRICAL SYSTEM

1

5110662038

WIRE HARNESS

2

5110662037

DASHBOARD CPL. Ref. 1-42

3

5050651352

ROCKER SWITCH

4

5050651372

REVERSING SWITCH

5

5050650226

LAMP

6

5358650341

SYMBOL DECAL

7

5358650248

DECAL

8

5358650287

SYMBOL

9

5050655525

IGNITION LOCK

10

5050650256

KEY, IGN

11

5050651355

SWITCH

12

5050650315

SOCKET WITH BULB

13

5050651363

ROCKER SWITCH

14

5358650236

SYMBOL

15

5358650240

SYMBOL

16

5358650296

SYMBOL

17

5578651582

SWITCH, REVERSE

18

5358650288

SYMBOL

19

5358650384

SYMBOL

20

5050650233

FRAME (END PIECE)

21

5050650232

FRAME (INTERMED. PIECE)

22

5050650230

COVER

23

1310000012

WASHER

24

1115020939

BOLT M 5,5X22

25

5354640125

NEOPRENE STRIP

26

5050651308

CAP, GUARD

27

0452741596

HARNESS, WIRE

28

5350246805

TERMINAL FEMALE

29

5350249513

PLUG

30

5350249536

HOUSING

31

5350249534

FLAT PLUG

32

5350247311

TERMINAL MALE 6,3

33

5653093572

BASE, RUBBER

34

5110662040

DISPLAY

35

6452741651

DASHBORD

36

6452741652

COVER

37

5050650225

HOUSING

38

5110662045

HOUSING (FEMALE)

39

5110662046

FEMALE TERMINAL

40

5110662044

HOUSING (FEMALE)

41

5110662030

OIL THERMOMETER

42

5110662029

INDICATOR
