Запчасти Bobcat WL440 ELECTRIC INSTALLATION - DASHBORD ELECTRICAL SYSTEM

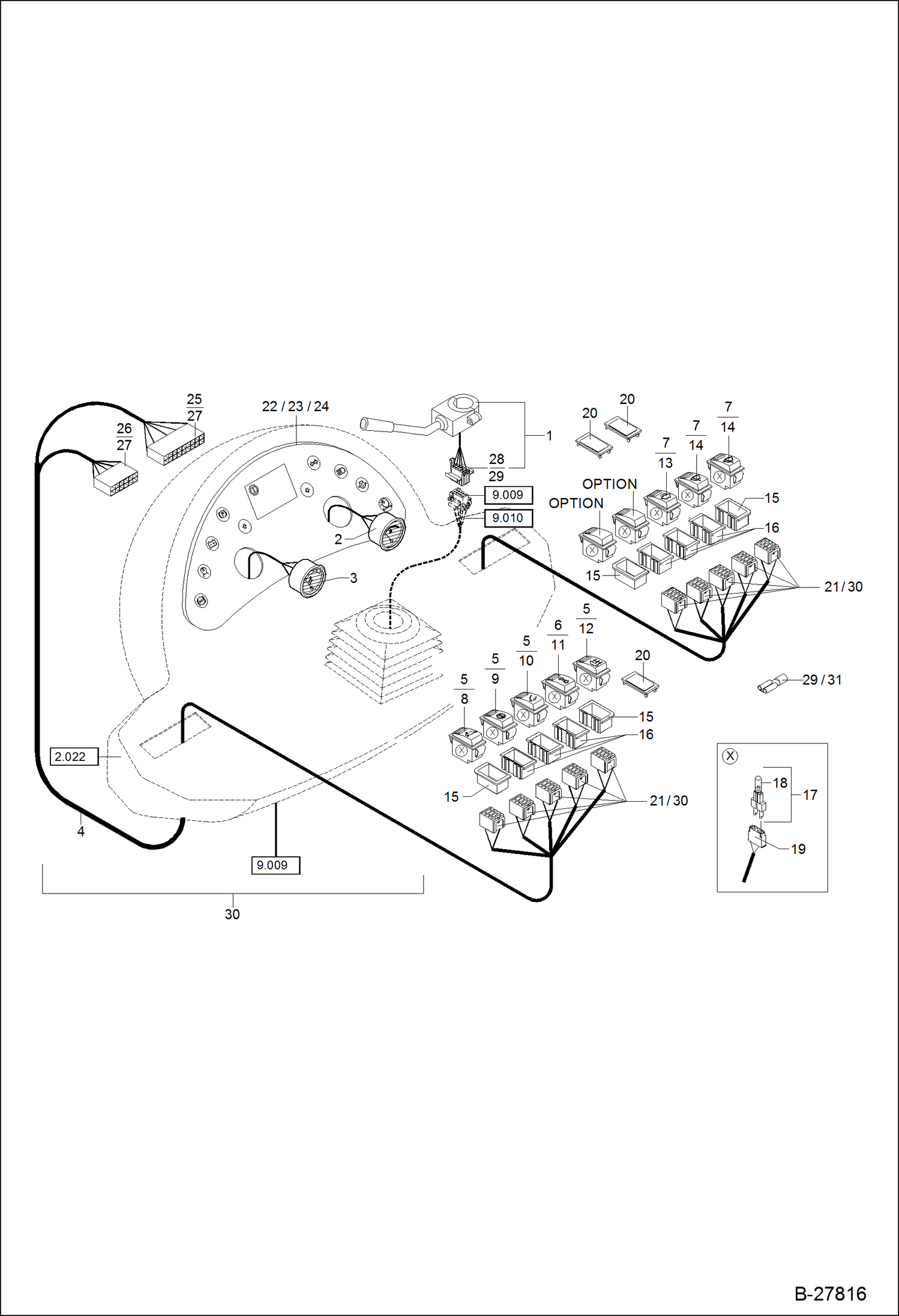

Схема запчастей Bobcat WL440 - ELECTRIC INSTALLATION - DASHBORD ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

5050651609

SWITCH, COLUMN STEERING

2

5110662029

INDICATOR

3

5110662030

OIL THERMOMETER

4

0455040085

HARNESS, WIRE

5

5050651352

ROCKER SWITCH

6

5050651372

REVERSING SWITCH

7

5050651370

ROCKER SWITCH

8

5358650341

SYMBOL DECAL

9

5358650329

SYMBOL

10

5358650248

DECAL

11

5358650287

SYMBOL

12

5358650355

SYMBOL

13

5358650352

SYMBOL

14

5358650231

SYMBOL

15

5050650233

FRAME (END PIECE)

16

5050650232

FRAME (INTERMED. PIECE)

17

5050650226

LAMP

18

1813000021

ROUND BULB

19

5050650231

HOUSING

20

5050650230

COVER

21

5050650225

HOUSING

22

5110662040

DISPLAY

23

1212251006

NUT M 4

24

1290707010

WASHER 4,3

25

5110662044

HOUSING (FEMALE)

26

5110662045

HOUSING (FEMALE)

27

5110662046

FEMALE TERMINAL

28

5350249554

HOUSING (FEMALE)

29

5350249552

CONNECTOR

30

5110662037

DASHBOARD CPL.

31

5350246805

TERMINAL FEMALE 6,3MM

Выбрано товаров: 31
