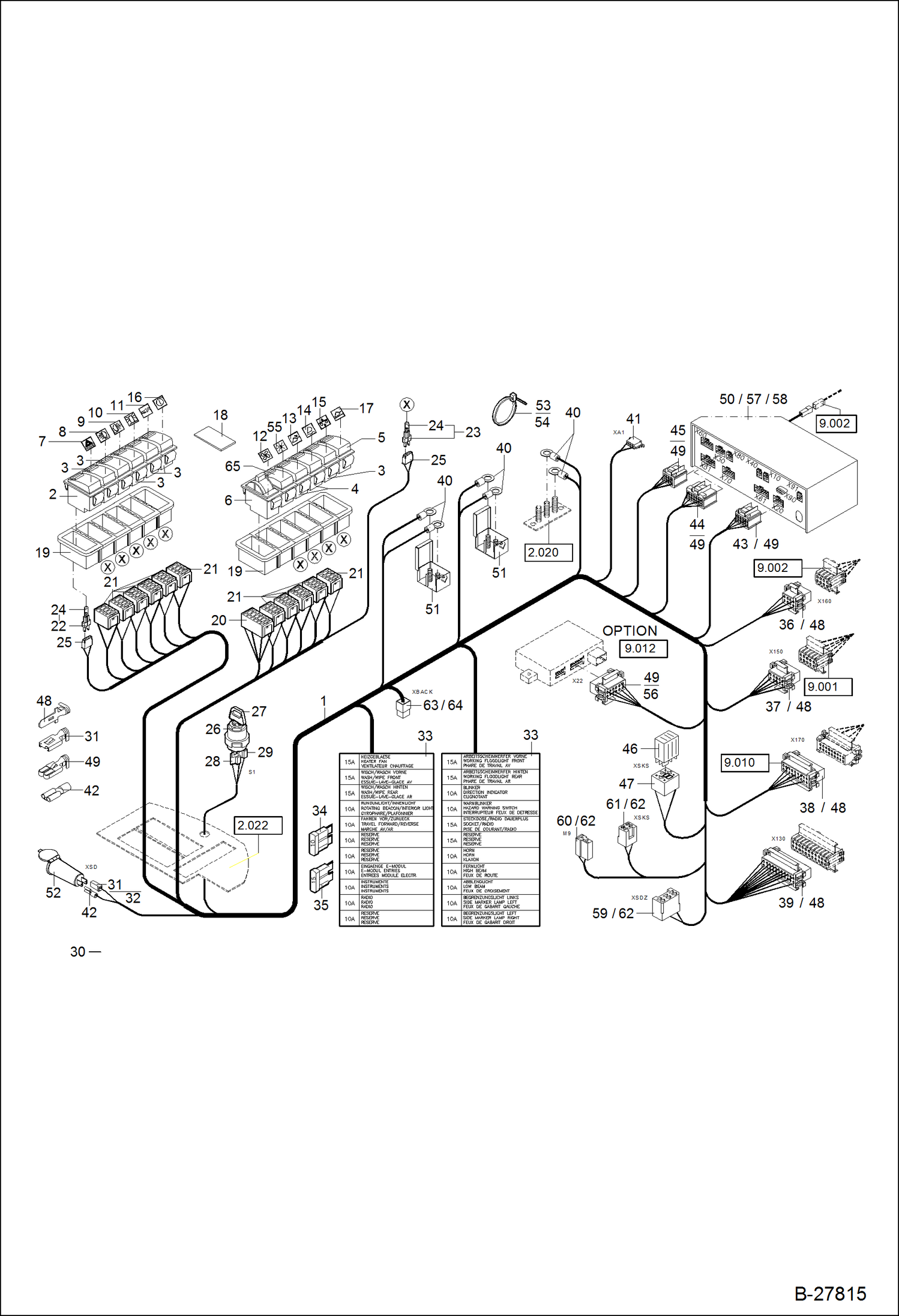

Запчасти Bobcat WL440 ELECTRIC INSTALLATION - THIMBLE S/N & Above ELECTRICAL SYSTEM

1

6451040314

HARNESS, WIRE Ref. 20-41 & 43-49

2

5050651355

SWITCH

3

5050651363

ROCKER SWITCH

4

5578651582

SWITCH, REVERSE

5

5578651582

SWITCH, REVERSE

6

5050650345

SWITCH

7

5358650236

SYMBOL

8

5358650240

SYMBOL

9

5358650296

SYMBOL

10

5358650237

SYMBOL OCC. LIGHT

11

5358650337

SYMBOL ''HORN RUECK

12

5050650313

SYMBOL

13

5358650288

SYMBOL

14

5358650281

SYMBOL

15

5358650307

SYMBOL

16

5358650377

SYMBOL

17

5358650377

SYMBOL

18

5050650230

COVER

19

5050650131

FRAME

20

5050650287

PLUG

21

5050650225

HOUSING

22

5050650315

SOCKET WITH BULB W/Ref. 24

23

5050650226

LAMP W/Ref. 24

24

1813000021

ROUND BULB

25

5050650231

HOUSING

26

5050655525

IGNITION LOCK W/Ref. 27

27

5050650256

KEY, IGN

28

5050650261

PLUG

29

5050650262

PLUG

30

5388662232

THERMOSTAT ADJUSTER

31

5350249579

FEM TERMINAL

32

5350249507

HOUSING (MALE)

33

5110660102

FUSE PANEL

34

5050650264

10A FUSE

35

5050650271

15A FUSE

36

5350249690

CONNECTOR

37

5350249691

CONNECTOR MALE

38

5350249692

CONNECTOR

39

5350249694

CONNECTOR

40

5050226937

RING TONGUE

41

5350249630

RADIO MALE PLUG

42

5350246805

TERMINAL FEMALE

43

5350249754

HOUSING (MALE)

44

5350249755

HOUSING (FEMALE)

45

5350249756

HOUSING (MALE)

46

5110662032

RELAY

47

5350249760

RELAY BRACKET

48

5350249695

MAL TERMINAL

49

5350249552

CONNECTOR

50

MODULE, CONTROL NLA

51

5050650420

CONTACT PLATE

52

5050076400

SOCKET (FEMALE)

53

5653093560

BINDER

54

5350650294

BINDER

55

5050651384

SWITCH INTERRUPTER

56

5350249685

CONNECTOR

57

1008707909

BOLT

58

1290707012

WASHER

59

5050651209

HOUSING (FEMALE)

60

5050651211

FEMALE

61

5350249508

PLUG

62

5350246805

TERMINAL FEMALE

63

5350249534

FLAT PLUG

64

5350247311

TERMINAL MALE

65

5050651384

SWITCH INTERRUPTER
