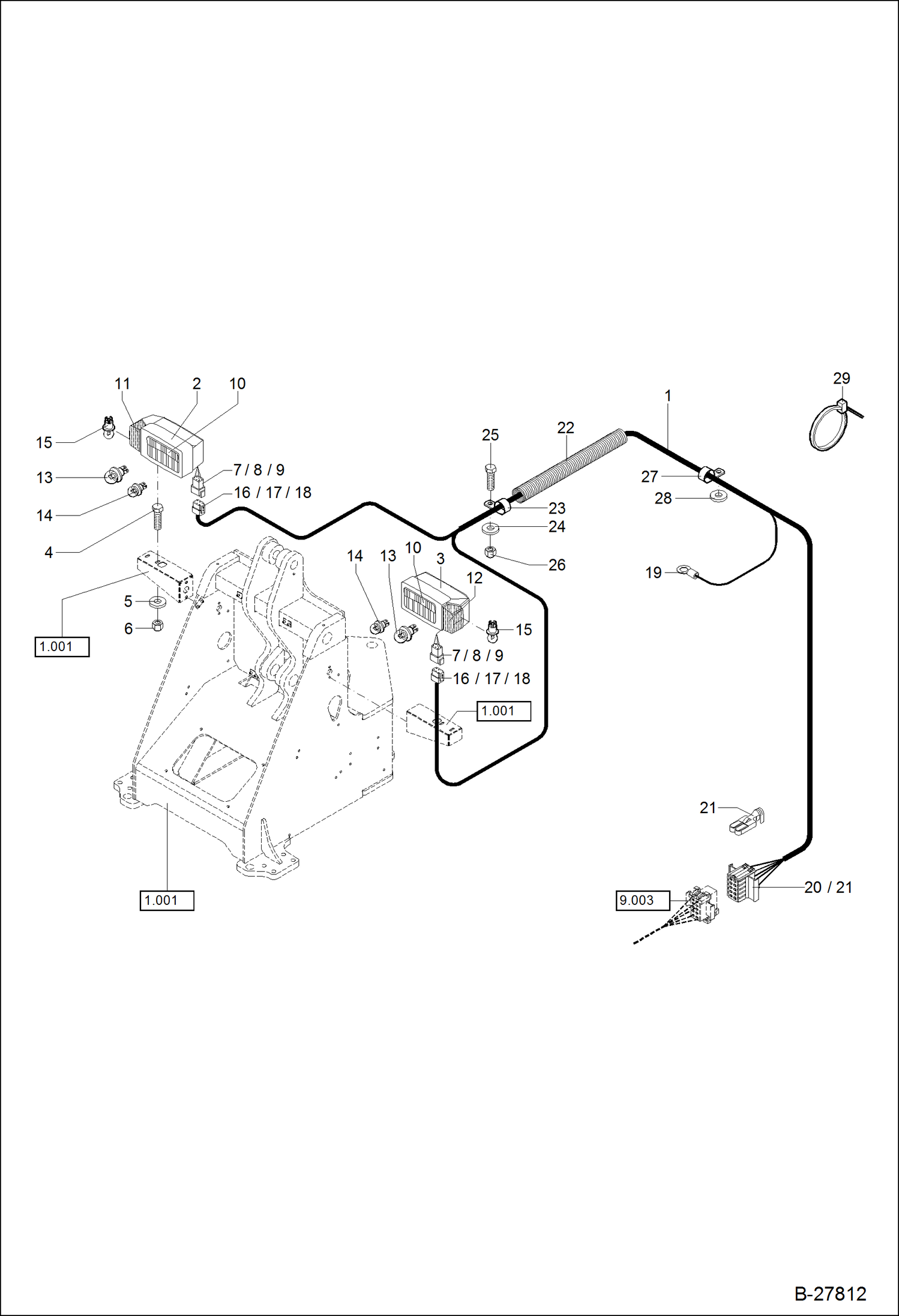

Запчасти Bobcat WL440 ELECTRIC INSTALLATION - FRONT CHASSIS ELECTRICAL SYSTEM

1

5110662034

WIRE HARNESS FRONT CH.

2

5110660147

HEAD LIGHT RIGHT Ref. 4-11

3

5110660148

HEAD LIGHT LEFT Ref. 4-10 & 12

4

1008707618

BOLT M 8X30

5

1343707057

WASHER 8,4

6

1212251011

NUT M 8

7

5350555342

HOUSING (MALE)

8

5350555344

LOCK

9

5350555321

MALE TERMINAL

10

5110660190

REFLECTOR

11

LENS, SIGNAL RT NLA - Order Ref. 2

12

LENS, SIGNAL LT NLA - Order Ref. 3

13

1813000022

HALOGEN BULB

14

1813000002

BULB SPHERICAL

15

1813000005

BULB (SIGNAL LIGHT)

16

5350555327

HOUSING (FEMALE)

17

5350555328

LOCK

18

5350555325

FEMALE TERMINAL

19

5350246610

CABLE CONNECTOR M 8 BLAU

20

5350249554

HOUSING (FEMALE)

21

5350249552

CONNECTOR

22

5399000294

HOSE PART

23

5000136710

HOSE CLIP

24

1290707018

WASHER 8,4

25

1008707318

BOLT M 8X25

26

1212251011

NUT M 8

27

5000096800

HOSE CLAMP

28

1343707057

WASHER 8,4

29

5653093560

BINDER 4,8X200
