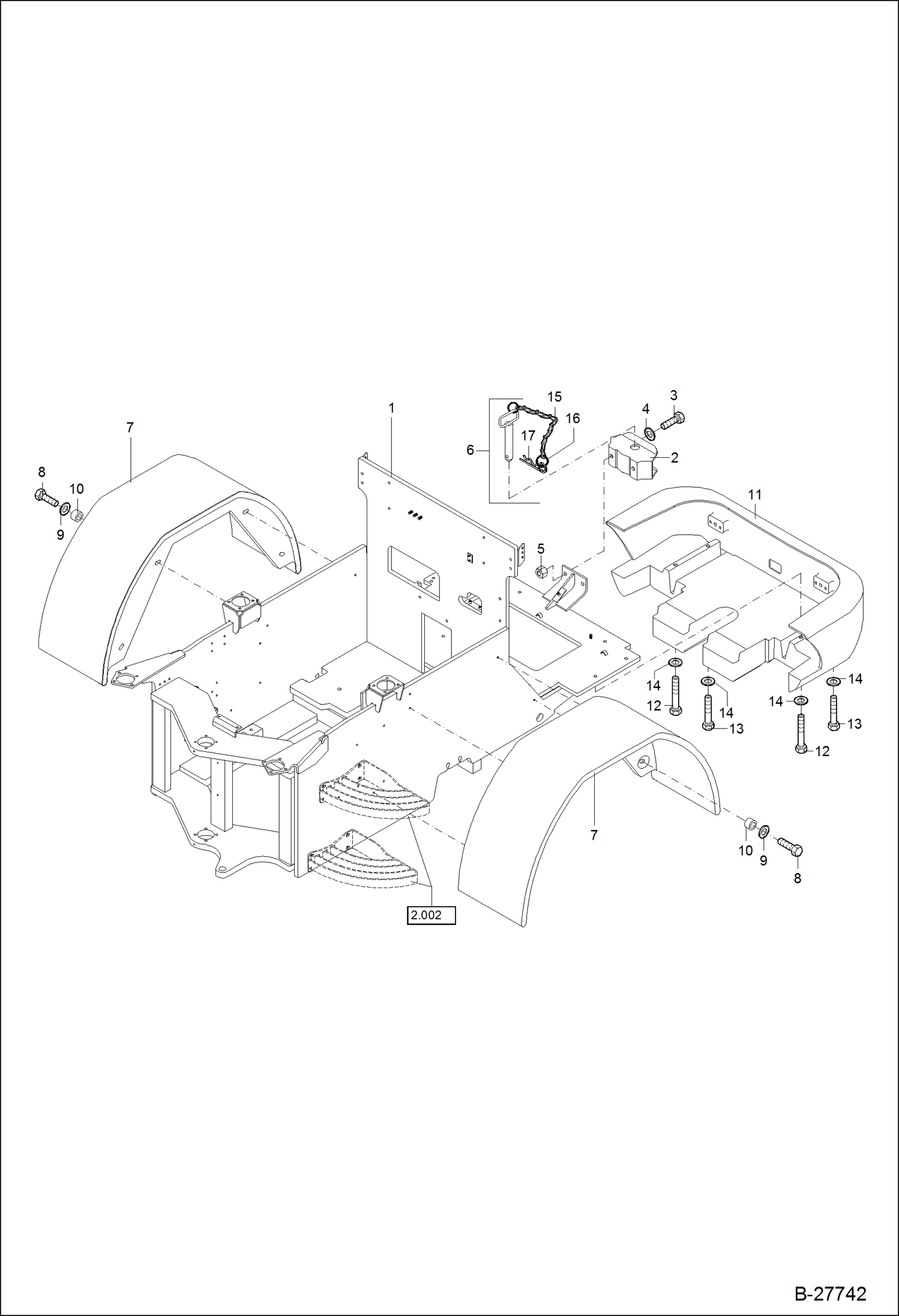

Запчасти Bobcat WL440 REAR CHASSIS, MUD GUARD MAIN FRAME

1

6453005001

REAR CHASSIS CPL.

2

0454006026

TRAILER COUPLING

3

1008707136

BOLT M 14X45

4

1343707063

WASHER 15X36X6

5

1212251015

NUT M 14

6

5603620631

PIN W/Ref. 15-17

7

5267010058

MUD GUARD

8

1008707424

BOLT M 10X40

9

1307707020

WASHER 10,5

10

0188814218

SPACE BUSHING

11

0453006021

COUNTERWEIGHT

12

1007707841

BOLT M 16X80

13

1007707441

BOLT M 16X60

14

1343707065

WASHER 17X40X6

15

5361324500

CHAIN

16

1557909026

RING

17

5603620632

JACK LATCH
