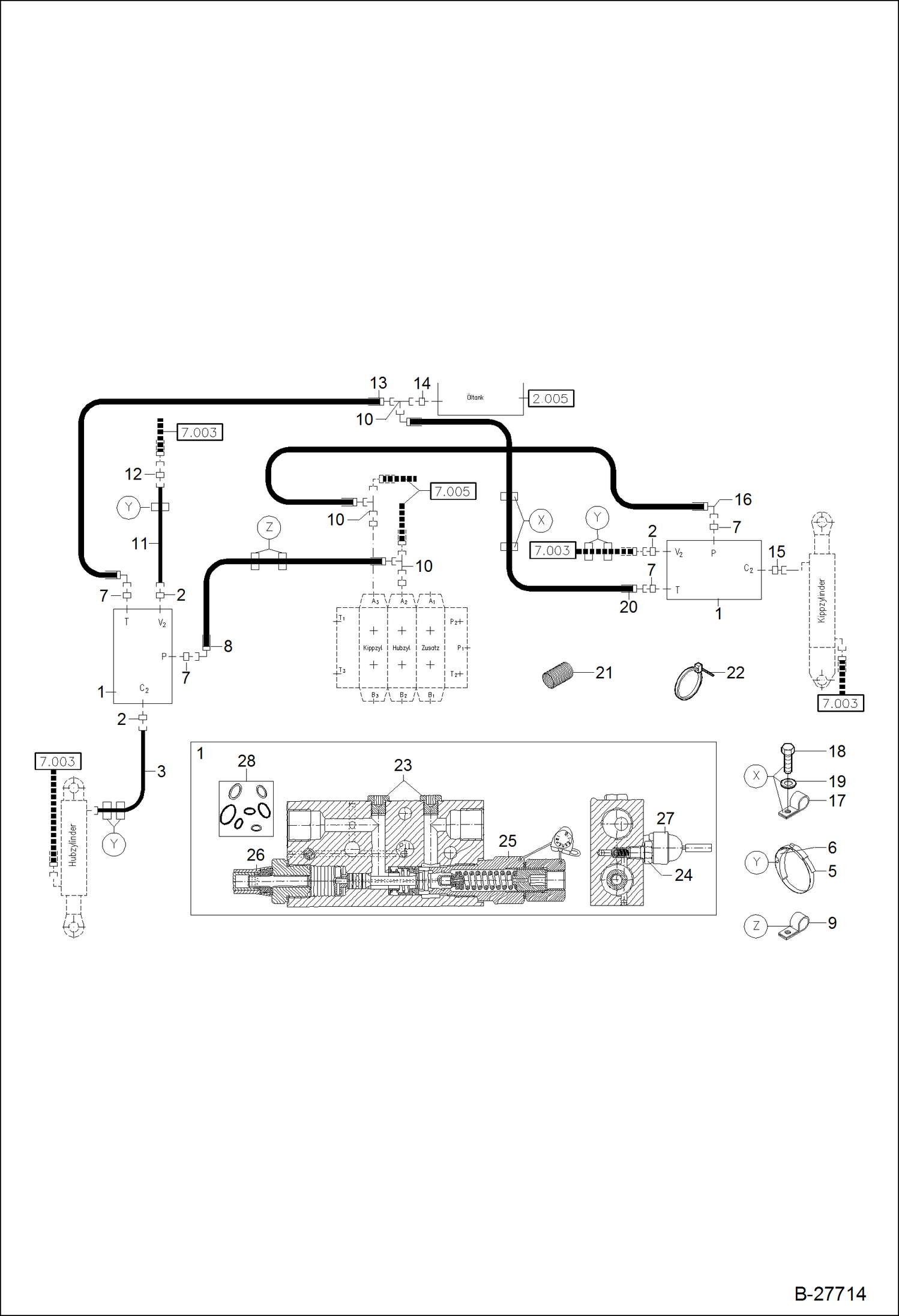

Запчасти Bobcat WL350 HYDRAULIC INSTALLATION- LOAD CHECK VALVE HYDRAULIC SYSTEM

1

5167659802

LOAD CHECK VALVE

2

1915000633

FITTING

3

0460763006

TUBE

5

5660095400

HOSE CLIP

6

0110012050

RUBBER LAYER

7

1915000753

FITTING

8

4506305371

HOSE

9

5000210410

HOSE CLIP 31,8

10

1919000689

FITTING

11

0461763008

TUBE

12

1915000419

FITTING

13

4506290351

HOSE

14

1915000641

FITTING

15

1938000834

FITTING

16

4506366351

HOSE

17

5000136800

HOSE CLIP 19,0

18

1007707214

BOLT M 6X45

19

1343707055

WASHER 6,4

20

4106380351

HOSE

21

5000068300

WIRING HARNESS

22

5653093560

BINDER

23

1912060451

PLUG

24

5167660073

BOLT

25

5167660074

VALVE INSERT

26

5167660075

VALVE INSERT

27

5167660055

ANTI-CAVITY VALVE

28

5167660077

SET OF SEALS
