Запчасти Bobcat WL350 HYDRAULIC INSTALLATION-LOADING EQUIPMENT 2 HYDRAULIC SYSTEM

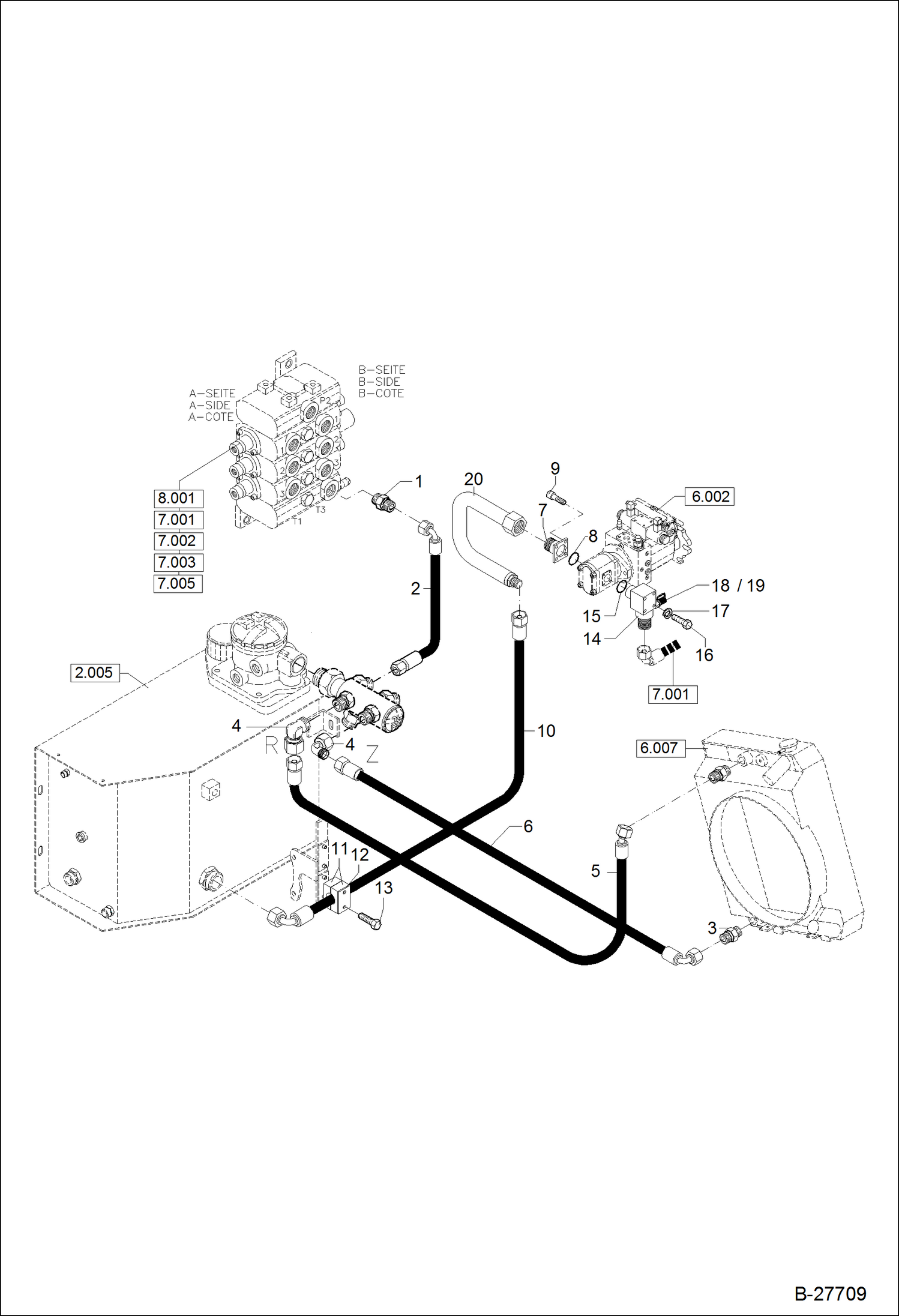

Схема запчастей Bobcat WL350 - HYDRAULIC INSTALLATION-LOADING EQUIPMENT 2 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

5260310273

FITTING

2

4125081156

HOSE

3

1915060567

FITTING

4

1924060156

ELBOW FITTING

5

4120060156

HOSE

6

4120070156

HOSE

7

5260310277

FLANGE CONNECTION

8

1970956525

O-RING 32X2,5

9

1045707318

BOLT M 8X25

10

4132150226

HOSE

11

5660199644

HOSE CLIP

12

5660200160

COVER PLATE

13

1007707714

BOLT M 6X70

14

5260310275

FLANGE CONNECTION

15

1970956625

O-RING 26X2,5X31

16

1007707414

BOLT M 6X55

17

1321707014

SPRING WASHER

18

5066234000

TEST FITTING W/Ref. 19

19

1912000676

SEAL RING

20

5260310360

PIPE

Выбрано товаров: 20
