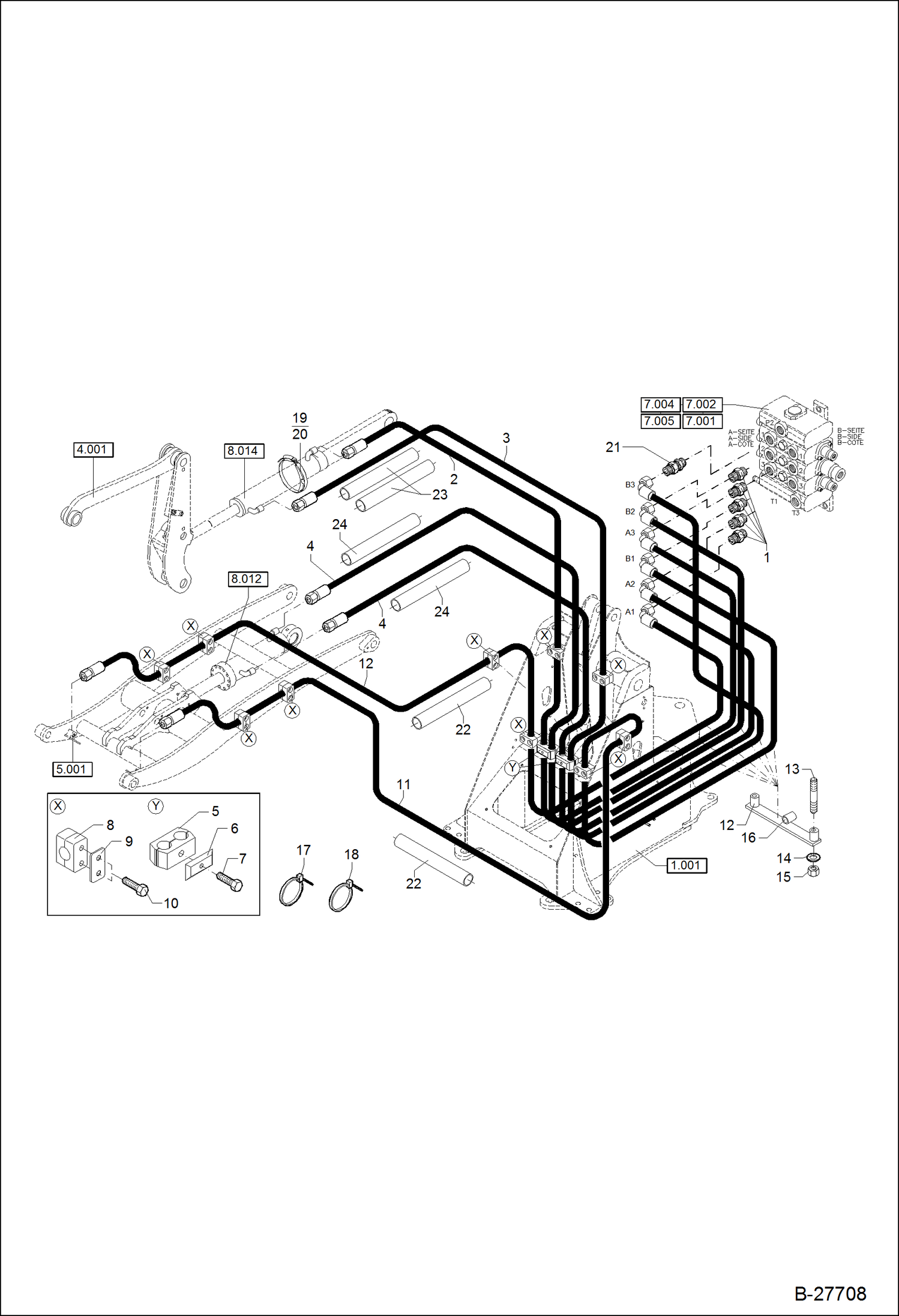

Запчасти Bobcat WL350 HYDRAULIC INSTALLATION-LOADING EQUIPMENT 1 HYDRAULIC SYSTEM

1

1915000633

FITTING

2

4260305374

HOSE

3

4260360374

HOSE

4

4260265374

HOSE

5

5660199785

HOSE CLIP

6

5660200230

COVER PLATE

7

1007707319

BOLT M 8X45

8

5660199784

HOSE CLIP

9

5660200130

COVER

10

1007707014

BOLT M 6X40

11

4260395374

HOSE

12

6336004001

HOSE CLIP

13

1123707019

STUD M 8X40

14

1343707057

WASHER 8,4

15

1212251011

NUT M 8

16

0157522026

HOSE

17

5653093560

BINDER 4,8X200

18

5350650280

BINDER 7,8X290

19

5660095400

HOSE CLIP 110-130

20

0110012050

RUBBER LAYER

21

0336012203

VALVE

22

0490607152

PROTECTION HOSE 750

23

0490607151

PROTECTION, HOSE 860

24

0452715091

PROTECTION, HOSE 920
