Запчасти Bobcat WL350 HYDRAULIC INSTALLATION - DRIVE HYDRAULIC SYSTEM

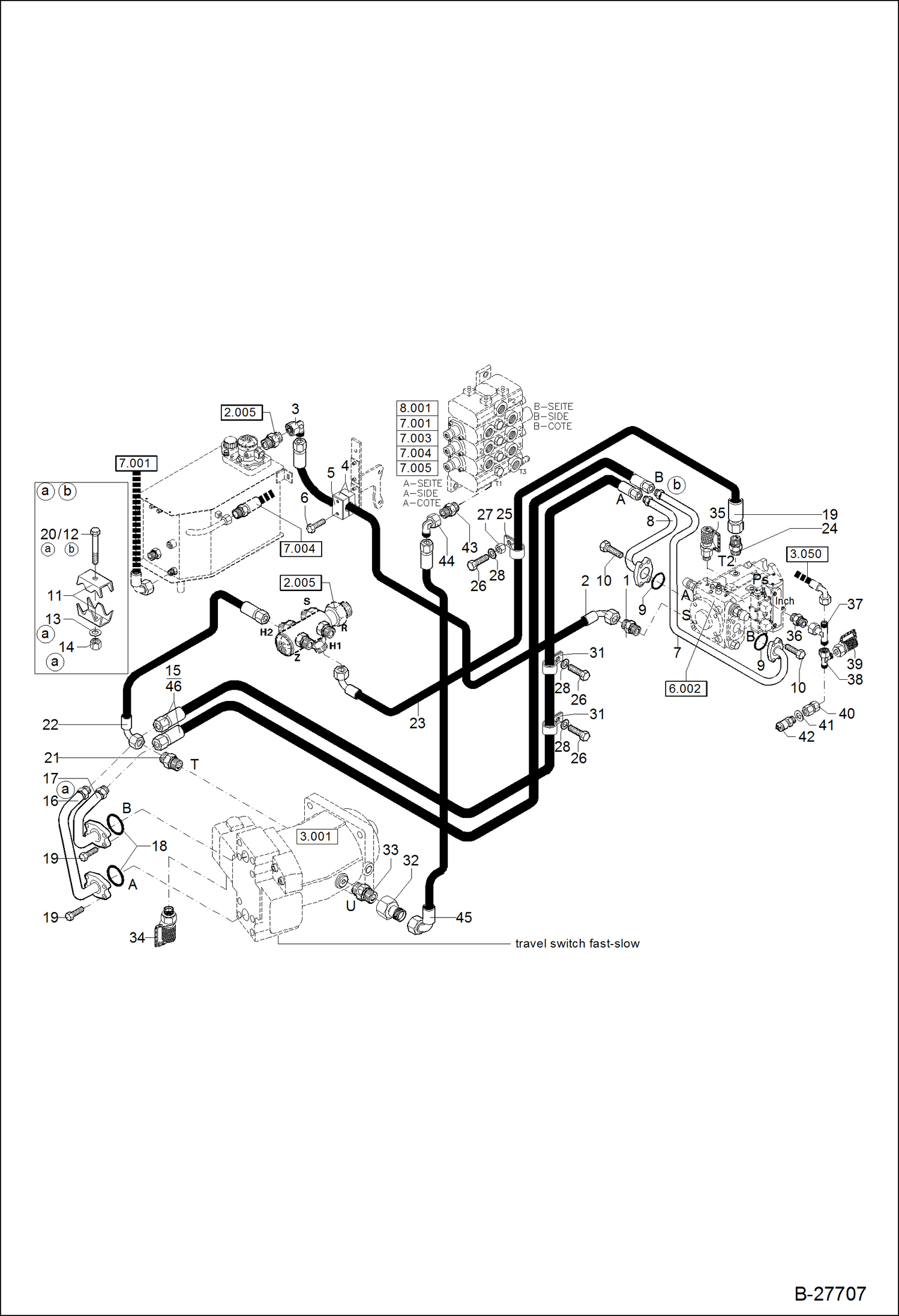

Схема запчастей Bobcat WL350 - HYDRAULIC INSTALLATION - DRIVE HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

1915060568

FITTING

2

4125117151

HOSE

3

1924060157

FITTING

4

5660199805

HOSE CLIP

5

5660200150

COVER

6

1007707514

BOLT M 6X60

7

5260310352

ELBOW

8

5260310269

ELBOW

8

INSTRUCTIONS NSS - Order 5260310269 - Was 5260310269-D - A

9

1971956318

O-RING 25,00X3,53X32,06

10

1008707124

BOLT M 10X30

11

0202627060

PIPE CLIP

12

1007707624

BOLT M 10X50

13

1290707020

WASHER 10,5

14

1212251013

NUT M 10

15

4470087493

HOSE

16

5260310195

INTERMEDIATE PIECE

17

5260310197

INTERMEDIATE PIECE

18

1971956322

O-RING 32,92X3,53X39,98

19

1008707230

BOLT M 12X40

20

1007707125

BOLT M 10X75

21

1915060672

FITTING

22

4120112156

HOSE

23

4120079156

HOSE

24

1915060667

FITTING

25

5000210420

HOSE CLIP

26

1008707618

BOLT M 8X30

27

1212251011

NUT M 8

28

1343707057

WASHER 8,4

31

5000096800

HOSE CLAMP

32

1934060168

FITTING

33

1915000759

FITTING

34

5066253810

CONNECTION, METER

35

5066253605

METER CONNECTION

36

1915060761

FITTING

37

1919060151

FITTING

38

1919060351

FITTING

39

5066234200

METER CONNECTION

40

1943000101

CONNECTION

41

1636815354

SEAL RING

42

7031402

SWITCH, PRESS Was 5472661573 - A

43

1915060262

FITTING

44

1924060153

FITTING

45

4110080374

HOSE

46

4470096493

HOSE 36KM/H

Выбрано товаров: 45
