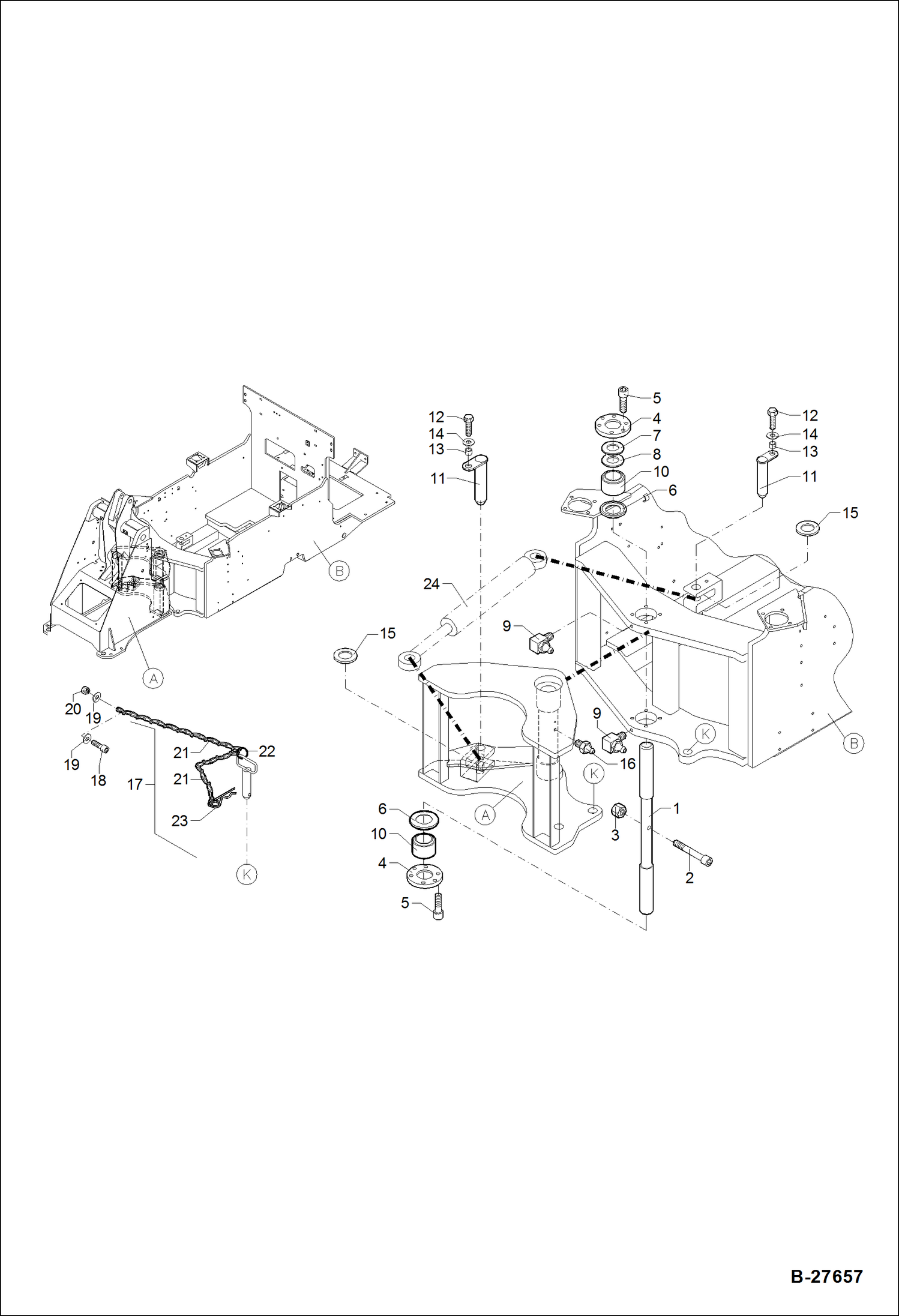

Запчасти Bobcat WL350 ARTICULATION MAIN FRAME

1

0393506002

PIN

2

1045707425

BOLT M 10X90

3

1212251013

NUT M 10

4

0393506003

COVER Was 6393506003 - A

5

1045907324

BOLT M 10X35

6

0393506005

RING 75X56X9

7

1309412316

SHIM 65X75X1,0

8

1309412407

SHIM 65X75X0,5

9

1608003006

GREASE NIPPLE

10

1950010413

LINKAGE BEARING

11

0185023010

PIN

12

1008707829

BOLT M 12X30

13

0333023033

SPACER BUSHING

14

1343707061

WASHER 13

15

1309412911

SHIM 30X42X1

16

1607003010

GREASE NIPPLE

17

5603620631

PIN Ref. 21-23

18

1008707318

BOLT M 8X25

19

1290707018

WASHER 8,4

20

1212251011

NUT M 8

21

5361324500

CHAIN

22

1557909026

RING

23

5603620632

JACK LATCH

24

CYLINDER, STEERING See Illustration HYDRAULIC CYLINDER - STEERING/ B27721
