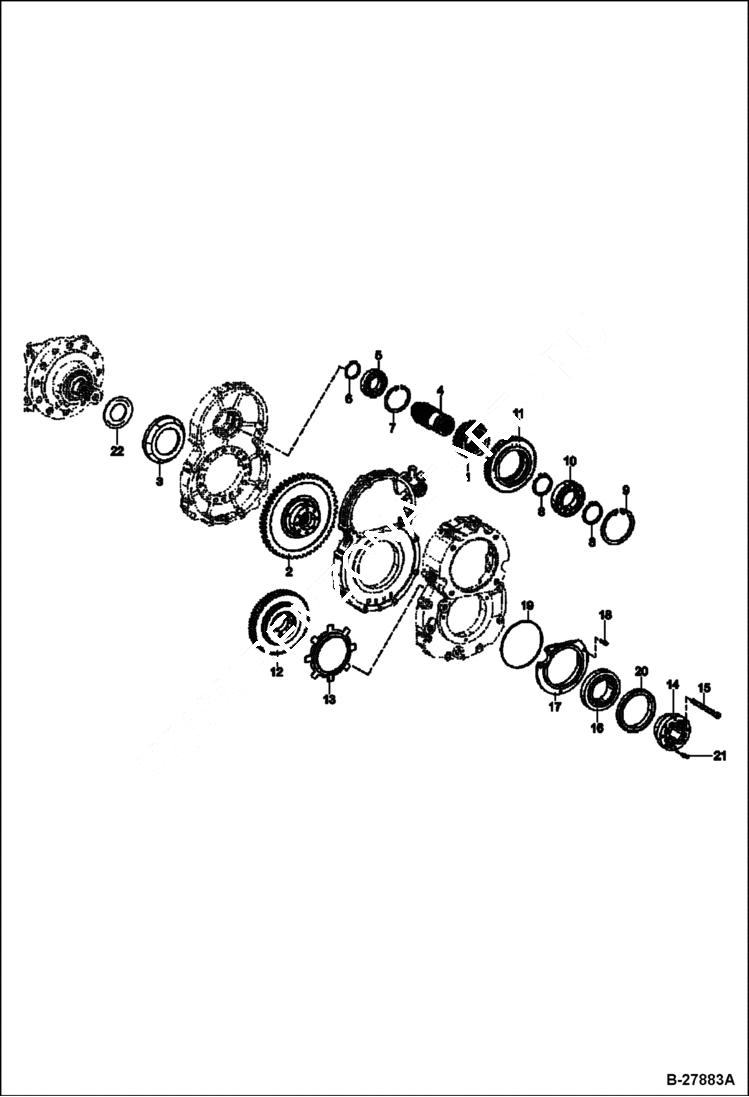

Запчасти Bobcat WL350 REDUCTION GEARS (Fast Travel) DRIVE TRAIN

1

5904648660

SPROCKET

2

5904648650

SPROCKET

3

5904648652

BAFFLE, OIL

4

SHAFT, DRIVE NLA

5

5904658596

BEARING BALL Was 5904658598 - A

6

1455622250

CIRCLIP

7

1456622369

CIRCLIP

8

5904657976

CIRCLIP

9

5904648662

CIRCLIP

10

5904648663

BEARING, ROLLER

11

5904648664

SPROCKET

12

5904648656

SPROCKET

13

5904658599

WASHER

14

5904648657

FLANGE

15

5904648658

BOLT

16

5904648629

BEARING, BALL

17

5904658442

COVER

18

1045907018

BOLT

19

5904658443

O-RING

20

5904658431

SEAL, SHAFT

21

STUD NLA

22

SHIM NLA - 1,65 mm
