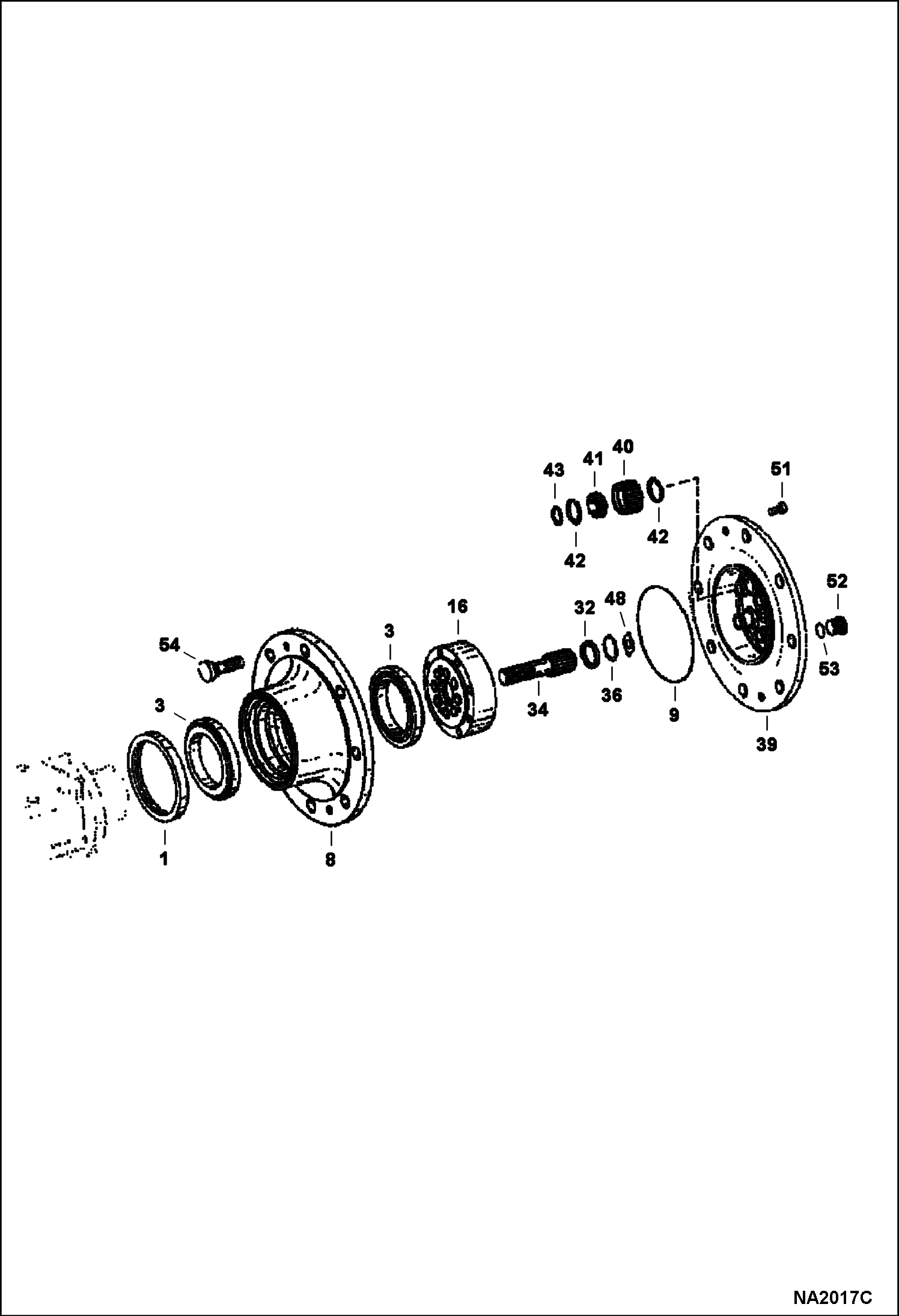

Запчасти Bobcat WL350 DRIVE HUBS DRIVE TRAIN

1

5904662631

SPACER Was 5904658571 - A

3

5904658572

BEARING

8

5904658778

HUB

9

5904658570

O-RING

16

5904662627

GEAR, RING INTERNAL Was 5904658560 - A

32

5904658561

WASHER, THRUST

34

5904662743

SHAFT Was 5904658767 - A

36

1455622838

RING, RETAINING

39

5904658777

SUPPORT, PLANETARY

40

5904658563

GEAR, PLANETARY

41

5904658564

BEARING

42

5904658565

RING, SNAP

43

1456622626

CIRCLIP

48

5904658566

WASHER 2,0 mm

48

5904658567

WASHER, THRUST 1,0 mm

48

5904658568

WASHER, THRUST 2,2 mm

51

1046311623

BOLT

52

1148201621

PLUG

53

1970956910

O-RING

54

5904646636

BOLT, WHEEL
