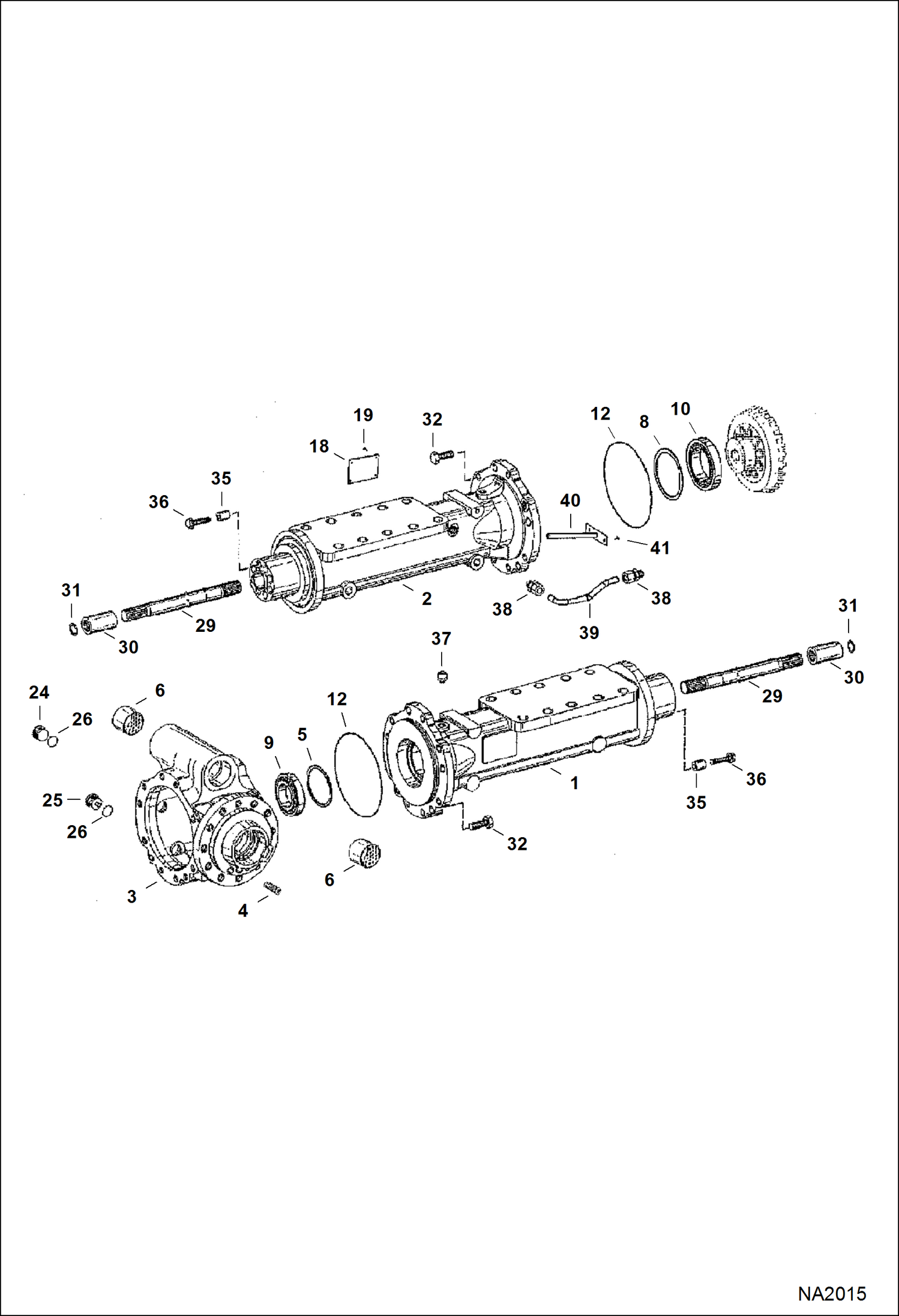

Запчасти Bobcat WL350 AXLE HOUSING & BEARINGS DRIVE TRAIN

1

HOUSING, AXLE NLA

2

HOUSING, AXLE NLA

3

CARRIER, AXLE NLA

4

STUD NLA

5

5904658004

WASHER 2,0 mm

5

5904658015

WASHER 1,6 mm

5

5904658014

WASHER 1,5 mm

5

5904658005

WASHER 1,4 mm

5

5904658008

WASHER 1,2 mm

5

5904657991

WASHER 1,0 mm

5

5904657992

WASHER 0,8 mm

5

5904658006

WASHER 0,6 mm

5

5904657993

WASHER 0,5 mm

5

5904658007

WASHER 0,4 mm

5

5904658009

WASHER 0,3 mm

5

5904657994

WASHER 0,2 mm

5

5904657995

WASHER 0,1 mm

5

5904658010

WASHER 0,7 mm

5

5904658011

WASHER 0,9 mm

5

5904658012

WASHER 1,1 mm

5

5904658013

WASHER 1,3 mm

6

5904657954

BUSHING

8

5904658547

WASHER 0,2 mm

8

5904658548

WASHER 0,5 mm

8

5904658549

WASHER 1,2 mm

8

5904658550

WASHER 2,0 mm

8

5904658555

WASHER 1,0 mm

9

5904658771

BEARING

10

5904658552

BEARING, ROLLER

12

1970956638

O-RING

18

5904658409

IDENTIFICATION PLATE

19

5904658272

GROOVED DRIVE STUD

24

1148201621

PLUG W/Ref. 26

25

5904658169

PLUG W/Ref. 26

26

1970956980

O-RING

29

5904658776

SHAFT

30

5904662625

COUPLER, SPLINED Was 5904658770 - A

31

1456622629

CIRCLIP

32

1008341036

BOLT

35

5904657813

BUSHING

36

BOLT NLA

37

VENT, BREATHER NLA

38

FITTING, ADAPTER NLA

39

PIPE NLA

40

PIPE NLA

41

GROOVED DRIVE STUD NLA
