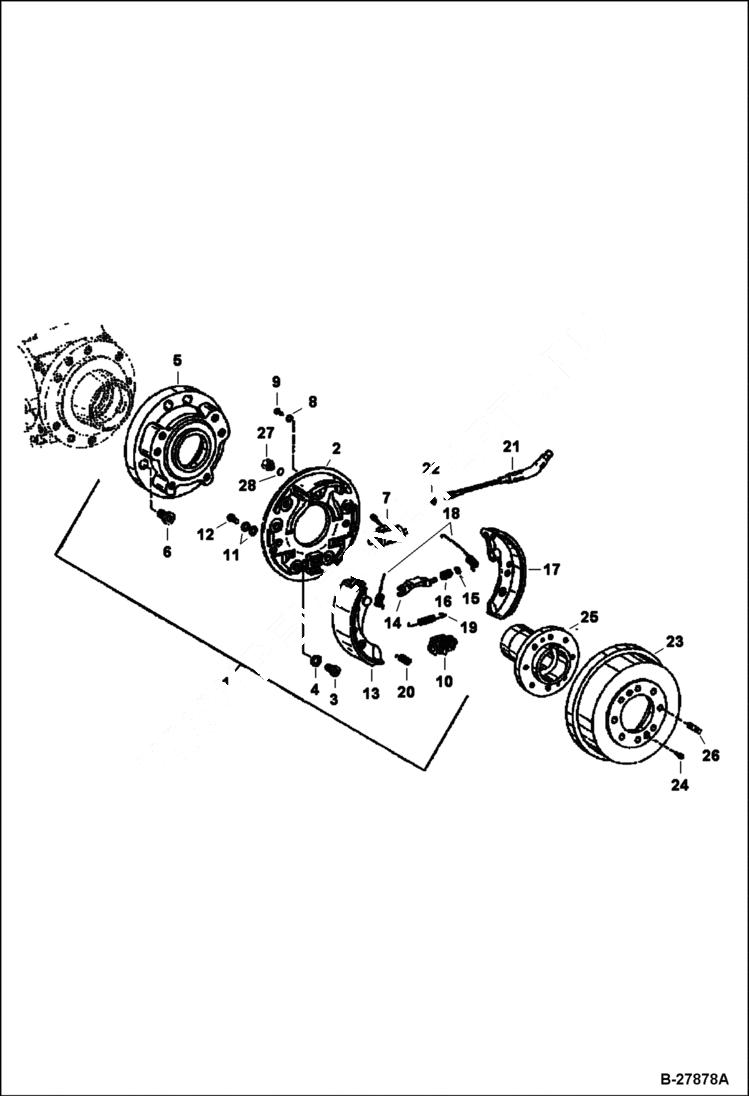

Запчасти Bobcat WL350 BRAKE (Replacement Axle - 5904661666) DRIVE TRAIN

1

5904658829

BRAKE ASSY Ref. 2-20 - Was 5904658325 - A

2

5904658638

PLATE, BRAKE

3

1045907030

BOLT M12X35

4

5904658637

WASHER

5

5904662681

SUPPORT, BRAKE PLATE

6

5904662682

BOLT M14X45

7

5904658328

CYLINDER, BRAKE

8

1323707014

WASHER, SPRING

9

1008707213

BOLT M6X20

10

5427656701

ADJUSTER,BRAKE Was 5904658329 - A

11

5904658467

WASHER, LOCK

12

5904662683

BOLT M10X30

13

5904658332

SHOE, BRAKE

14

5904658510

TAPPET

15

1290707020

WASHER

16

5427656716

SPRING Was 5904658513 - A

17

5904658327

SHOE, BRAKE

18

5904658511

SPRING

19

5904658512

SPRING

20

5904658830

SPRING

21

5904658831

CABLE, BRAKE EMERGENCY

22

5904658466

WASHER, SPRING

23

5904658331

DRUM, BRAKE

24

1045707113

BOLT M6X18

25

5904662684

FLANGE, DRIVE

26

1124907030

STUD

27

5904658468

FITTING

28

5904658812

RING, SEAL
