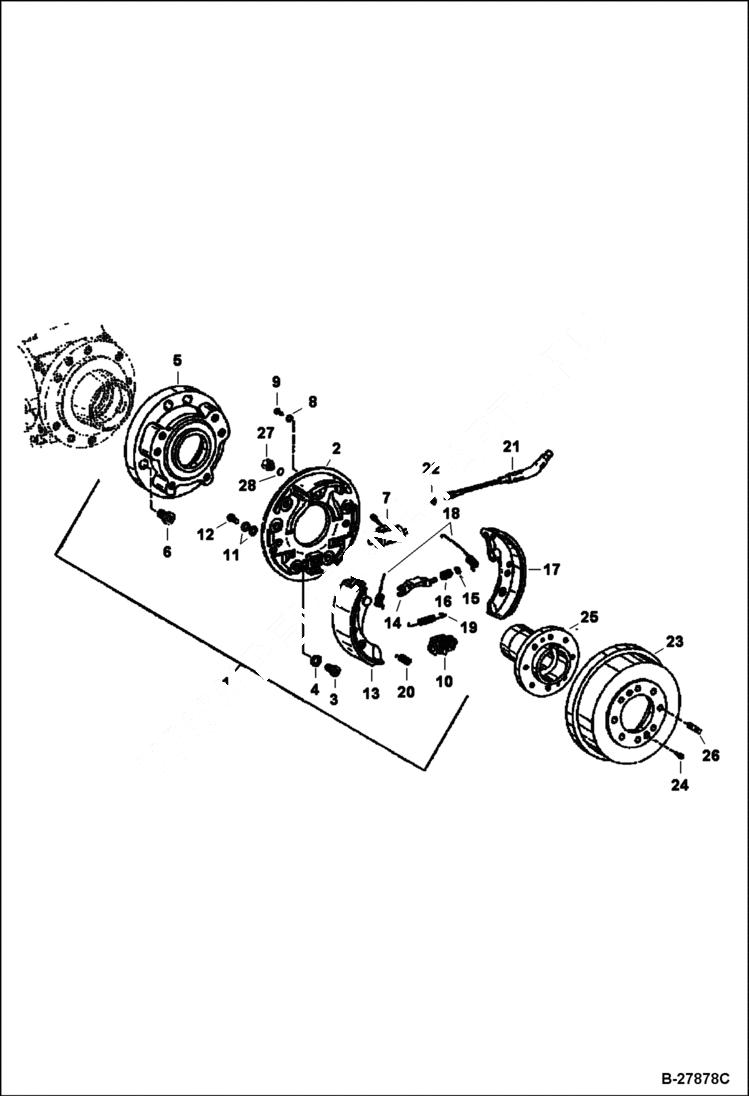

Запчасти Bobcat WL350 BRAKE DRIVE TRAIN

1

BRAKE NLA

2

ANCHOR, BRAKE NLA

3

CAP NLA

4

5904658637

WASHER

5

5904661496

PLATE, BRAKE ANCHOR

6

1045707136

BOLT

6

1045311835

BOLT

7

5904658328

CYLINDER, BRAKE

8

1323707014

WASHER, SPRING

9

1008707213

BOLT

10

ADJUSTER, BRAKE NLA

11

WASHER, LOCK NLA

12

5904658118

BOLT

13

5904658332

SHOE, BRAKE

14

5904658510

TAPPET

15

1290707020

WASHER

16

5427656716

SPRING Was 5904658513 - A

17

5904658327

SHOE, BRAKE

18

5904658511

SPRING

19

5904658512

SPRING

20

SPRING NLA

21

CABLE NLA

22

SPRING NLA

23

5904658331

DRUM, BRAKE

24

1045707113

BOLT

25

5904658260

FLANGE, INPUT

26

5904658696

SEAL

27

5904658468

FITTING

28

RING, SEALING NLA
