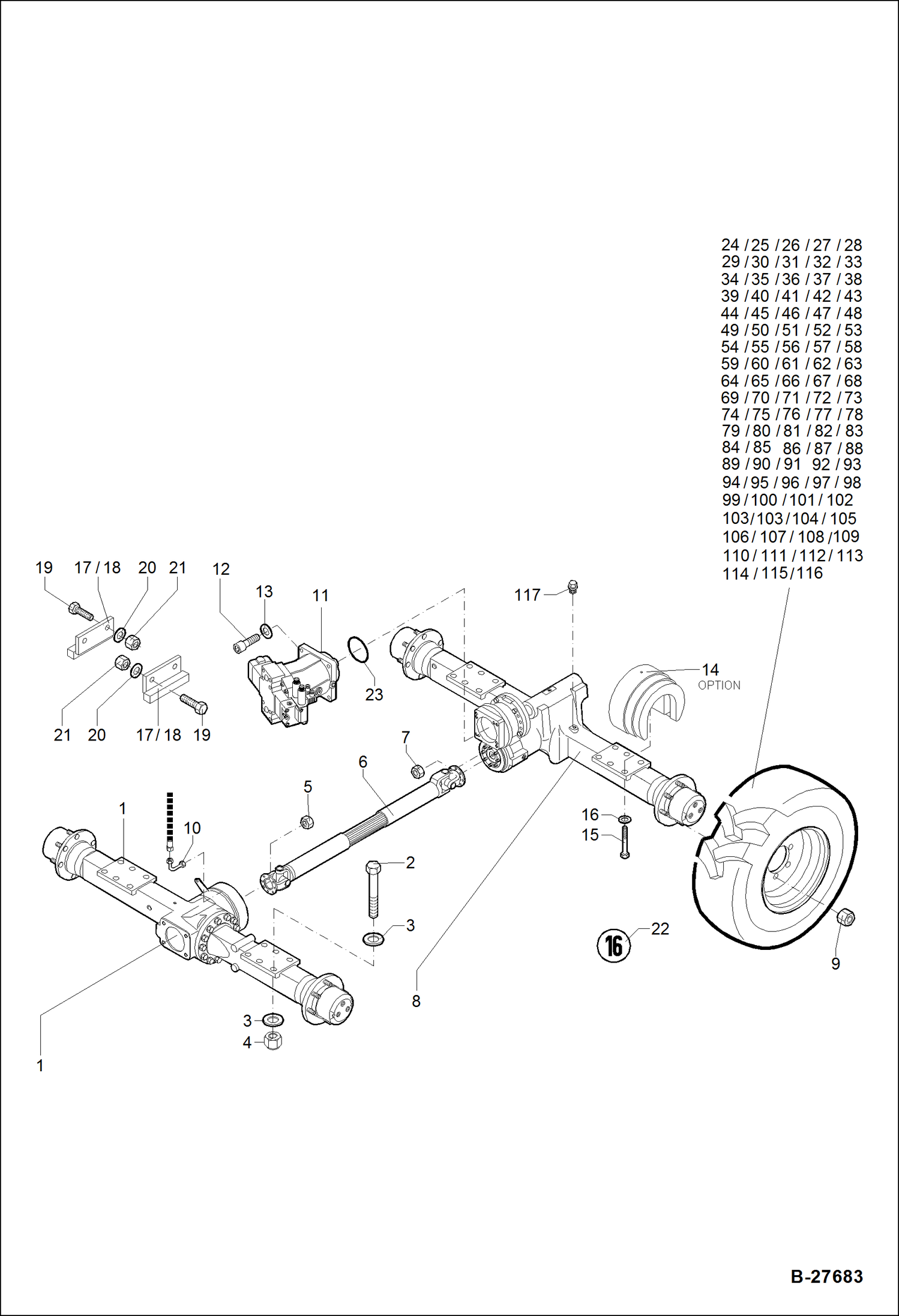

Запчасти Bobcat WL350 AXLE, TIRES (Standard) DRIVE TRAIN

1

AXLE See Illustration FRONT AXLE / NA2011 See Illustration DIFFERENTIAL GEARS/ B27869D See Illustration BRAKE/ B27878C See Illustration DRIVE HUBS/ NA2017 See Illustration AXLE HOUSING & BEARINGS/ NA2

1

5904661666

AXLE See Illustration FRONT AXLE/ B27867 See Illustration DIFFERENTIAL GEARS/ B27869 See Illustration BRAKE/ B27878 See Illustration AXLE HOUSINGS/ B27873 See Illustration DRIVE HUBS/ B27876 See Illus

2

1007707553

BOLT M 20X90

3

1290707033

WASHER 21X37X3

4

1212251018

NUT M 20

5

1214907013

NUT M 10

6

5200661104

CARDAN SHAFT

7

1214907411

NUT M 8X1

8

AXLE See Illustration REAR AXLE / NA2012 See Illustration DIFFERENTIAL GEARS/ B27869E See Illustration REDUCTION GEARS/ B27881A See Illustration DRIVE HUBS/ NA2017B See Illustration REDUCTION GEAR HOU

8

5904661671

AXLE See Illustration REAR AXLE/ B27868 See Illustration DIFFERENTIAL GEARS/ B27869B See Illustration DIFFERENTIAL BEARINGS/ B27871 See Illustration REDUCTION GEARS/ B27881 See Illustration DRIVE HUBS

9

1270707618

NUT M 20X1,5

10

5904660751

BRAKE LINE

11

5364664185

HYDR. MOTOR

11

5689659816

MOTOR, HYDR.

12

1045707430

BOLT M 12X45

12

1045707230

BOLT M 12X40

13

1290707022

WASHER 13

14

0452219002

WEIGHT, REAR AXLE

15

1008707241

BOLT M 16X50

16

1343707065

WASHER 17X40X6

17

6460611002

OSCILLATING STOP for Ref. 24, 36, 40, 44, 56, 60 & 68

18

6461616002

OSCILLATING STOP for Ref. 76, 80 & 84

19

1007707830

BOLT M 12X60

20

1343707061

WASHER 13

21

1212251014

NUT M 12

22

0338616003

MARKING PLATE 16KM/H

23

1970956137

O-RING 140X3

24

6452290000

WHEEL 375/75 R20 XZSL - Ref. 25-27

25

5153658416

TIRE 375/75 R20 XZSL

26

5307643528

RIM E=58 11X20

27

5153632954

VALVE

28

TIRE NLA - MITAS 12.5-20 MPT 10 PR MPT-04 - Ref. 29-31

29

5153660282

TIRE MITAS 12.5-20 MPT 10 PR MPT-04

30

5307656066

RIM E=30 11X20

31

5153643505

VALVE

32

6393794500

WHEEL 10PR 12,5-20MPT TL - Ref. 33-35

33

TIRE NLA - 12.5-20 TG32 MPT NYTL 10PR - Was 5153632150 - A

34

5307656066

RIM E=30 11X20

35

5153643505

VALVE

36

6461795500

WHEEL 12.5 R20/16PRSPPG8MPT - Ref. 37-39

37

5153661340

TIRE 12.5 R20/16PRSPPG8MPT

38

5307656066

RIM E=30 11X20

39

5153643505

VALVE

40

6393795000

WHEEL R14.5-20 TL TGE58 10PR - Ref. 41-43

41

TIRE NLA - 14.5-20 TL TG10PR - Was 5153638700 - A

42

5307643528

RIM E=5811X20

43

5153643505

VALVE

44

6393795500

WHEEL DUNLOP14.5-20 TL 10TR TG32 - Ref. 45-47

45

TIRE NLA - DUNLOP 14.5-20 TL 10TR E91 - Was 5153661127 - A

46

5307643528

RIM E=58 11X20

47

5153643505

VALVE

48

6338994500

WHEEL MICHELIN 335/80 R18XM27 39BTL - Ref. 49-51

49

5153658385

TIRE 335/80 R18XM27 139BTL

50

5307656032

RIM E=40 11X18

51

5153643505

VALVE

52

6393793500

WHEEL MICHELIN 335/80 R20XM27141B TL - Ref. 53-55

53

5153658387

TIRE 335/80 R20XM27 141B TL

54

5307656066

RIM E=58 11X20

55

5153643505

VALVE

56

6461793000

WHEEL 335/80R20MPT70E - Ref. 57-59

57

5153661310

TIRE 335/80R20MPT70E

58

5307656066

RIM E=30 11X20 VS

59

5153643505

VALVE 50MSW TR 618?

60

6393796000

WHEEL MICHELIN 375/75 R20XM27143B TL - Ref. 61-63

61

5153644460

TIRE 375/75 R20XM27 143B TL

62

5307643528

RIM E=58 11X20

63

5153643505

VALVE

64

6393794000

WHEEL DUNLOP335/80 R20 EM SP T9 TL - Ref. 65-67

65

5153660265

TIRE 335/80 R20 EM SP T9 TL

66

5307656066

RIM E=30 11X20

67

5153643505

VALVE

68

WHEEL NLA - DUNLOP 365/80R20TL SPT9 - Ref. 69-71 - Was 6393796500 - A

69

5153661150

TIRE 365/80R20TL SPT9

70

5307643528

RIM E=58 11X20

71

5153643505

VALVE

72

6461793500

TIRE 133E CONTI 365/70 R18 MPT70 - Ref. 73-75

73

5153661300

RIM 133E CONTI 365/70 R18 MPT70

74

5307656032

RIM E=40 11X18

75

5153643505

VALVE

76

6393797000

WHEEL DUNLOP405/70 R20 SP T9 TL L - Ref. 77-79

77

5153658393

TIRE 405/70 R20 SP T9 TL L

78

5307643515

RIM E=5513X20

79

5153643505

VALVE

80

6461794000

WHEEL CONTI 405/70R20MPT70E - Ref. 77-79

81

5153661305

TIRE CONTI 405/70R20MPT70E

82

5307643515

RIM E=55 13X20

83

5153643505

VALVE

84

6461794500

WHEEL MICHELIN 405/70 R20XM27 143B T - Ref. 85-87

85

5153658391

TIRE MICHELIN 405/70 R20XM27 143B T

86

5307643528

RIM E=58 11X20

87

5153643505

VALVE

88

WHEEL NLA - DUNLOP153 A2405/70R18EM TL - Ref. 89-97 - Order 5153660130 wheel, 5153643505 valve & 5307656041 rim - Was 6338996000 - A

89

5153660130

TIRE 153 A2405/70R18EM TL

90

5307656041

RIM E=75 13X18

91

5153643505

VALVE

92

6338993000

WHEEL 12.5 -18 E91-2 MPT NYTL10PR - Ref. 93-95

93

5153632100

TIRE 12.5 -18 E91-2 MPT NYTL10PR

94

5307656032

RIM E=4011X18

95

5153643505

VALVE

96

6338997500

WHEEL DUNLOP365/70R18TL SPT9 - Ref. 97-99

97

5153661145

TIRE 365/70R18TL SPT9

98

5307656032

RIM E=40 11X18

99

5153643505

VALVE

100

6461795000

WHEEL D.16/70-20 EM E91/2 TL 10PR - Ref. 101-103

101

5153643500

TIRE D.16/70-20 EM E91/2 TL 10PR

102

5307643515

RIM E=55 13X20

103

5153643505

VALVE

105

6338995000

WHEEL 15.5/55R18MPTPG7 134E 14PRTL - Ref. 106-108

106

5153628250

TIRE 15.5/55r18mptpg7 134e 14prtl

107

5307656032

RIM E=40 11X18

108

5153643505

VALVE

109

6452295600

WHEEL 405/70 R20 PG75R - Ref. 110-112

110

5153661363

TIRE 405/70 R20 PG75R

111

5307643515

RIM E=55 13X20

112

5153643505

VALVE

113

6452298500

WHEEL MITAS 405/70 R 18 EM01 - Ref. 114-116

114

5153665018

TIRE MITAS 405/70 R 18 EM01

115

5307656041

RIM E=70 13X18

116

5153643505

VALVE

117

5904658832

VALVE, BLEEDING
