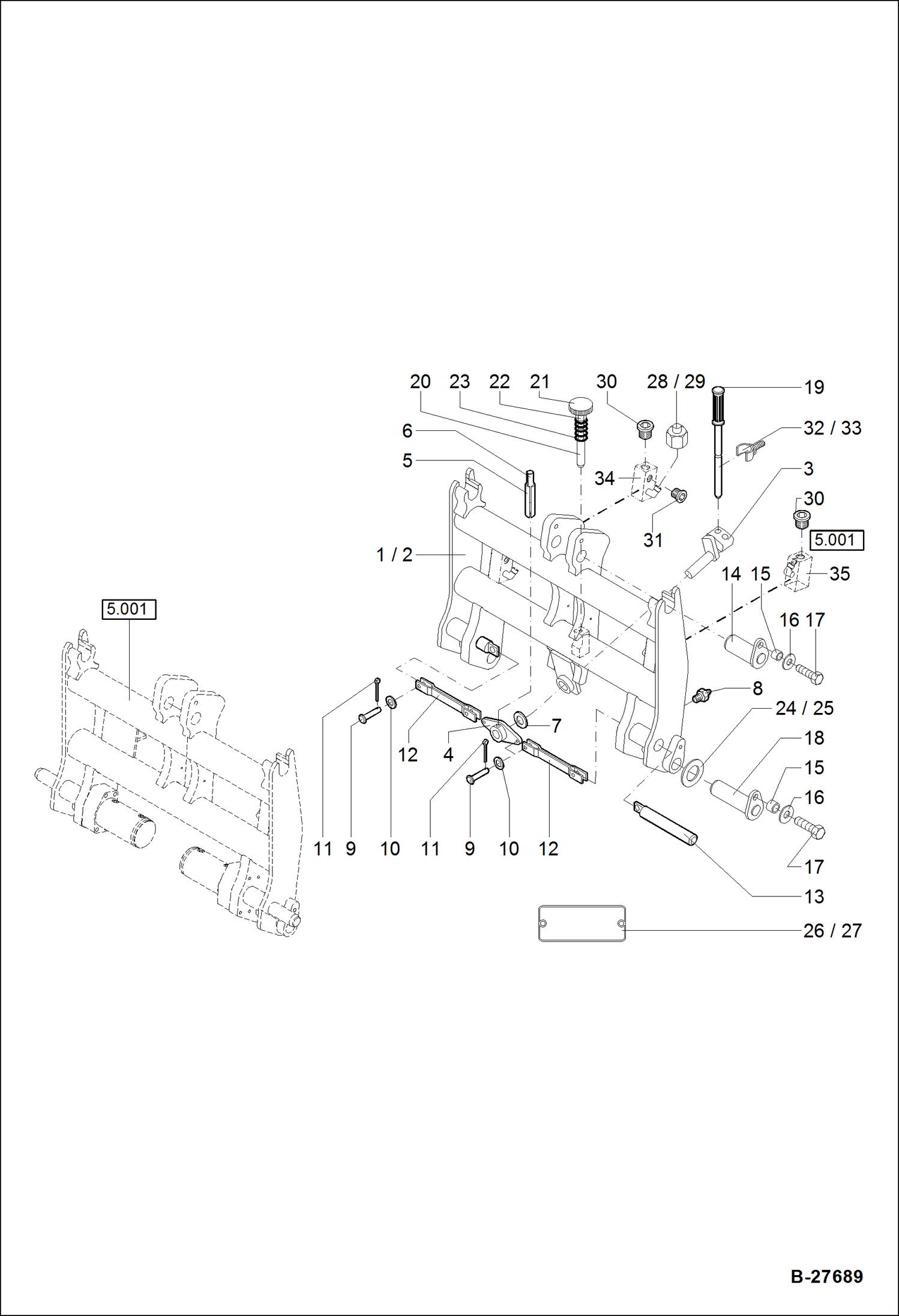

Запчасти Bobcat WL350 MECHANIC QUICK MOUNT HITCH MAIN FRAME

1

6452103000

DEVICE, QUICK FIT CPL Ref. 1-27

2

6405103002

FRAME,HITCH QUICK MT W/Ref. 34 & 35 - Was 6452103002 - A

3

6460603033

CONTROL LEVER

4

6337103040

LOCK

5

1380622242

PIN ROLL

6

1380622832

PIN ROLL

7

1309412125

WASHER 30X42X2

8

1607003006

GREASE NIPPLE

9

1360707030

PIN

10

1290707022

WASHER 13

11

1395707317

COTTER PIN

12

6337103036

FLAP

13

0337103030

PIN

14

0145011120

PIN Was 6145011120 - A

15

0333023033

SPACER BUSHING

16

1343707061

WASHER 13

17

1008707529

BOLT M 12X25

18

0337103033

PIN

19

6333203016

LEVER

20

0336103050

THREADED ROD

21

1227707009

KNURLED NUT M 6

22

1210707009

NUT M 6

23

5064607200

SPRING

24

1309412815

SHIM 50X75X1

25

1309412926

SHIM 50X75X2

26

PLATE, NAME NLA

27

1940000739

RIVET

28

1911060156

UNION NUT

29

1912060356

PLUG

30

1912060105

PLUG

31

1912060102

PLUG

32

5660199782

PIPE CLIP

33

1103707324

BOLT

34

6332806104

DISTRIBUTION RIGHT

35

6332806105

DISTRIBUTION LEFT
